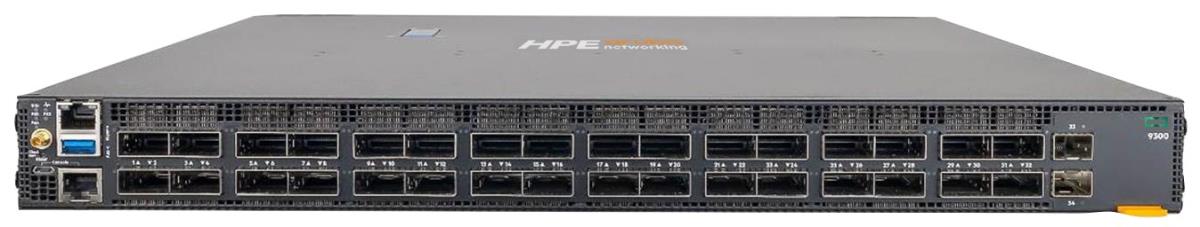

Aruba Networking CX 9300-32D 32p QSFP-DD 2p 10G SFP+ Back-to-Front 6 Fans 2 AC PSU Bundle
ITCurry #: 1171ASZ4 | Article #: R9A30A-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The HPE Aruba Networking CX 9300 Switch Series provides 25.6 Tbps, 1U fixed configuration that supports 32 ports of 100/400GbE. This series is designed to provide flexible, cost-effective, high-density 400GbE for servers, storage, and intra-fabric connectivity. The HPE Aruba Networking CX 9300 Switch Series protects enterprises’ investment as it transitions server farms from 10GbE and 25GbE to 100GbE/400GbE EVPN-VXLAN spine configurations, with reduced power and a smaller footprint. The CX 9300-32D switch supports large data center PODS of up to 16834 x 25GbE servers or up to 8192 x 100GbE servers when using 4 x 100G SN transceivers.
What is new supporting point:
HPE Aruba Networking Fabric Composer greatly simplifies the automation, orchestration, and end-to-end visibility of the network fabric underlay and virtualized overlay.
Dynamic VXLAN with BGP-EVPN for deep segmentation in data center and campus networks
The switch series provides high performance switching up to 25.6 Tbps in a 1U fixed configuration supporting 32 ports of 100/400GbE
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF-Lite, and IPv6
HPE Aruba Networking CX 9300 Switch Series is based on AOS-CX, a modern, database-driven operating system that automates and simplifies many critical and complex network tasks
The CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G back-to-front and front-to-back bundles along with new compatible transceivers and power supply options
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L3 |
| Quality of Service (QoS) | Ja |
| Cloud-beheerd | Ja |
| Poorten & interfaces | |
| Aantal moduleslots SPF+ | 2 |
| Fibre channel-poorten | 32 |
| Vezel-optische connector | QSFP-DD |
| Console port | RJ-45/Micro-USB |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ak, IEEE 802.3ba, IEEE 802.3bs, IEEE 802.3by, IEEE 802.3cd, IEEE 802.3x, IEEE 802.3z |
| 10G support | Ja |
| Port mirroring | Ja |
| Datastroombeheer | Ja |
| Verbindingsaggregatie | Ja |
| Spanning tree protocol | Ja |
| VLAN=ondersteuning | Ja |
| Virtuele LAN-functies | Private VLAN |
| Aantal VLANs | 4040 |
| Data-uitwisseling | |
| Switchingcapaciteit | 25600 Gbit/s |
| Throughput | 5000 Mpps |
| MAC-adrestabel | 81920 entries |
| Statische route | Ja |
| Jumbo Frames ondersteuning | Ja |
| Packet buffergeheugen | 132 MB |
| Beveiliging | |
| DHCP-functies | DHCP relay, DHCP server |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| SSH/SSL support | Ja |
| Authenticatie type | RADIUS, TACACS+ |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| IPv4-multicast-vermeldingen | 8000 |
| IPv6-multicast-vermeldingen | 8000 |
| MLD-vermeldingen | 4000 |
| Protocollen | |
| Beheerprotocollen | SNMPv2c, SNMPv3 |
| Routing protocols | BGP4, OSPF, RIP, RIPng, RIP-2 |
| Design | |
| Rack-montage | Ja |
| Vormfactor | 1U |
| Overtollige fans ondersteuning | Ja |
| Luchtstroomrichting | Luchtstroom achter-naar-voor |
| Aantal ventilatoren | 6 ventilator(en) |
| Prestatie | |
| Type processor | Ja |
| Frequentie van processor | 1700 MHz |
| Intern geheugen | 32000 MB |
| Energie | |
| Stroombron | AC |
| Vermogenstoevoer inclusief | Ja |
| Redundante voeding | Ja |
| Aantal voedingen | 2 |
| AC-ingangsspanning | 220 - 240 V |
| AC-ingangsfrequentie | 50/60 Hz |
| Vermogensverbruik (max) | 615 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 45 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 15 - 95 procent |
| Luchtvochtigheid bij opslag | 15 - 90 procent |
| Hoogte, in bedrijf | 0 - 3000 m |
| Hoogte bij opslag | 0 - 4600 m |
| Warmtedissipatie | 4,435 BTU/h |
| Gewicht en omvang | |
| Breedte | 43,5 mm |
| Diepte | 438,4 mm |
| Hoogte | 590 mm |
| Gewicht | 11,8 kg |
| Certificaten | |
| Certificaten van naleving | Amerikaanse Federale wet inzake handelsovereenkomsten (TAA) |
| Warranty | |
| Base Warranty | Non Non |
