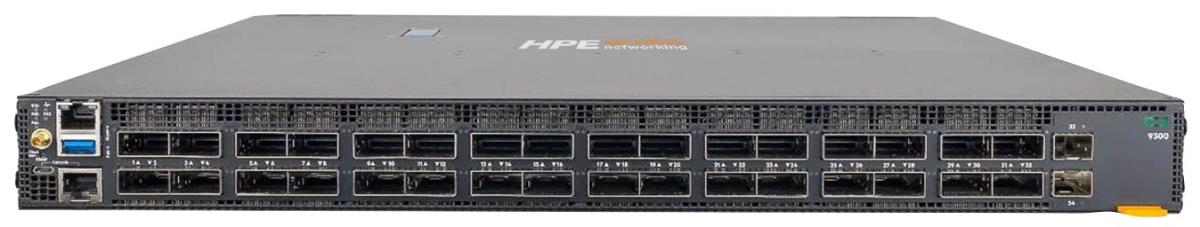

Aruba Networking CX 9300-32D 32-port 100/200/400G QSFP-DD 2-port 10G Switch
ITCurry #: 1171ASZ3 | Article #: R8Z96A-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The HPE Networking CX9300 Switch Series provides 25.6 Tbps, 1U fixed configuration that supports 32 ports of 100/400GbE. This series is designed to provide flexible, cost-effective, high-density 400 GbE for servers, storage, and intra-fabric connectivity. The HPE Networking CX9300 Switch Series protects enterprises’ investment as it transitions server farms from 10 GbE and 25 GbE to 100 GbE/400GbE EVPN-VXLAN spine configurations, with reduced power and a smaller footprint. The CX9300-32D switch supports large data center PODS of up to 16834x 25 GbE servers or up to 8192x 100 GbE servers when using 4x 100G SN transceivers.
What is new supporting point:
HPE Networking Fabric Composer greatly simplifies the automation, orchestration, and end-to-end visibility of the network fabric underlay and virtualized overlay.
Dynamic VXLAN with BGP-EVPN for deep segmentation in data center and campus networks
The switch series provides high performance switching up to 25.6 Tbps in a 1U fixed configuration supporting 32 ports of 100/400GbE
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF-Lite, and IPv6
HPE Networking CX9300 Switch Series is based on OS-CX, a modern, database-driven operating system that automates and simplifies many critical and complex network tasks
The CX9300S 32p QSFP28 100G 8p QSFP-DD 400G back-to-front and front-to-back bundles along with new compatible transceivers and power supply options
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L3 |
| Quality of Service (QoS) | Ja |
| Cloud-beheerd | Ja |
| Poorten & interfaces | |
| Aantal moduleslots SPF+ | 2 |
| Fibre channel-poorten | 32 |
| Vezel-optische connector | QSFP-DD |
| Console port | RJ-45/micro-USB |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w |
| 10G support | Ja |
| Port mirroring | Ja |
| Datastroombeheer | Ja |
| Verbindingsaggregatie | Ja |
| Spanning tree protocol | Ja |
| VLAN=ondersteuning | Ja |
| Virtuele LAN-functies | Private VLAN |
| Aantal VLANs | 4040 |
| Data-uitwisseling | |
| Switchingcapaciteit | 25600 Gbit/s |
| Throughput | 5000 Mpps |
| Statische route | Ja |
| Jumbo Frames ondersteuning | Ja |
| Beveiliging | |
| DHCP-functies | DHCP relay, DHCP server |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| SSH/SSL support | Ja |
| Authenticatie type | RADIUS, TACACS+ |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| Protocollen | |
| Beheerprotocollen | SNMP v2c, SNMP v3, RMON |
| Routing protocols | BGP4, OSPF, RIP, RIPng, RIP-2 |
| Design | |
| Rack-montage | Ja |
| Vormfactor | 1U |
| Prestatie | |
| Type processor | Ja |
| Frequentie van processor | 1700 MHz |
| Intern geheugen | 32000 MB |
| Energie | |
| AC-ingangsspanning | 220 - 240 V |
| Vermogensverbruik (max) | 600 W |
| Energieverbruik opmerking | 100% Traffic Rate: 688W Idle: 221W |
| Netvoeding voetnoot | 2 redundant power supplies, field-replaceable, hot-swappable |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Overige specificaties | |
| Geheugen en processor | 128 GB m.2 SSD, 4 GB mSATA, 128 MB SPI Flash, 16 GB x2 SODIMM |
| Aansluitingen | 32 ports of 100 GbE, 200 GbE, or 400 GbE 400 Gbps ports can be configured as 4x 100 GbE, 2x 200 GbE, or 1x 400 GbE |
| Prestatiebeheer | SNMP REST RJ-45 serial Micro USB console port RJ-45 OOBM Port |
| Gewicht (imperiaal) | 11,8 kg (26.1 lbs) |
| Afmetingen (B x D x H) (Brits) | 43,4 x 438,4 x 590 mm (1.71 x 17.3 x 23.2") |
| Fan | 6 redundant fans, field-replaceable, hot-swappable |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 45 øC |
| Warmtedissipatie | 4,435 BTU/h |
| Gewicht en omvang | |
| Breedte | 43,5 mm |
| Diepte | 438,4 mm |
| Hoogte | 590 mm |
| Gewicht | 11,8 kg |
| Warranty | |
| Base Warranty | Non Non |
