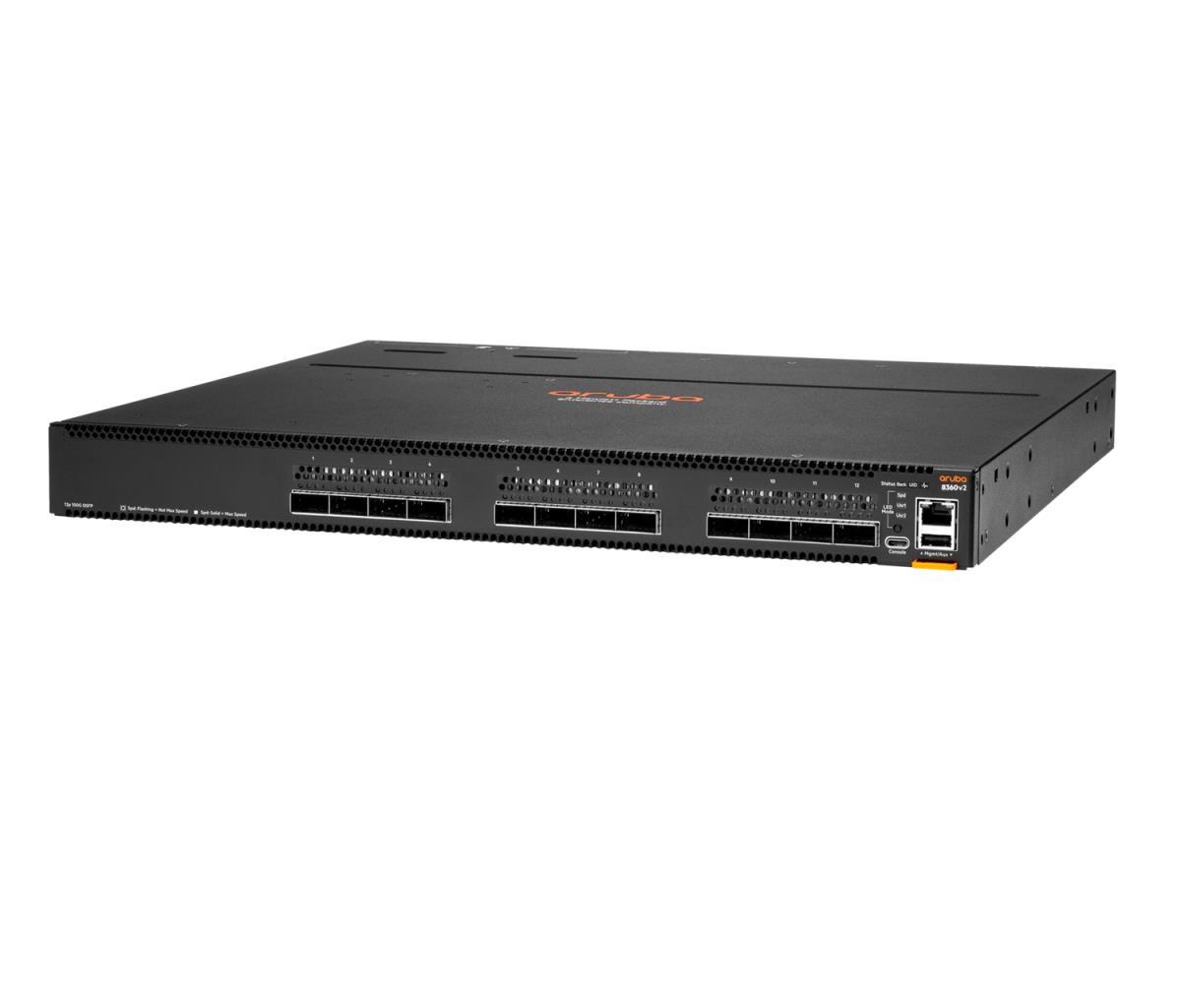

Aruba Networking 8360-12C v2 12-port 100G QSFP+/QSFP28 Back-to-Front 3 Fans 2 AC Bundle
ITCurry #: 1171AKK8 | Article #: JL709C-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The HPE Networking CX8360 Switch Series is designed for next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. The switch series provides up to 4.8 Tbps switching capacity, with line-rate Gigabit Ethernet interfaces including support for HPE Smart Rate (1/2.5/5 Gbps), 10 Gbps, 25 Gbps, 40 Gbps, 50 Gbps, and 100 Gbps connectivity in a compact 1U form factor. These switches deliver a fantastic investment for customers wanting to migrate from older 1/10GbE to faster 25 GbE, or from 10/40GbE uplinks to 50/100GbE ports. In addition, the 48 and 32x 25G port CX8360 v2 models support low-density MACsec ports and enable secured connectivity at 10 GbE and 25 GbE over unsecured domains. MACsec is also supported on 2 high-speed 40/100G ports on the CX8360 48-port model.
What is new supporting point:
High performance fully distributed architecture provides up to 4.8 Tbps switching and 1786 Mpps for forwarding
48-port 1/10/25G with 4 MACsec, 6-port of 40/100G with 2 MACsec (MACsec secured connectivity over untrusted domains)
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, EVPN, VXLAN and IPv6
The CX8360 48 and 32x 25G port models support low-density MACsec ports and enable secured connectivity at 10 GbE and 25 GbE over unsecured domains
High availability with industry-leading HPE Networking Virtual Switching Extension (VSX) redundancy and redundant power supplies and fans
Intelligent monitoring and visibility are delivered by the Network Analytics Engine (NAE)
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L3 |
| Quality of Service (QoS) | Ja |
| Poorten & interfaces | |
| Aantal GSFP+-moduleslots | 12 |
| Vezel-optische connector | QSFP+, QSFP28 |
| Console port | RJ-45/USB Type-C |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3cd, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | Ja |
| Datastroombeheer | Ja |
| Verbindingsaggregatie | Ja |
| Spanning tree protocol | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 40000,100000 Mbit/s |
| VLAN=ondersteuning | Ja |
| Aantal VLANs | 4094 |
| Data-uitwisseling | |
| Switchingcapaciteit | 2400 Gbit/s |
| Throughput | 1309 Mpps |
| MAC-adrestabel | 212992 entries |
| Statische route | Ja |
| Jumbo Frames ondersteuning | Ja |
| Packet buffergeheugen | 32 MB |
| Beveiliging | |
| DHCP-functies | DHCP server |
| Access Control List (ACL) | Ja |
| Toegangsbeheerlijst (ACL) uitgaand | 8192 |
| Toegangsbeheerlijst (ACL) inkomend | 65536 |
| IGMP snooping | Ja |
| Ondersteunde beveiligingsalgoritmen | SNMPv2, SNMPv3 |
| Authenticatie type | RADIUS, TACACS+ |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| Protocollen | |
| Routing protocols | BGP4, MPLS, OSPF, RIP, RIPng, RIP-2 |
| IPv4- & IPv6-functies | IPv4/IPv6 access-control list (ACL) |
| Design | |
| Rack-montage | Ja |
| Vormfactor | 1U |
| Overtollige fans ondersteuning | Ja |
| Ventilatiesysteem | Luchtstroom achter-naar-voor |
| Luchtstroomrichting | Luchtstroom achter-naar-voor |
| Aantal ventilatoren | 3 ventilator(en) |
| Prestatie | |
| Type processor | Ja |
| Frequentie van processor | 1800 MHz |
| Type geheugen | RAM / Flash |
| Intern geheugen | 16384 MB |
| Flash memory | 32000 MB |
| Energie | |
| Stroombron | AC |
| Vermogenstoevoer inclusief | Ja |
| Redundante voeding | Ja |
| Aantal voedingen | 2 |
| AC-ingangsspanning | 200 - 240 V |
| AC-ingangsfrequentie | 47/63 Hz |
| Vermogensverbruik (max) | 325 W |
| Energieverbruik opmerking | Maximum: 325W Idle: 120W |
| Netvoeding voetnoot | 2 field-replaceable and hot-swappable power supplies depending on the model |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Overige specificaties | |
| Geheugen en processor | CPU: 1.8 GHz 4-core 64-bit RAM: 16 GB Flash/Storage: 32 GB Packet Buffer: 32 MB |
| Aansluitingen | 12-port of 40/100GbE (QSFP+/ QSFP28) (optional 4x 10/25G breakout cables supported) |
| Prestatiebeheer | RJ45 serial and USB-C console RJ45 Ethernet port USB-Type A |
| Gewicht (imperiaal) | 8,01 kg (17.6 lbs) |
| Fan | 3 field-replaceable and hot-swappable fans |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 15 - 95 procent |
| Luchtvochtigheid bij opslag | 15 - 95 procent |
| Warmtedissipatie | 1,28 BTU/h |
| Gewicht en omvang | |
| Breedte | 44 mm |
| Diepte | 44,2 mm |
| Hoogte | 406 mm |
| Gewicht | 8,01 kg |
| Warranty | |
| Base Warranty | Non Non |
