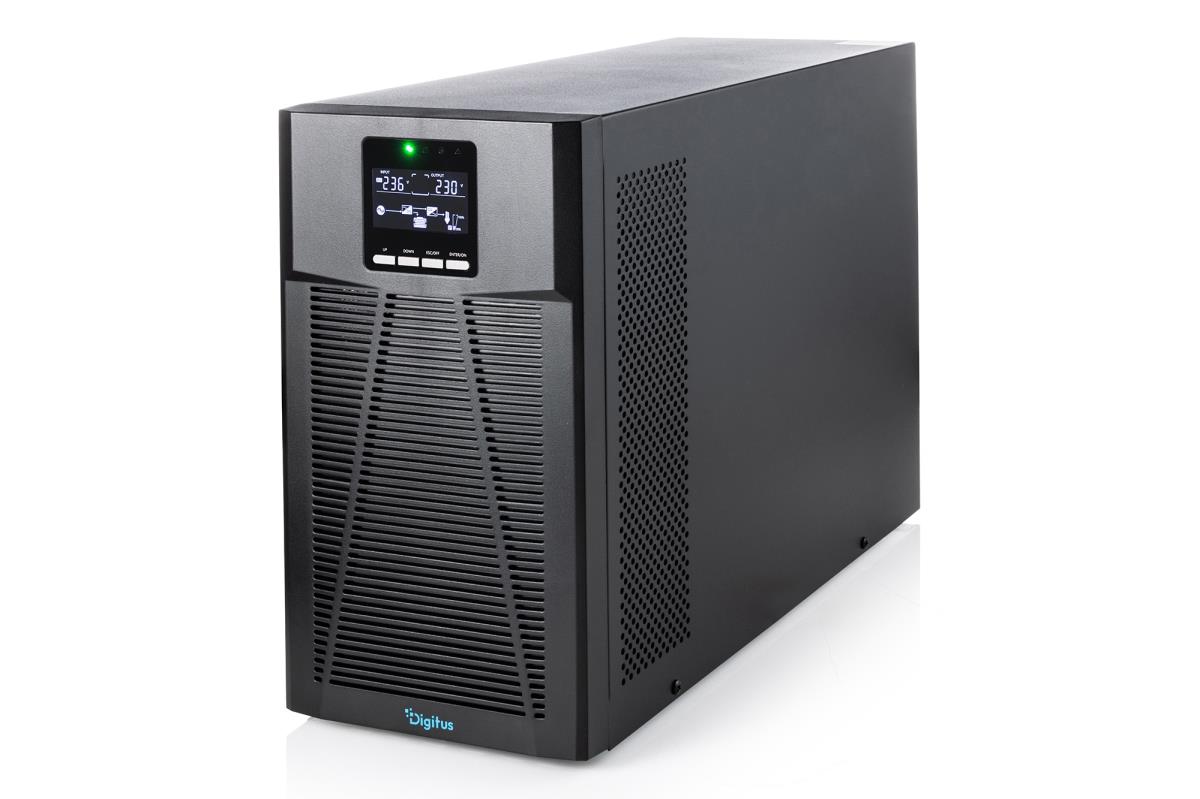

OnLine Tower UPS Module - 2000VA/2000W 12V/9Ah x 4 battery, 8x C13, LCD-Display
ITCurry #: M923A023 | Article #: DN-170131-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The OnLine UPS is an ideal backup solution for your demanding power requirements and offers high reliability in various industrial applications.
- Uninterruptible power supply with 0 ms switching time
- Pure sine wave output voltage with high voltage stability to protect sensitive devices from interference and malfunctions
- Space-saving solution with high performance - ideal for small server rooms and business environments
- Wide input voltage range reduces battery operation and increases the service life of the batteries in unstable electrical conditions
- Optimized charging management for longer battery life and faster recovery after power outages
The DIGITUS® OnLine UPS systems reliably protect your business-critical applications from power failures, voltage fluctuations and mains interference - and thus ensure smooth operation. The OnLine double conversion technology continuously stabilizes the power supply and completely decouples it from interference from the mains. Your connected devices receive a consistently high-quality and reliable power supply at all times - regardless of the quality of the power grid. In the event of a power failure, the UPS reacts immediately and without interruption. This keeps your systems protected and ready for operation, while allowing sufficient time for a controlled shutdown. This minimizes risks, prevents data loss and protects your valuable hardware. With its compact tower design, the UPS can be flexibly integrated into a wide variety of environments - whether in the office, server room or in professional infrastructures. Its high performance and space-saving design make it the ideal choice for modern working environments. An integrated display and various interfaces enable easy integration into existing systems as well as convenient monitoring and control. In combination with a robust design and reliable technology, it offers a long-term solution for maximum operational reliability.
| Kenmerken | |
| UPS-topologie | Dubbele conversie (online) |
| Output power capacity | 2 kVA |
| Uitgangsvermogen | 2000 W |
| Golfvorm | Zuivere sinus |
| Ingang operation voltage (min) | 110 V |
| Ingang operation voltage (max) | 300 V |
| Frequentie | 40 - 70 Hz |
| Uitgang operation voltage (min) | 208 V |
| Uitgang operation voltage (max) | 240 V |
| Output frequentie | 50/60 Hz |
| Uitgangsspanningsregeling | 1 procent |
| Responstijd | 4 ms |
| Efficientie | 91 procent |
| Effici‰ntie (ECO-modus) | 96 procent |
| Power factor | 1 |
| Crest factor | 3:1 |
| Output voltage THD | 3 procent |
| Geluidsniveau | 50 dB |
| Stroomspanning bescherming | Kortsluiting, Overbelasting, Oververhitting, Overbelasting, Batterij-ontlading, Onder spanning |
| Geluidsalarm(en) | Ja |
| Poorten & interfaces | |
| Stopcontacttypes | C13 stekker |
| Stekker | C20 stekker |
| Aantal AC uitgangen | 8 AC-uitgang(en) |
| Aantal USB 2.0-poorten | 1 |
| Seri‰le interface | Ja |
| RS-232 port | 1 |
| Accu/Batterij | |
| Batterijtechnologie | Sealed Lead Acid (VRLA) |
| Batterij capaciteit | 9 Ah |
| Accu/Batterij voltage | 12 V |
| Aantal batterijcellen | 4 |
| Accu/Batterij oplaadtijd | 4 uur |
| Laadstroom | 2 A |
| Koude start | Ja |
| Design | |
| Vormfactor | Tower |
| Kleur van het product | Zwart |
| Display-type | LCD |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -25 - 55 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 20 - 95 procent |
| Hoogte, in bedrijf | 0 - 1000 m |
| Inhoud van de verpakking | |
| Meegeleverde kabels | USB-kabel, RS-232, Stroombelastingskabel |
| Snelle installatiehandleiding | Ja |
| Gewicht en omvang | |
| Breedte | 191 mm |
| Diepte | 460 mm |
| Hoogte | 337 mm |
| Gewicht | 10 kg |
| Verpakking | |
| Breedte verpakking | 275 mm |
| Diepte verpakking | 563 mm |
| Hoogte verpakking | 446 mm |
| Gewicht verpakking | 21,5 kg |
| Type verpakking | Doos |
| Logistieke gegevens | |
| Code UK-handelstarief | 85044095 |
| Land van herkomst | China |
| Warranty | |
| Base Warranty | Non Non |
