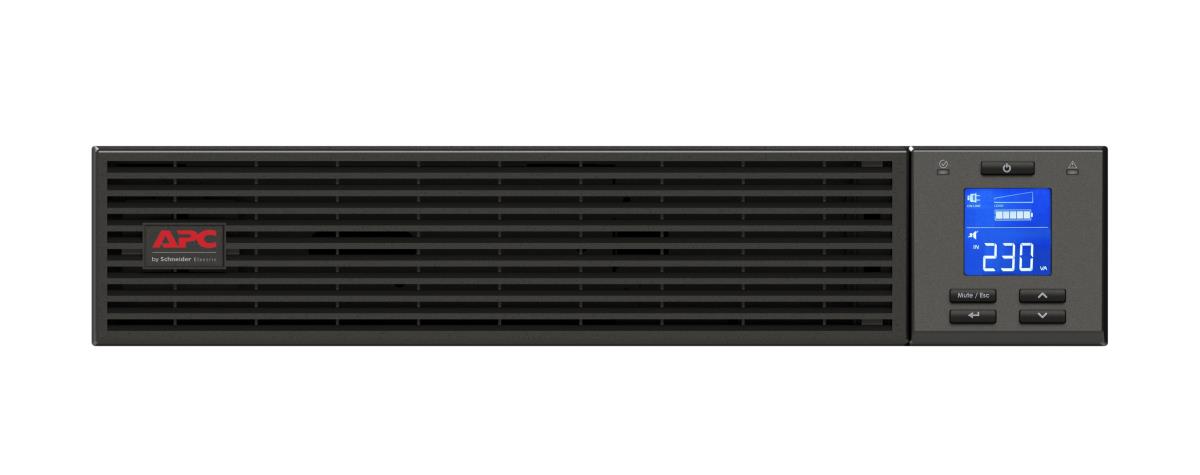

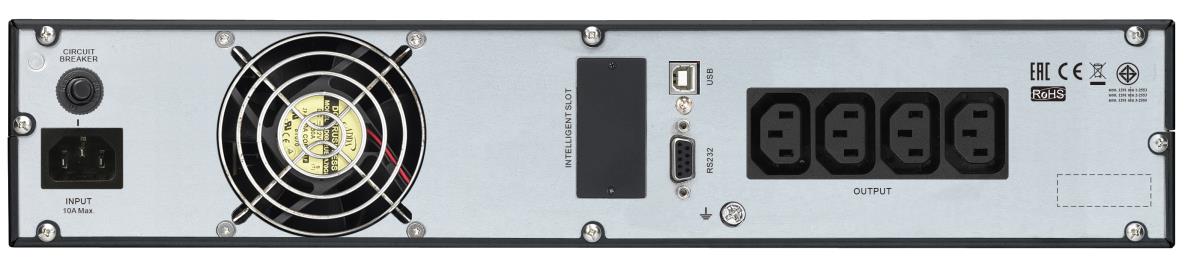

Easy UPS On-Line SRV RM 2000 VA 230V with Rail Kit
ITCurry #: 0280J044 | Article #: SRV2KRIRK-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
LCD display
Alpha-Numeric Display which displays system parameters and alarms.
Serial connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Features
Management Software
Allows you to easily monitor your utility power and manage your UPS.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
High efficiency
High efficiency rates that remain stable even at lower operating power levels.
SmartSlot
Customize UPS capabilities with management cards.
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Double conversion on-line topology
Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Wide input voltage range
Designed for harsh electrical environments to save battery life.
Serviceability
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Audible alarms
Provides notification of changing utility power and UPS power conditions.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Predicitive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.
Manageability
Serial connectivity
Provides management of the UPS via a serial port.
SmartSlot
Customize UPS capabilities with management cards.
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Network manageable
Provides remote power management of the UPS over the network.
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
Availability
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
| Kenmerken | |
| UPS-topologie | Dubbele conversie (online) |
| Output power capacity | 2 kVA |
| Uitgangsvermogen | 1600 W |
| Golfvorm | Sinus |
| Ingang operation voltage (min) | 160 V |
| Ingang operation voltage (max) | 280 V |
| Frequentie | 40/70 Hz |
| Uitgang operation voltage (min) | 220 V |
| Uitgang operation voltage (max) | 240 V |
| Output frequentie | 50/60 Hz |
| Uitgangsspanningsregeling | 1 procent |
| Surge energy rating | 600 J |
| Overdrachtstijd (Lijnmodus naar batterijmodus) | 0 ms |
| Aantal input fases | 1 |
| Aantal output fases | 1 |
| Efficientie | 88 procent |
| Input vermogensfactor | 0,95 |
| Output vermogensfactor | 0,8 |
| Crest factor | 3:1 |
| ECO mode | Ja |
| Emergency Power Off (EPO) | Nee |
| Output voltage THD | 3 procent |
| Geluidsniveau | 50 dB |
| Geluidsalarm(en) | Ja |
| Hoorbare alarmstanden | Alarm bij werking op batterij, Storing, Alarm bij laag batterijniveau, Alarm bij overbelasting |
| Auto-herstart | Ja |
| Onderhoudsvrij - geen olie nodig | Ja |
| Contactdoos circuitonderbreker | Ja |
| Poorten & interfaces | |
| Stopcontacttypes | C13 stekker |
| Aantal AC uitgangen | 4 AC-uitgang(en) |
| USB-poort | Ja |
| USB-poorttype | USB Type-B |
| Seri‰le interface | Ja |
| Seri‰le poort(en) | 1 |
| SmartSlot | Ja |
| Accu/Batterij | |
| Batterijtechnologie | Sealed Lead Acid (VRLA) |
| Accu/Batterij oplaadtijd | 4 uur |
| Automatische batterij test | Ja |
| Design | |
| Vormfactor | Rackmontage |
| Rackcapaciteit | 2U |
| Kleur van het product | Zwart |
| Type beeldscherm | LCD |
| LED-indicatoren | Ja |
| Certificering | CE, IEC 62040-1-1, IEC 62040-1-2 REACH |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -20 - 50 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Luchtvochtigheid bij opslag | 0 - 95 procent |
| Hoogte, in bedrijf | 0 - 3000 m |
| Technische details | |
| Certificaten van naleving | RoHS |
| Gewicht en omvang | |
| Breedte | 437 mm |
| Diepte | 462 mm |
| Hoogte | 86 mm |
| Gewicht | 18,2 kg |
| Breedte verpakking | 551 mm |
| Diepte verpakking | 599 mm |
| Hoogte verpakking | 142 mm |
| Gewicht verpakking | 20,7 kg |
| Verpakking | |
| Meegeleverde kabels | USB-kabel |
| Gebruikershandleiding | Ja |
| Software-cd | Ja |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85078000 |
| Overige specificaties | |
| Netspanning, in bedrijf | 230 V |
| Nominale input voltage | 230 V |
| Warranty | |
| Base Warranty | Non Non |
