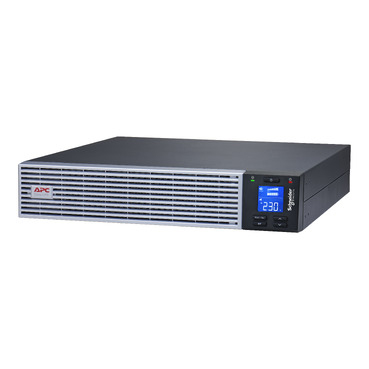

Easy UPS On-Line, 2000VA/1600W, Rackmount 2U, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD, W/ rail kit
ITCurry #: 0280M150 | Article #: SRVL2KRIRK-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2000VA double-conversion on-line lithium-ion 2U UPS provides pure sine wave power to support critical electronics during power disruptions. The SRVL comes with IEC 320 C20 input and 6x IEC 320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. With purchased Network Management Card and license, the UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The Emergency Power Off (EPO) function can remotely shut off the UPS in an emergency. It comes with a 5-year warranty. The SRVL comes with a easy-to-read 90 degree rotatable LCD display for detailed and accurate information on UPS status. This lithium-ion UPS is ideal for Surveillance, Co-working space, Healthcare IT, ATMs, Micro Data centers, and Server rooms.
| Kenmerken | |
| UPS-topologie | Dubbele conversie (online) |
| Output power capacity | 2 kVA |
| Uitgangsvermogen | 1800 W |
| Golfvorm | Sinus |
| Ingang operation voltage (min) | 110 V |
| Ingang operation voltage (max) | 300 V |
| Frequentie | 40 - 70 Hz |
| Uitgang operation voltage (max) | 230 V |
| Output frequentie | 50/60 Hz |
| Surge energy rating | 945 J |
| Warmtedissipatie | 683 BTU/h |
| Efficientie | 90 procent |
| Crest factor | 3:1 |
| ECO mode | Ja |
| Emergency Power Off (EPO) | Ja |
| Geluidsniveau | 50 dB |
| Geluidsalarm(en) | Ja |
| Hoorbare alarmstanden | Alarm bij laag batterijniveau, Alarm bij overbelasting |
| Type stroombron | AC |
| Afneembaar netsnoer | Ja |
| Poorten & interfaces | |
| Stopcontacttypes | C13 stekker |
| Stekker | C20 stekker |
| Aantal AC uitgangen | 6 AC-uitgang(en) |
| USB-poort | Ja |
| USB-poorttype | USB Type-B |
| Seri‰le interface | Ja |
| Soort serie‰le aansluiting | RS-232 |
| RS-232 port | 1 |
| Modem (RJ-11) poort | 1 |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Noodstop-aansluiting (EPO) | Ja |
| Accu/Batterij | |
| Batterijtechnologie | Lithium-Ion (Li-Ion) |
| Accu/Batterij voltage | 48 V |
| Typische backup tijd op volledige lading | 10,1 min |
| Acculevensduur (max) | 10 jaar |
| Accu/Batterij oplaadtijd | 1,5 uur |
| Design | |
| Vormfactor | Rackmontage/toren |
| Rackcapaciteit | 2U |
| Type koeling | Actief |
| Ingebouwde ventilator | Ja |
| Kleur van het product | Zwart |
| Soort bediening | Knoppen |
| Type beeldscherm | LCD |
| LED-indicatoren | Ja |
| Internationale veiligheidscode (IP) | IP20 |
| Eisen aan de omgeving | |
| Temperatuur bij opslag | -20 - 50 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Luchtvochtigheid bij opslag | 0 - 95 procent |
| Hoogte, in bedrijf | 0 - 3000 m |
| Hoogte bij opslag | 0 - 15000 m |
| Certificaten | |
| Certificaten van naleving | CE, RoHS, UKCA |
| Certificering | CB CE UKCA UN 38.3 IEC 62619 |
| Inhoud van de verpakking | |
| Rekbevestigingspakket | Ja |
| Meegeleverde kabels | Uitgangsstroomkabel, Telefoon (RJ-11), RJ-45, RS-232, USB-kabel |
| Gewicht en omvang | |
| Breedte | 438 mm |
| Diepte | 502 mm |
| Hoogte | 86 mm |
| Gewicht | 16,5 kg |
| Verpakking | |
| Breedte verpakking | 580 mm |
| Diepte verpakking | 650 mm |
| Hoogte verpakking | 240 mm |
| Gewicht verpakking | 22,7 kg |
| Warranty | |
| Base Warranty | Non Non |
