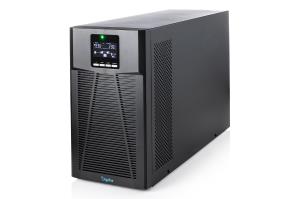

OnLine UPS Module 2000Va / 2000W
ITCurry #: M9239095 | Article #: DN-170095-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The OnLine UPS is an ideal backup solution for your demanding power requirements and ensures fail-safe operation in a variety of industrial applications.
- High power factor (1.0), a higher active power enables more connected loads, which saves space and reduces costs.
- High efficiency in online mode, higher efficiency means optimized energy management and lower heat dissipation, resulting in energy savings and improved reliability.
- User-friendly LCD screen provides insight into the UPS status for easy installation, configuration and operation.
- Compact rack/tower design optimizes installation space in the rack and enables flexible installation.
- Minimize device downtime with hot-swappable, user-replaceable battery modules that can be replaced during operation.
- External battery modules allow the runtime to be extended.
- High number of outlets (8 x C13) for optimum power distribution to the consumers.
- Various communication interfaces (RS232/USB, parallel port, SNMP slot) enable remote monitoring of the system.
- Automatic battery self-test and fan speed control increase the service life of the components.
- The REPO function (Remote Emergency Power Off) switches the UPS off in the event of an emergency. If an emergency occurs, the REPO switch turns off the rectifier and the inverter and immediately stops the power supply to the load. The UPS stops charging.
The DIGITUS® OnLine UPS is a double-conversion UPS solution that provides best-in-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when extended uninterruptible power is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and consistent power factor, the UPS meets your critical application needs.
| Kenmerken | |
| UPS-topologie | Dubbele conversie (online) |
| Output power capacity | 1,5 kVA |
| Uitgangsvermogen | 2000 W |
| Ingang operation voltage (min) | 208 V |
| Ingang operation voltage (max) | 240 V |
| Stroom (max.) | 10 A |
| Efficientie | 93 procent |
| Effici‰ntie (ECO-modus) | 98 procent |
| Power factor | 1 |
| Type stroombron | AC |
| Afneembaar netsnoer | Ja |
| Land van herkomst | China |
| Poorten & interfaces | |
| Stopcontacttypes | C13 stekker |
| Stekker | C20 stekker |
| Aantal AC uitgangen | 8 AC-uitgang(en) |
| USB-poort | Ja |
| USB-poorttype | USB Type-B |
| Soort serie‰le aansluiting | RS-232 |
| Seri‰le poort(en) | 1 |
| Aantal Ethernet LAN (RJ-45)-poorten | 2 |
| Noodstop-aansluiting (EPO) | Ja |
| Accu/Batterij | |
| Batterij capaciteit | 9 Ah |
| Accu/Batterij voltage | 12 V |
| Ondersteund aantal accu's/batterijen | 4 |
| Oplaadduur batterij | 4 uur |
| Design | |
| Vormfactor | Rackmontage |
| Type koeling | Actief |
| Ingebouwde ventilator | Ja |
| Kleur van het product | Zwart |
| Type beeldscherm | LCD |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -25 - 55 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 20 - 90 procent |
| Luchtvochtigheid bij opslag | 20 - 90 procent |
| Hoogte, in bedrijf | 0 - 1500 m |
| Gewicht en omvang | |
| Breedte | 440 mm |
| Diepte | 460 mm |
| Hoogte | 86,5 mm |
| Gewicht | 19,5 kg |
| Breedte verpakking | 555 mm |
| Diepte verpakking | 595 mm |
| Hoogte verpakking | 200 mm |
| Gewicht verpakking | 22,9 kg |
| Verpakking | |
| Rekbevestigingspakket | Ja |
| Meegeleverde kabels | RS-232, USB-kabel |
| Gebruikershandleiding | Ja |
| Verpakkingsvolume | 66705,5 cmü |
| Logistieke gegevens | |
| Code UK-handelstarief | 85044085 |
| Overige specificaties | |
| Maat | 48,3 cm (19") |
| Warranty | |
| Base Warranty | Non Non |
