TRIPP LITE Gigabit Singlemode Fiber to Ethernet Media Converter, 10/100/1000 SC, 1310 nm, 20km
ITCurry #: 57906394 | Article #: N785-INT-SC-SM-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Extend Your Gigabit Ethernet Signal up to 12.4 Miles via SC Singlemode Fiber Cable
This economical unit converts a copper Ethernet signal to singlemode fiber (and vice versa) to extend a Gigabit Ethernet connection up to 12.4 miles (20 kilometers). Because Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-INT-SC-SM with singlemode fiber cable to reach greater distances. This could include providing network connectivity to employees in a secluded area of a facility, college or branch office or connecting multiple office workstations to a switch located in a separate building.
Supports Auto-Sensing of Network Speed and Other Advanced Functions

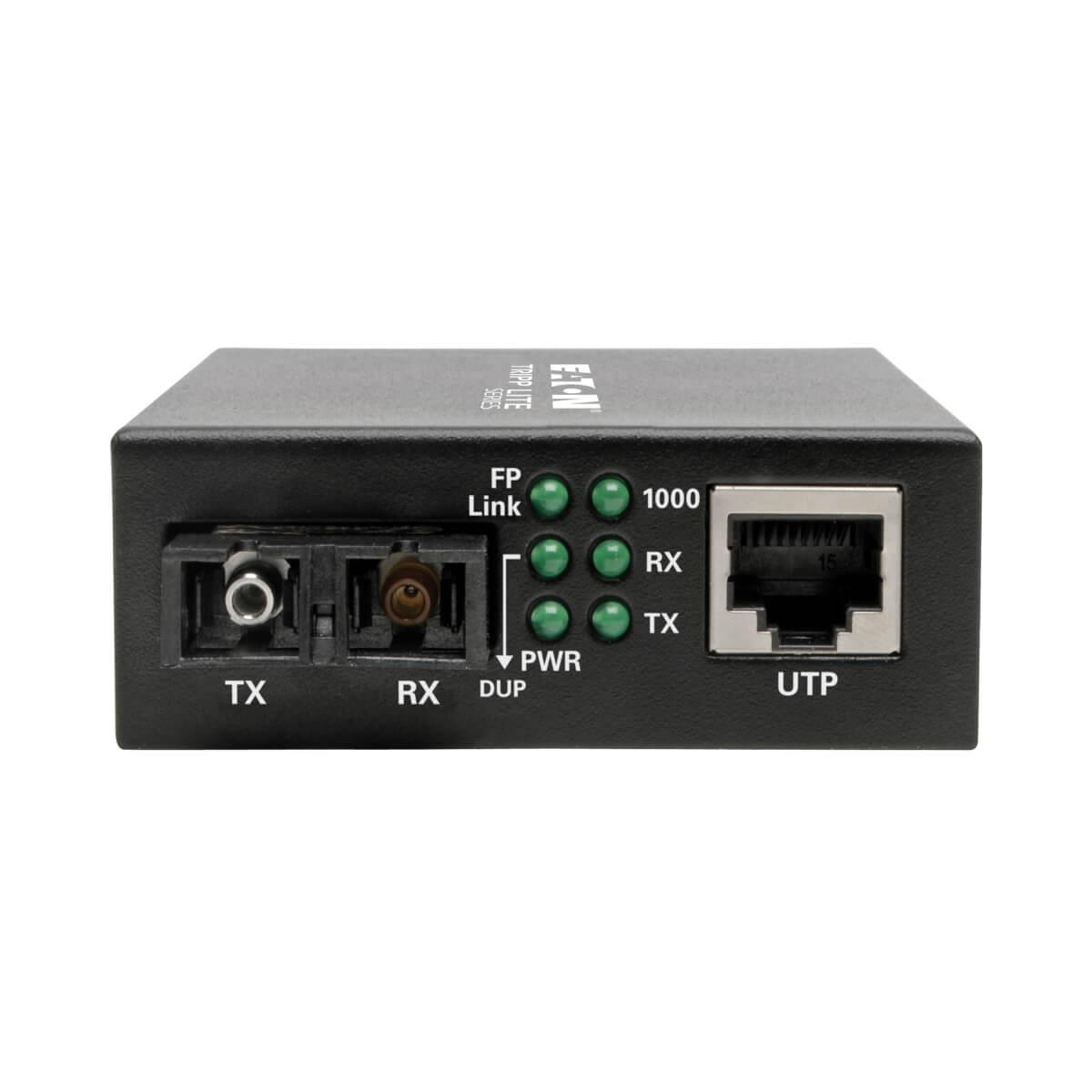

Monitoring and controlling your network nodes is easy with the N785-INT-SC-SM’s advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIZ configuration. Six LEDs indicate the converter’s Ethernet network and fiber link status at a glance.
Supports Singlemode Fiber Cable with SC Connectors
Two N785-INT-SC-SM converters are needed to extend an Ethernet network connection. Singlemode fiber optic cabling with SC ends (such as N356-Series, sold separately) connect the two converters. Copper Cat5e/6 cabling (see N201-Series, sold separately) connects one converter to your network device, such as a server, and the other converter to a network switch.
Completely Plug-and-Play with No Additional Software Required for Connection

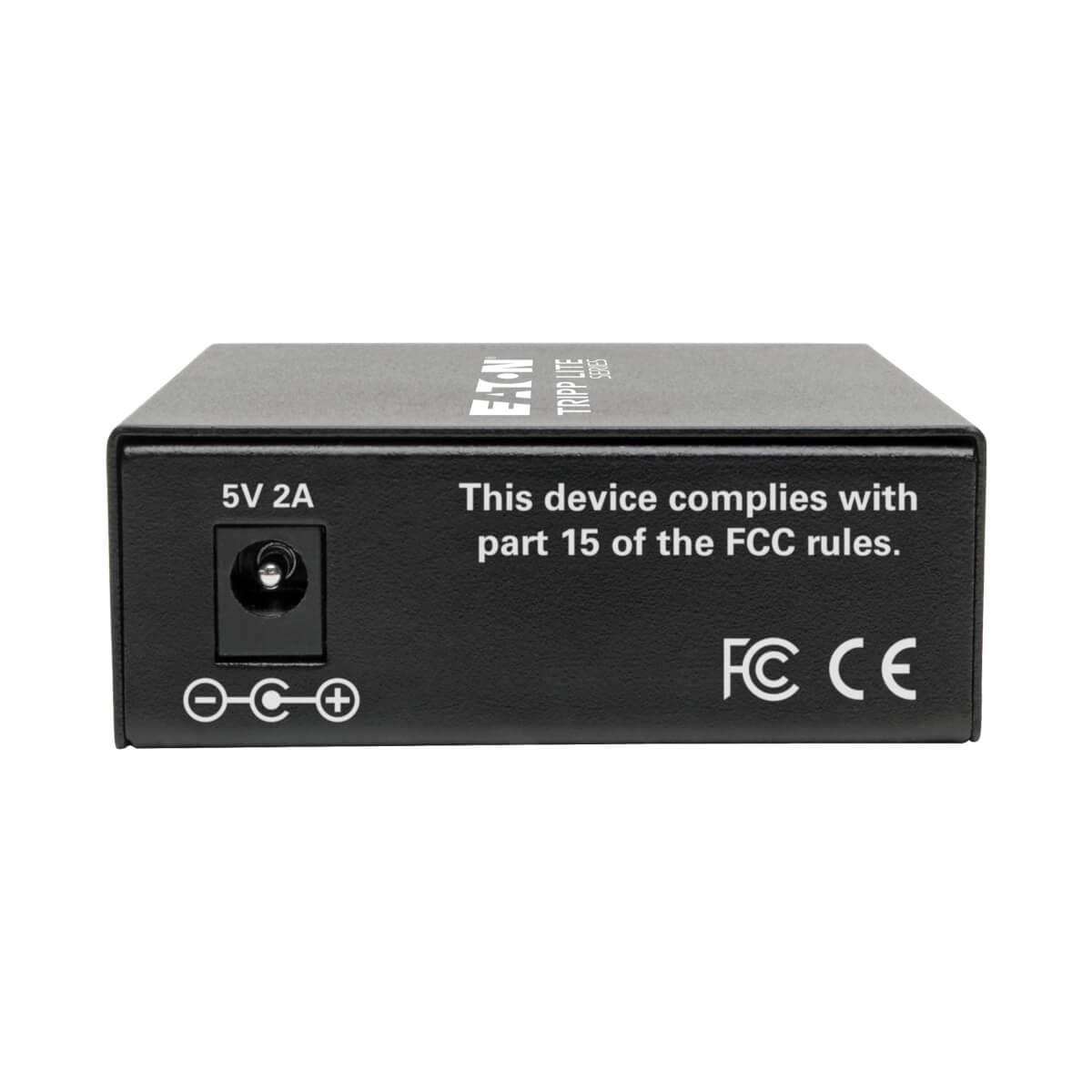

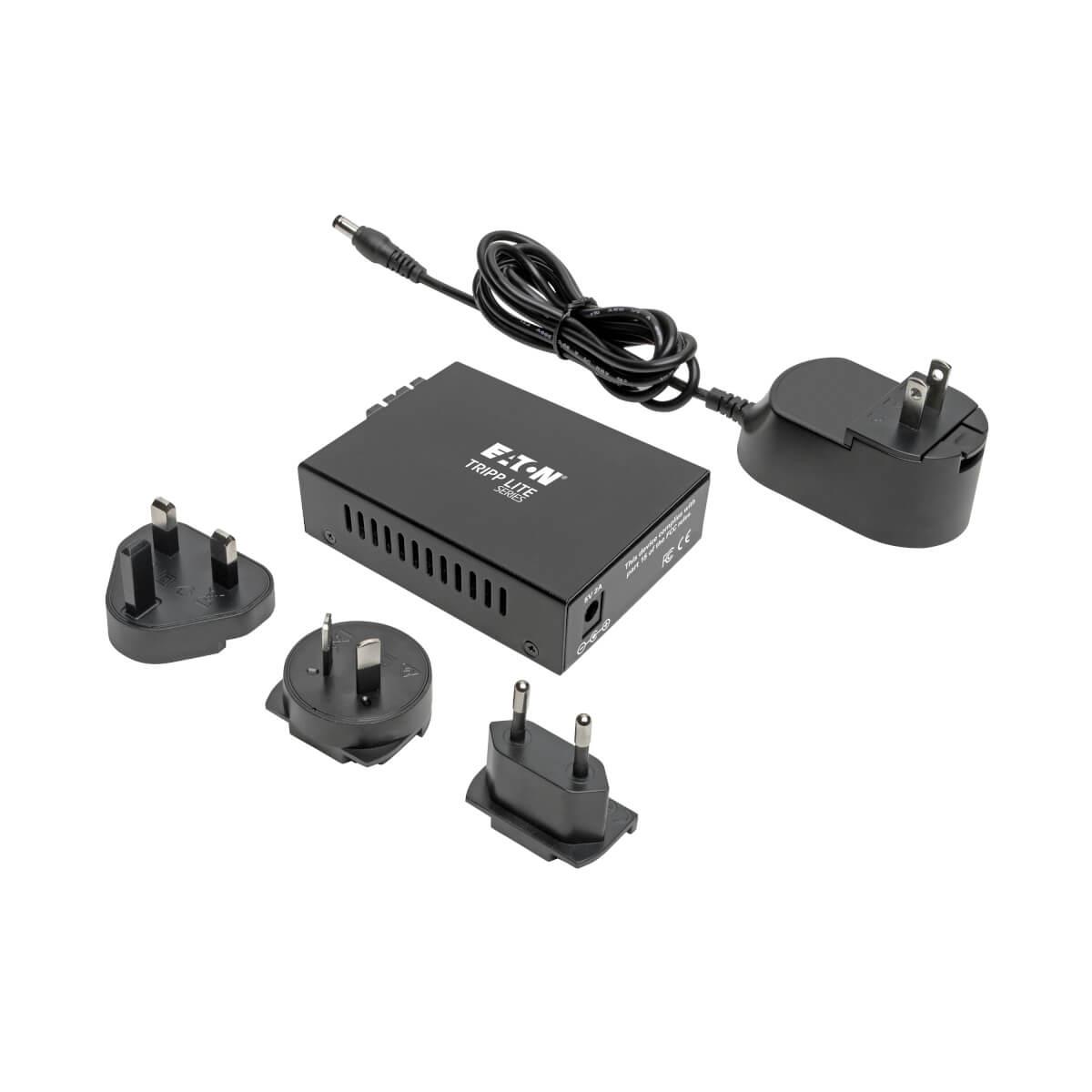

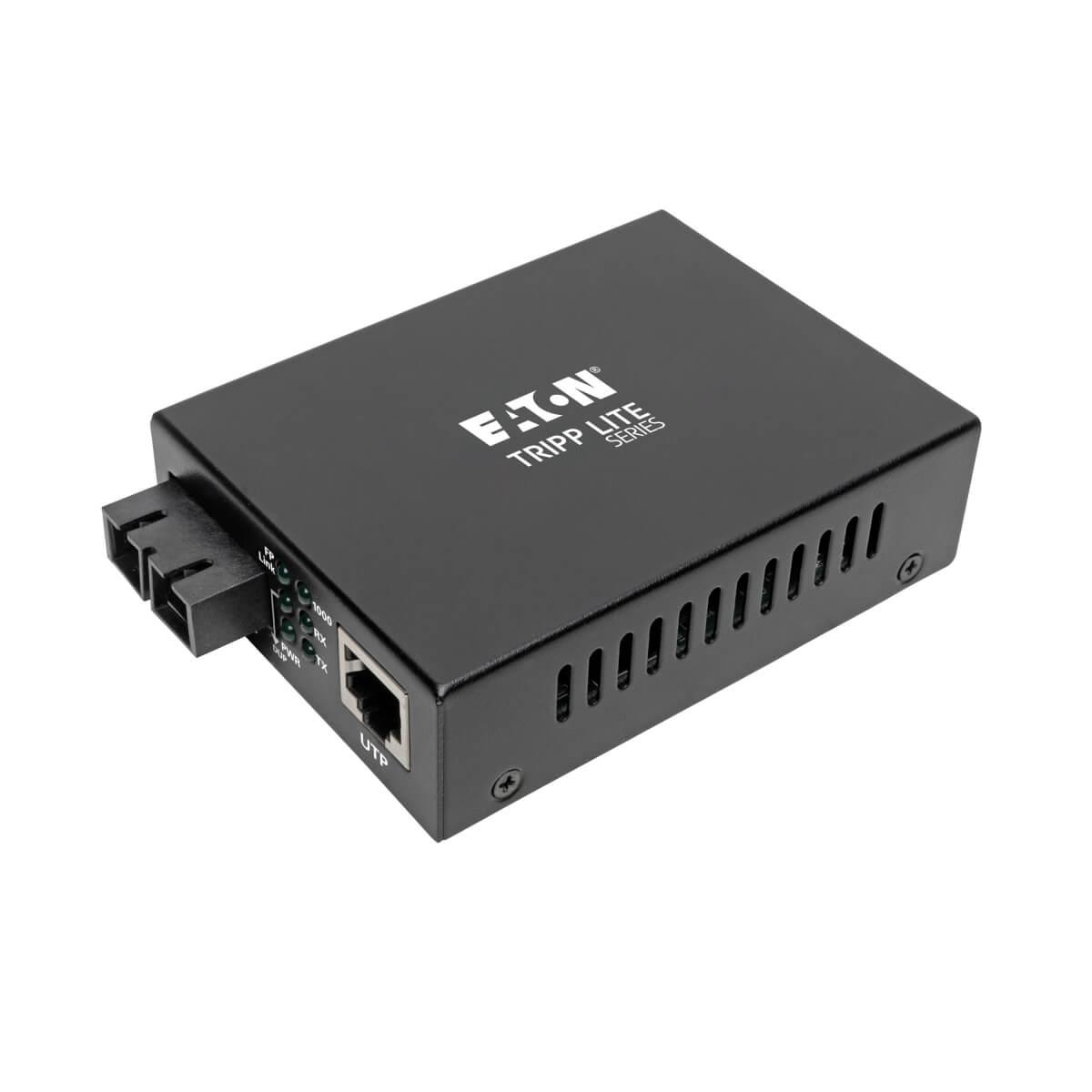

The compact metal converter is easy to install and set up with no software or drivers required. The included power supply connects to a convenient AC outlet with no computer or other signal source needed. International plug adapters for North America (NEMA 5-15P), the United Kingdom (BS 1363), Europe (CEE 7/16 Schuko) and Australia (AS/NZS 3112) are included.
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
| Cable types supported | Cat5, Cat5e, Cat6, Cat6a, Fiber |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| DC-in jack | Yes |
| Performance | |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Single-mode |
| Design | |
| Internal | No |
| LED indicators | Yes |
| Product colour | Black |
| Housing material | Metal |
| Country of origin | China |
| Power | |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.35 A |
| Output voltage | 5 V |
| Output current | 2 A |
| Weight & dimensions | |
| Width | 70.1 mm |
| Depth | 94 mm |
| Height | 25.9 mm |
| Weight | 200 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -20 - 70 øC |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging data | |
| Package width | 240 mm |
| Package depth | 130 mm |
| Package height | 55.1 mm |
| Package weight | 440 g |
| Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
| Technical details | |
| Sustainability certificates | RoHS |
| Master (outer) case GTIN (EAN/UPC) | 10037332236361 |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 304.8 mm |
| Master (outer) case length | 273 mm |
| Master (outer) case height | 254 mm |
| Master (outer) case gross weight | 4.58 kg |
| Products per master (outer) case | 10 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
