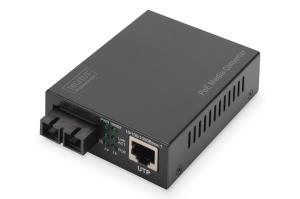

Gigabit PoE Media Converter Singlemode 10/100/1000Base-T 20km
ITCurry #: M9237647 | Article #: DN-82160-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The perfect converter solution for optical data transmission
- PoE power supplier, PSE
- Sends data with high quality and additionally offers the highest level of failure safety
- A fast transfer in the gigabit range is guaranteed
- Range of up to 20km
The media converters from DIGITUS® are an optimal solution for the migration of copper and fiber optic signals. From now on, you can access the fiber optic technology and transmit fiber optic signals over several kilometers without having to replace your entire network cabling. With our comprehensive range of products, you can respond to your individual needs. The intuitive operation guarantees a quick and easy installation. Many years of experience and a diverse range of services make DIGITUS® a reliable partner for your network technology.
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 100Base-TX, 1000Base-TX |
| Converter output interface | 1000Base-LX |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-TX |
| Fiber ethernet cabling technology | 1000BASE-LX |
| Data transfer rate | 1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
| Performance | |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Single-mode |
| Mean time between failures (MTBF) | 500000 h |
| Features | |
| Internal | No |
| LED indicators | Activity, Link, Power, Status |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power over Ethernet (PoE) ports quantity | 1 |
| DC-in jack | Yes |
| Power | |
| Output voltage | 48 - 52 V |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 30 W |
| Weight & dimensions | |
| Width | 71 mm |
| Depth | 95 mm |
| Height | 26 mm |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 65 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Packaging content | |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Packaging data | |
| Package width | 130 mm |
| Package depth | 240 mm |
| Package height | 60 mm |
| Package volume | 1872 cmü |
| Package weight | 800 g |
| Logistics data | |
| Country of origin | China |
| UK Trade Tariff code | 85176200 |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 410 mm |
| Master (outer) case length | 570 mm |
| Master (outer) case height | 280 mm |
| Master (outer) case gross weight | 8 kg |
| Master (outer) case volume | 65436 cmü |
| Products per master (outer) case | 10 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
