TRIPP LITE Gigabit Multimode Fiber to Ethernet Media Converter, 10/100/1000 SC, International Power Supply, 850 nm, 550 m (1,804 ft.)
ITCurry #: 57905824 | Article #: N785-INT-SC-MM-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Extends a Gigabit Ethernet Signal up to 550 m (1804 ft.) Using SC Multimode Cable
Converts UTP copper connection to duplex fiber over long distance, then back to copper at opposite end while auto-sensing the proper speed
Fiber optic technology more effective than Cat5e/6 over long distances
Supports 50/125 multimode fiber optic cabling up to 550 m
Supports 62.5/125 multimode fiber optic cabling up to 400 m
Connection requires an N785-INT-SC-MM at both ends
Advanced Monitoring and Control
Supports automatic sensing of network speed
Supports both full-duplex and half-duplex operation
Supports automatic MDI/MDI-X configuration

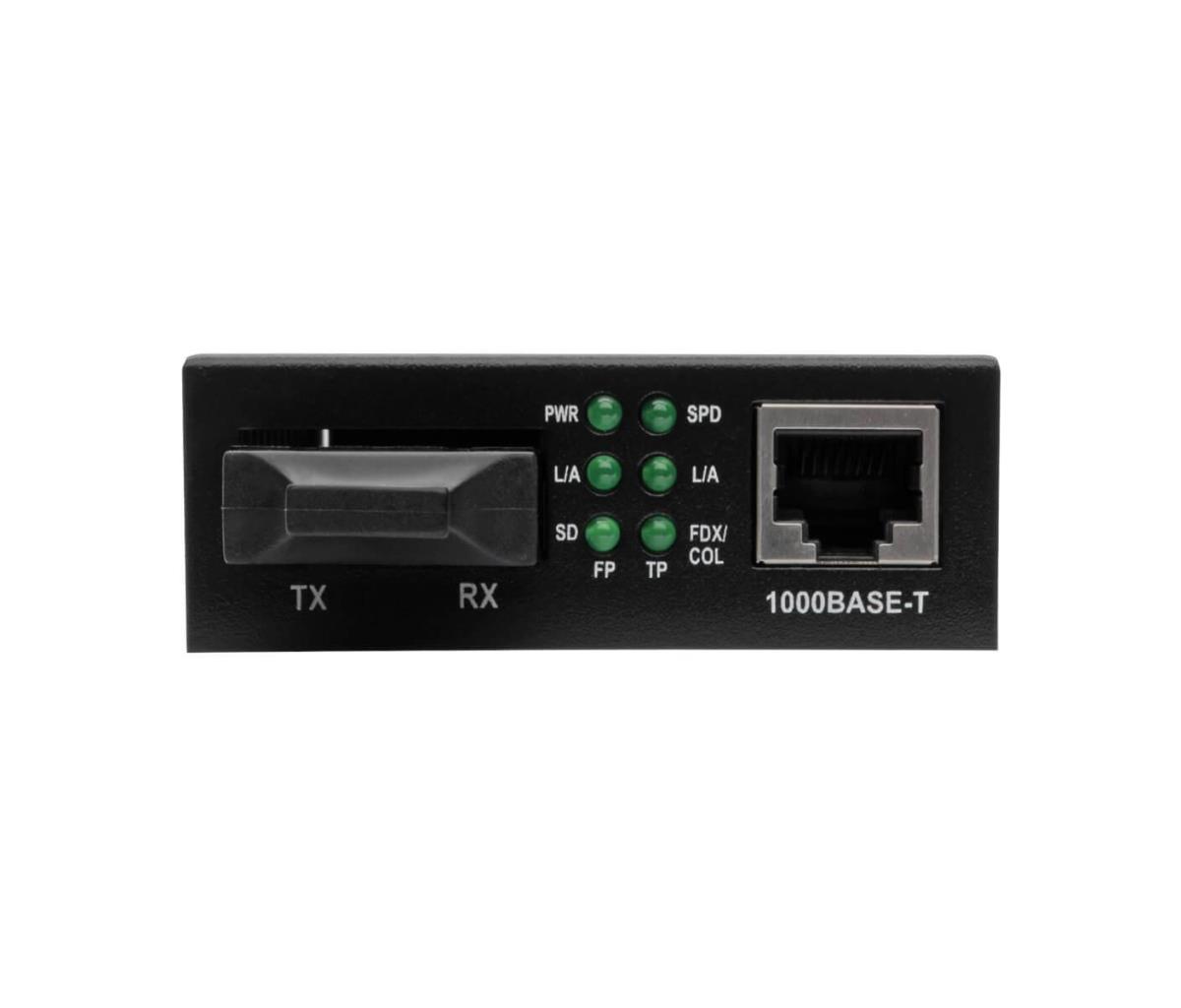

6 LEDs indicate network and fiber link status at a glance
Plug-and-Play Operation
No additional software or drivers required
Compact unit sets up in minutes
Durable metal housing designed to last

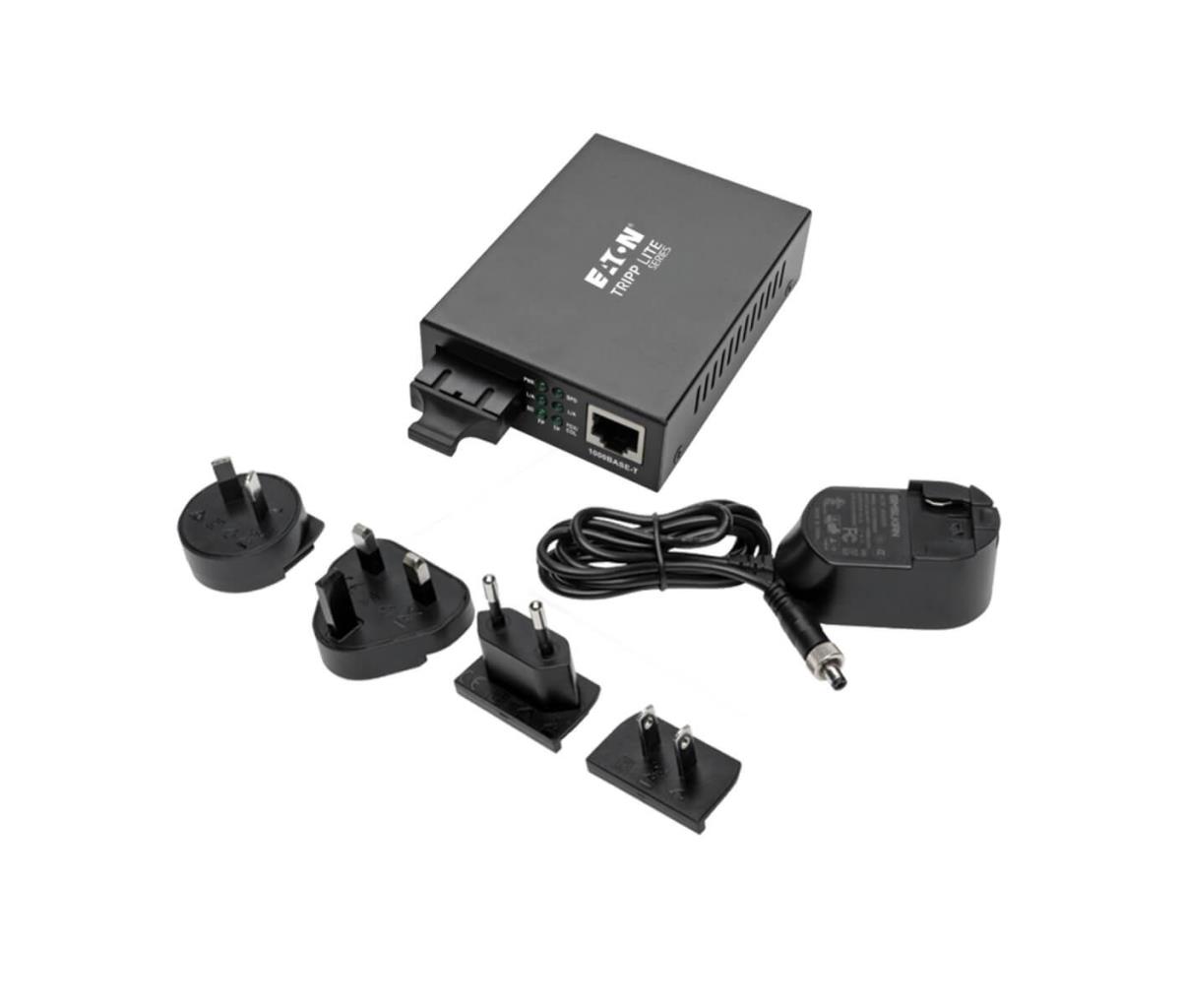

Power supply includes international plug adapters for North America, U.K., Europe and Australia
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 1000Base-T |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SC |
| Performance | |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Design | |
| Internal | No |
| Product colour | Black |
| Country of origin | China |
| Power | |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2 A |

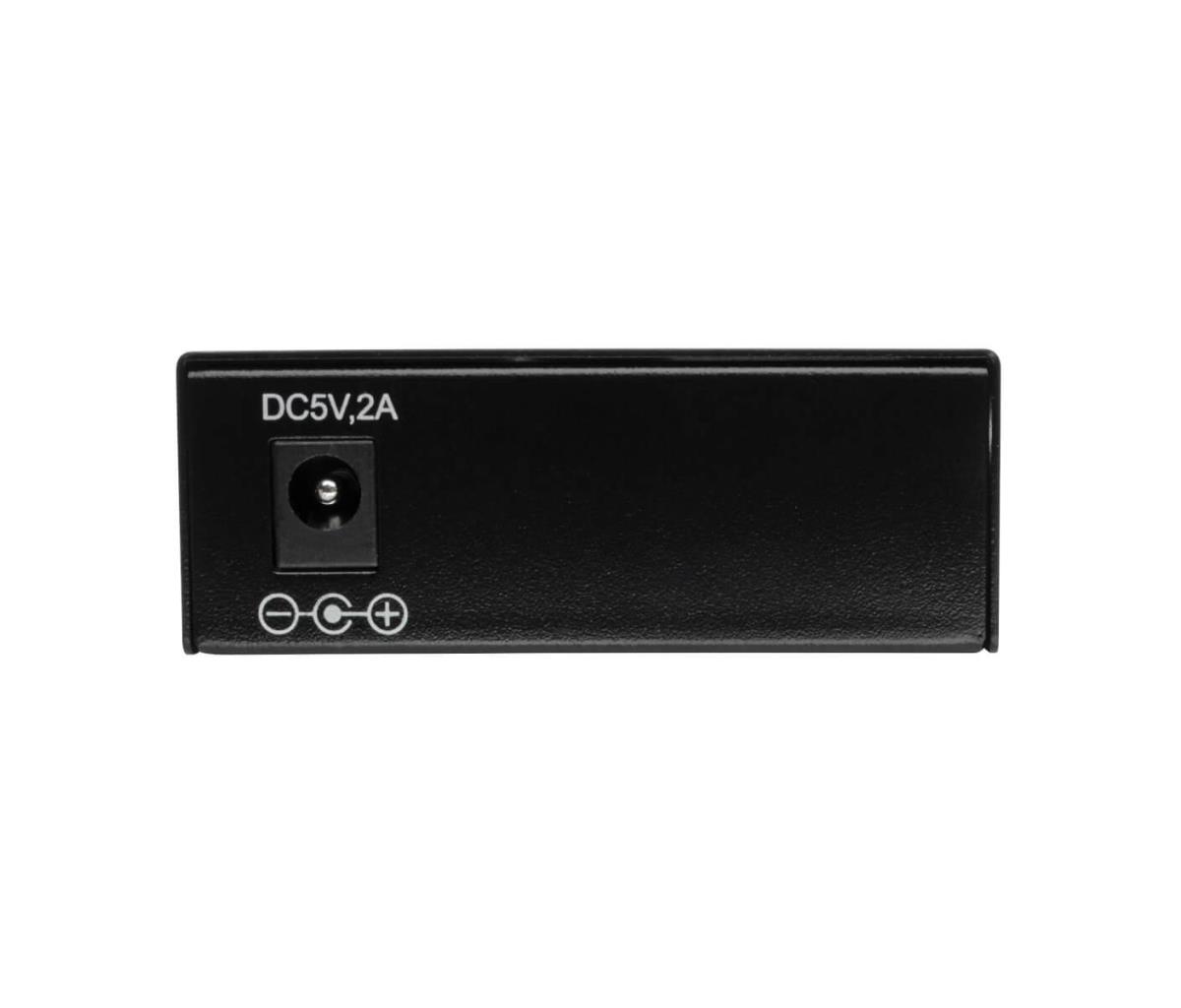

| Output voltage | 5 V |
| External power adapter | Yes |
| Weight & dimensions | |
| Weight | 450 g |
| Packaging data | |
| Package width | 119.4 mm |
| Package depth | 231.1 mm |
| Package height | 50.8 mm |
| Package weight | 450 g |
| Packaging content | |
| AC adapter included | Yes |
| Technical details | |
| Sustainability certificates | RoHS |
| Master (outer) case GTIN (EAN/UPC) | 10037332205671 |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 259.1 mm |
| Master (outer) case length | 274.3 mm |
| Master (outer) case height | 302.3 mm |
| Master (outer) case gross weight | 4.67 kg |
| Products per master (outer) case | 10 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
