USB Type C To DVI Dual Link Supports 4k30hz Resolutions
ITCurry #: M4192804 | Article #: CAC-1510-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

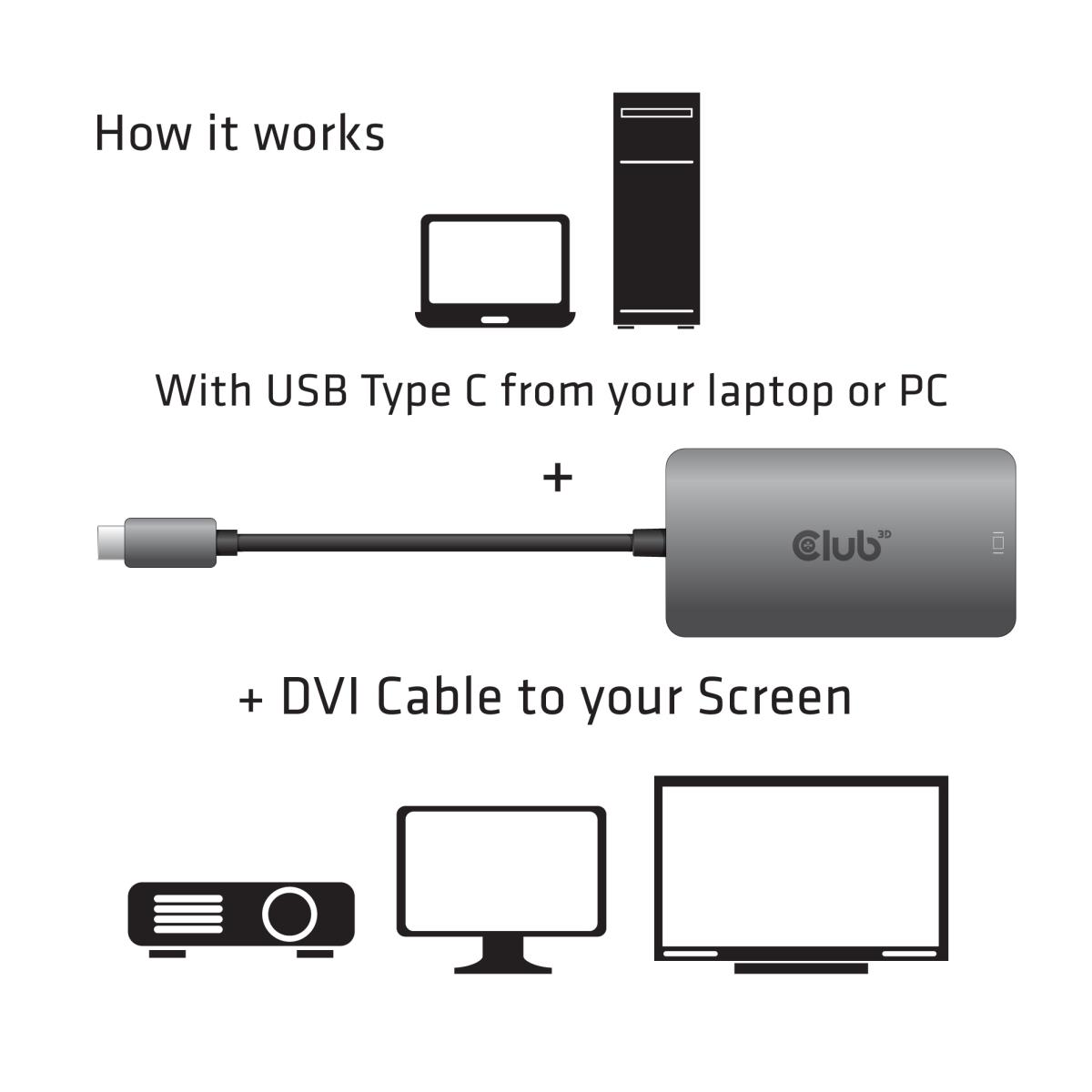

CAC-1510 - The Club 3D CAC-1510 is a USB Type C input to Dual Link DVI-I or Single Link DVI output adapter. The USB 3.1 Type C to Dual Link DVI or Single Link DVI Adapter is the easiest solution for connecting your USB 3.1 Type C source
device featuring DisplayPort™ Alternate Mode to a DVI enabled Monitor or Projector. This adapter is compact and highly portable. Powered by the USB C port, the adapter requires no external power and is ideal for use with the latest notebooks and Ultrabooks.
Supports: Dual Link DVI-I highest resolution of 3840 x 2160 at 30Hz.
Supports: Deep Color 12 Bit
Supports: 268.5 Taktrate
Compatibility
It is compatible with new Apple Macbook Pro, Macbook, new Google Chrome- book Pixel and other USB-C supported devices with support for DisplayPort™ Alternate Mode over USB C.
Please refer to your device's user manual to confirm the specification and functionality of the USB-C port.
| Ports & interfaces | |
| Connector 1 | USB C |
| Connector 2 | DVI-D Dual link |
| Dual Link DVI | Yes |
| Performance | |
| Product colour | Grey |
| Supported video modes | 2160p |
| Maximum resolution (DVI) | 3840 x 2160 pixels |
| Converter type | Active video converter |
| Bandwidth note | 268.5 MHz |
| Colour depth | 12 bit |
| Plug and Play | Yes |
| Compatible operating systems | Microsoft Windows Apple OS X Google Chrome OS |
| Certificates | |
| Certification | ROHS, FCC, and CE EMI requirements |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 245 mm |
| Height | 140 mm |
| Weight | 65 g |
| Packaging data | |
| Package width | 260 mm |
| Package depth | 60 mm |
| Package height | 35 mm |
| Package weight | 46 g |
| Package type | Box |
| Paper/cardboard packaging weight | 46 g |
| Plastic packaging weight | 3 g |
| Total plastic packaging weight | 30 g |
| Total paper/cardboard packaging weight | 460 g |
| Logistics data | |
| Harmonized System (HS) code | 8544 4290 |
| Warranty | |
| Base Warranty | Non Non |
