KVM Switch - 4port Dual-monitor Dual-link DVI USB
ITCurry #: 75647890 | Article #: SV431DL2DU3A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
DVI KVM Switch | TAA Compliant | 2560 x 1600 Digital Resolution | Stereo Audio

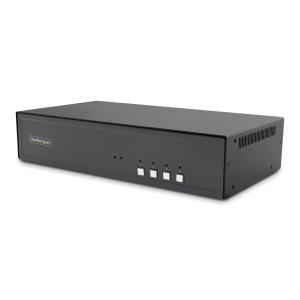

This TAA compliant 4-port dual-monitor Dual-Link DVI USB KVM switch controls up to four PCs, each with two dual-link DVI video outputs. The switch also shares one microphone, one set of speakers, one keyboard and one mouse, across the four connected computers and features an additional built-in 2 port USB hub.
Increase Productivity
The KVM switch supports four separate multimedia computer systems and the use of a dual-link DVI dual-monitor workstation, increasing productivity by enabling you to access more information at the same time.
Integrated USB 3.0 Hub
The 2-port USB 3.0 hub built into the KVM switch lets you share two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected. With support for USB 3.0, you can achieve data transfer rates up to 5Gbps ensuring flawless performance from your USB peripherals - great for quickly transferring data to and from external USB 3.0 drives.
Full Multimedia Support
With support for separate stereo audio and microphones, the KVM switch box connects everything you need to your systems, saving you money and desk space.
Easy to Operate
The front-panel push-buttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently, without the expense and clutter of extra keyboards, mice, and monitors. This 4-port dual-monitor dual-link DVI USB KVM switch is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces | |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| DVI-I ports quantity | 10 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 5 |
| Number of microphone inputs | 5 |
| DC-in jack | Yes |
| Performance | |
| Maximum digital resolution | 2560 x 1600 pixels |
| Maximum analog resolution | 2048 x 1536 pixels |
| Scan interval | 3,8,15,30 s |
| Daisy chain | No |
| Number of users | 1 user(s) |
| Audio channels | 2.0 |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Activity |
| Hot keys | Yes |
| Certification | CE, FCC, TAA |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Input voltage | 100 - 240 V |
| Input current | 0.8 A |
| Output voltage | 9 V |
| Output current | 2 A |
| Power consumption (typical) | 18 W |
| Compatible power plug types | AU, EU, JP, UK, US |
| Warranty | |
| Base Warranty | Non Non |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 100 mm |
| Depth | 253 mm |
| Height | 66 mm |
| Weight | 1.3 kg |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 268 mm |
| Package height | 191.5 mm |
| Package weight | 300 g |
| Packaging content | |
| Quick installation guide | Yes |
| Other features | |
| IP control | No |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 495 mm |
| Master (outer) case length | 554 mm |
| Master (outer) case height | 213 mm |
| Products per master (outer) case | 6 pc(s) |
