USB-c To DVI Adapter - Dual-link Connectivity - Active Conversion
ITCurry #: 75647998 | Article #: CDP2DVIDP-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Dual-Link Video Converter | Bus Powered | 2560x1600

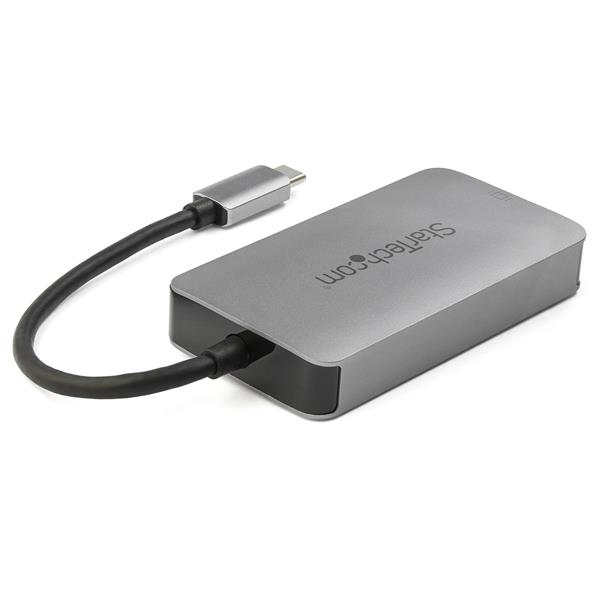

This USB-C to DVI adapter lets you connect your USB Type-C device to any DVI display, including televisions, Apple Cinema HD Display and other DVI dual-link monitors.
Ultimate Compatibility
With an active conversion, this USB Type-C to DVI adapter ensures compatibility with DVI dual-link monitors and displays, which eliminates having to upgrade your DVI display to a newer model for the sake of compatibility.
Ideal for Travel
With its compact, lightweight design, this active USB-C to DVI-I adapter offers a convenient travel accessory to carry with your USB-C-equipped computer, fitting easily into your laptop bag or carrying case. Its ultra-portable design makes this display adapter perfect for BYOD (Bring Your Own Device) applications at the office, or on the road.
As well, this DVI converter is powered by the host device's USB-C port, eliminating the need for additional cords or chargers.
Uncompromised Picture Quality
This DVI adapter can handle full dual-link resolutions up to 2560x1600 with the ability to mirror your display or extend your desktop. Alternatively, the USB 3.1 to DVI adapter can support single-link displays with resolutions up to 1920x1080.
With easy plug-and-play connectivity, this DVI video adapter offers a hassle-free setup.
CDP2DVIDP is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Connect your USB-C device to any DVI display or TV, including Apple Cinema HD Display
- Experience high DVI dual-link picture quality with support for resolutions up to 2560x1600
- Portable design makes this DVI converter the perfect travel companion
| Performance | |
| DVI output | Yes |
| HDMI output | No |
| DisplayPort output | No |
| Number of displays supported | 1 |
| DVI connector type | DVI-I |
| Maximum resolution | 2560 x 1600 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA) |
| Chipset | Synaptics VMM2320, Via VL100, Texas Instruments SN75DP139 |
| Certification | CE, FCC, REACH |
| Design | |
| Product colour | Black, Silver |
| Housing material | Metal |
| USB cable length | 0.152 m |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -10 - 70 øC |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 45 mm |
| Depth | 86 mm |
| Height | 13 mm |
| Weight | 65 g |
| Package width | 144 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 130 g |
| Technical details | |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Warranty | |
| Base Warranty | Non Non |
