Product Information

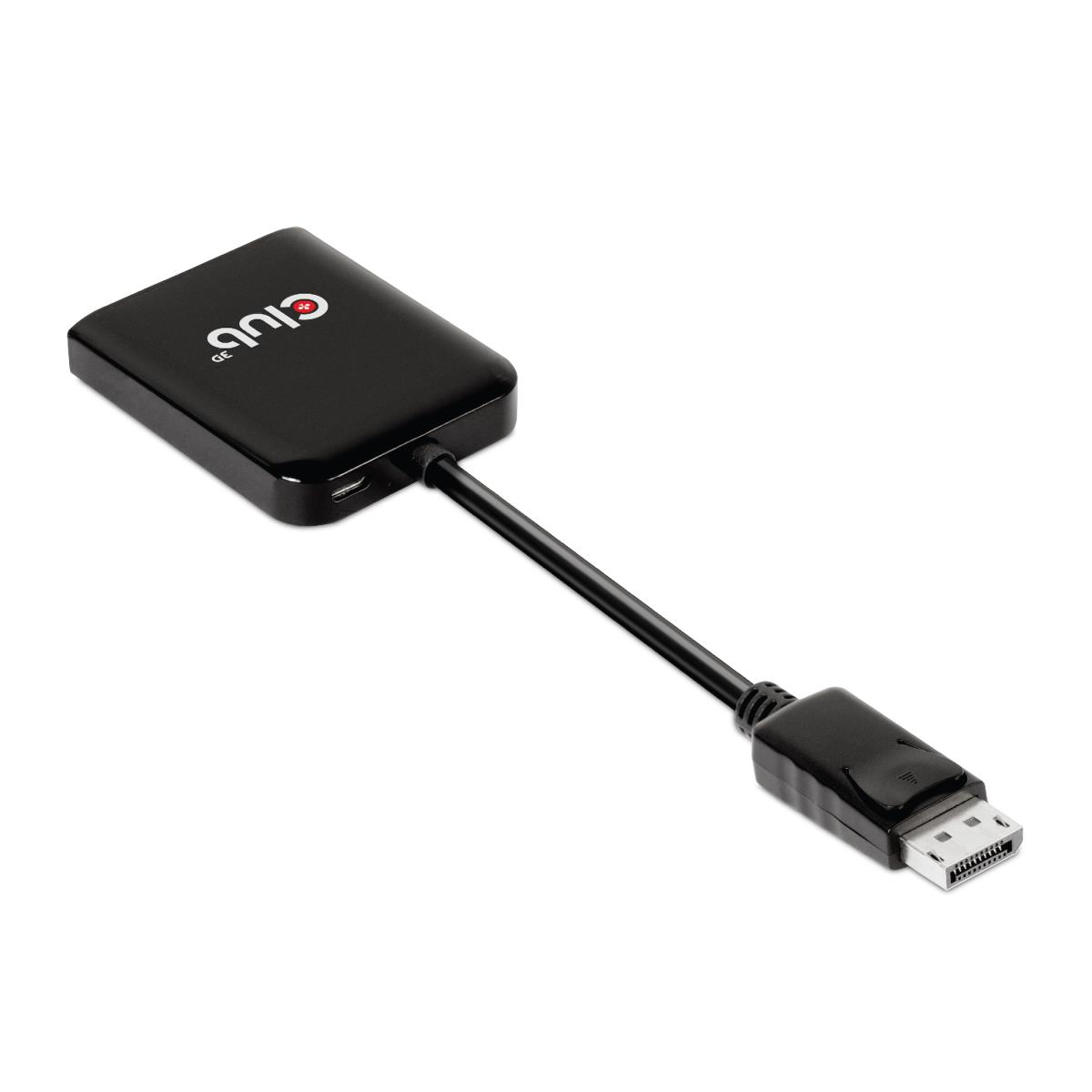

The CSV-7220 is a MST hub DisplayPort™ 1.4 to DisplayPort™ + HDMI™ 4K60Hz M/F. This DisplayPort™ 1.4 MST hub is designed to cater for your most versatile connectivity demands, such as Tablet, laptop, etc. with a free DP™ (DisplayPort) port.
Give your device more displays. PCs and notebooks are increasingly becoming more powerful and smaller in the physical form factor. With a single DP™1.4 port available you can now drive one-Displayport™ screen simultaneously with a HDMI™ screen at 4K60Hz or One DP™ display at 8K30Hz in MST mode Windows). All it needs is a free DP™ 1.4 port on your Laptop or PC to connect to the MST hub and will provide you with unparalleled connection options for Dual 4K60Hz displays. The setup is easy and simple to do, provided your system supports DP1.4 specifications and DSC1.2 Compression, resolutions can be limited if the source device is lower. The CSV-7220 is externally powered by a USB Type-A to Micro USB cable which comes with the product.
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Power source | USB |
| Cable length | 1 m |
| Connector 1 | DisplayPort |
| Connector 2 | HDMI + DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 3840 x 2160, 5120 x 2880, 7680 x 4320 |
| Supported video modes | 2160p, 2880p, 4320p |
| Maximum refresh rate | 60 Hz |
| Refresh rate at maximum resolution | 30 Hz |
| 3D | Yes |
| Product colour | Grey |
| Cable type | Round cable |
| Plug and Play | Yes |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Certificates | |
| Certification | ROHS, FCC, CE EMI |
| Packaging composition | |
| Plastic packaging weight | 5 g |
| Paper/cardboard packaging weight | 34 g |
| Weight & dimensions | |
| Weight | 48 g |
| Width | 62 mm |
| Depth | 44 mm |
| Height | 15.2 mm |
| Packaging data | |
| Package width | 75 mm |
| Package depth | 35 mm |
| Package height | 250 mm |
| Package weight | 107 g |
| Package type | Box |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 8473 3020 |
| Warranty | |
| Base Warranty | Non Non |
