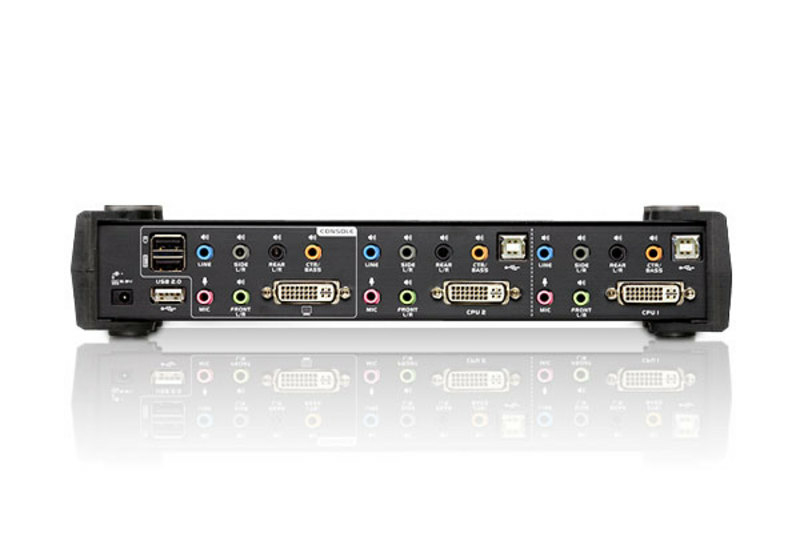

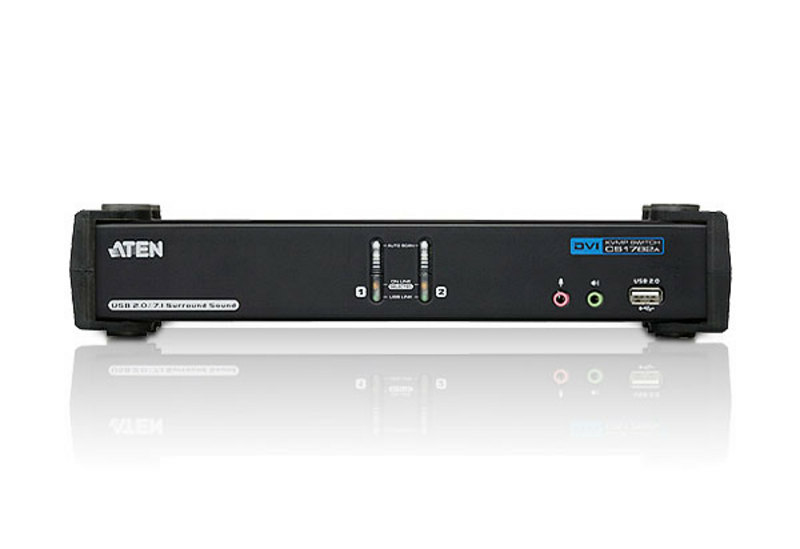

KVMp Switch 2-port USB DVI Dual Link
ITCurry #: 90313062 | Article #: CS1782A-AT-G
slide 2 of 3
Related products
slide 6 to 10 of 15
Product Information
The CS1782A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 2-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as nVidia 3D Vision ready 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.
1 x CS1782A USB DVI Dual Link KVMP™ Switch
2 x 2L-7D02UD DVI-D KVM Cables sets (1.8m)
2 x LIN5-12N1-N11G Custom 7.1 Channel Surround Sound Cable Sets (1.8m)
1 x 0AD8-1605-24M1 Power Adapter
1 x User Instructions
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| DVI-I ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| Console USB ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
| DC-in jack | Yes |
| Performance | |
| HD type | WQXGA |
| Maximum resolution | 2560 x 1600 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,99 s |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Display | |
| Built-in display | No |
| Power | |
| Power source | DC |
| Input voltage | 5.3 V |
| Power consumption (typical) | 3.3 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 270 mm |
| Depth | 88 mm |
| Height | 55.5 mm |
| Weight | 1.88 kg |
| Packaging data | |
| Package width | 98 mm |
| Package depth | 325 mm |
| Package height | 210 mm |
| Package weight | 2.12 kg |
| Packaging content | |
| Quick installation guide | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case net weight | 9.4 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 342 mm |
| Master (outer) case length | 512 mm |
| Master (outer) case height | 232 mm |
| Master (outer) case gross weight | 11.5 kg |
| Products per master (outer) case | 5 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
KVMp Switch 2-port USB DVI Dual Link
127.11
