POWERGO Rack PDU BASIC 0U 32A 220V IEC60309X3M C13X20+C19X4 BR
ITCurry #: N6415799 | Article #: EP0G90A0-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

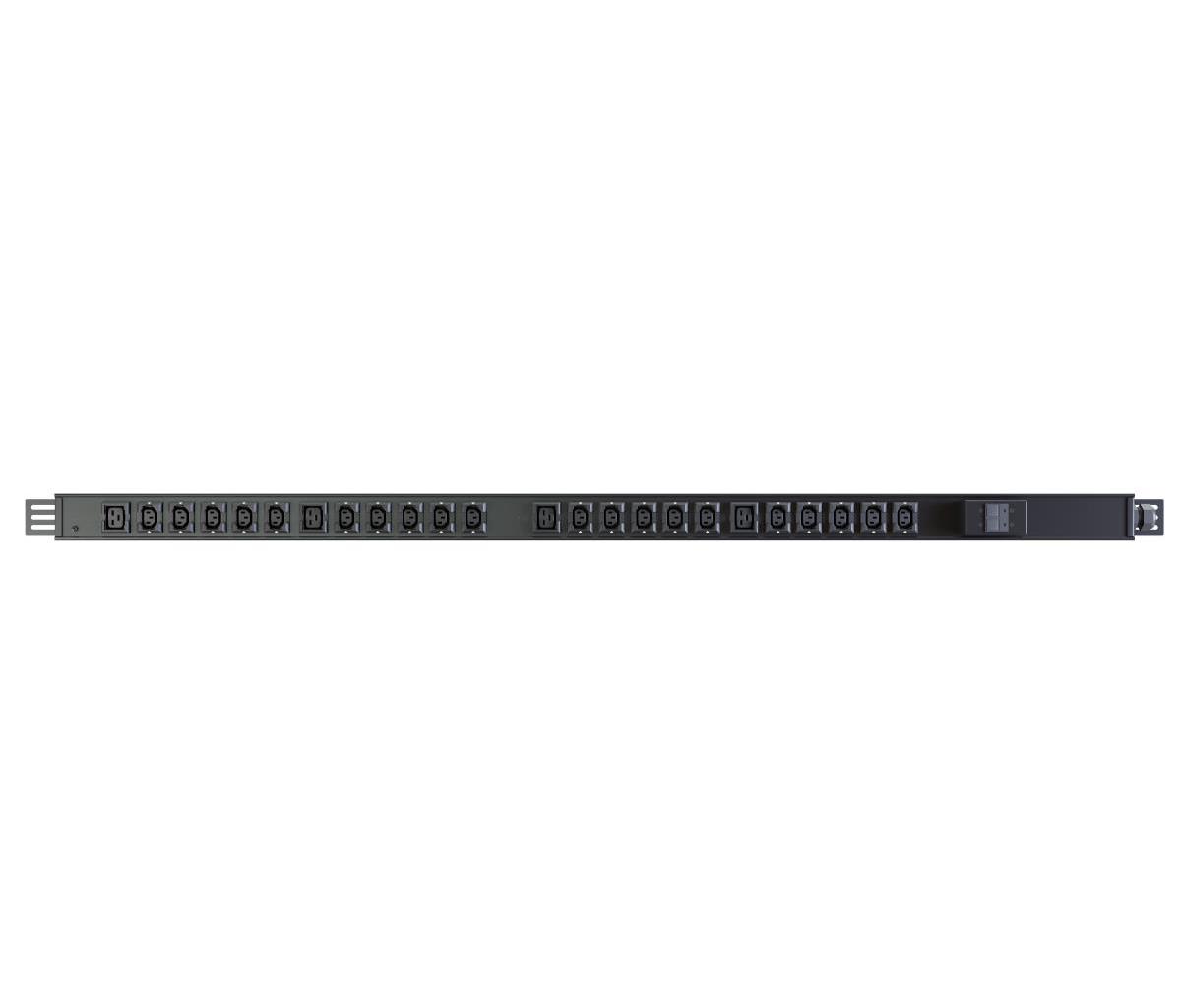

The Vertiv PowerGo EP0G90A0 has a 230V input voltage, 32A current capacity, and a load capacity of up to 7.3kW with 2P+E (IP44), making it ideal for high-demand IT applications. Engineered for safety, it includes two 16A single-pole magnetic breakers for over-current protection, with a convenient breaker/switch combination for streamlined operation. This unit provides 20 IEC C13 outlets (10 per breaker) and 4 IEC C19 outlets (2 per breaker), all with a secure manual locking mechanism for a stable connection. It’s equipped with a 10-foot power cable and supports a maximum operating temperature of 45°C, adapting to demanding environments. It is CE-Marked, FCC-Marked, complies with IEC 62368-1, and is RoHS compliant. Every unit is 100% tested for reliability and functionality and has a 1-year warranty, offering both efficiency and peace of mind for your power distribution needs.
| Design | |
| PDU types | Basis |
| Soort | Eenfasig |
| Rackcapaciteit | 1U |
| Montage | Verticaal |
| Kleur van het product | Zwart |
| Poorten & interfaces | |
| Aantal AC uitgangen | 24 AC-uitgang(en) |
| Stekker | IEC 60309 |
| Stopcontacttypes | C13 stekker, C19 stekker |
| Kenmerken | |
| Snoerlengte | 3 m |
| Energie | |
| Nominale input voltage | 230 V |
| AC-ingangsfrequentie | 50/60 Hz |
| Stroom (max.) | 32 A |
| Stroomspanning bescherming | Overstroom |
| Maximaal vermogen | 7300 W |
| Certificaten | |
| Certificering | CE Marked, FCC Marked, Complies with IEC 62368-1, Complies with EN 55032 and EN 55039, ROHS (EMC only),S-Mark |
| Gewicht en omvang | |
| Breedte | 65,5 mm |
| Diepte | 435 mm |
| Hoogte | 45 mm |
| Gewicht | 4,5 kg |
| Logistieke gegevens | |
| Land van herkomst | China |
| Warranty | |
| Base Warranty | Non Non |
