Geist Rack PDU Basic 0U input IEC60309 230/400V 3x16A outputs (36)C13 (6)C19
ITCurry #: N6415101 | Article #: VP7557
slide 3 of 2
Prijs:
427,87
Excl. btw
Levering in Benelux:
GRATIS Levering.
Nu niet op voorraad. Bel ons!
Verwante producten
slide 7 to 11 of 14
Product Informatie

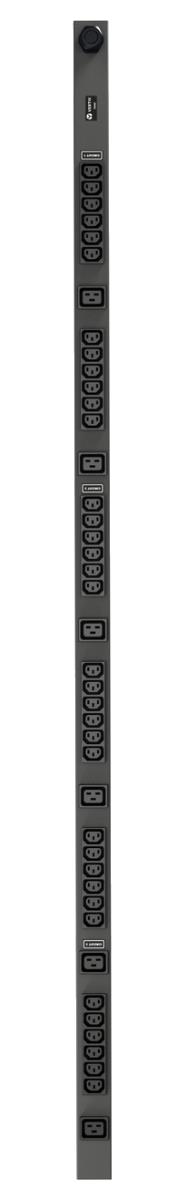

The Vertiv Geist Basic Rack PDU VP7557 is a 16A, 230/400V WYE, 0U vertical rack power distribution unit (PDU). It has 36 C13, 6 C19 outlets, and a 3P+N+E(IP44) plug that provides 11.0kW in power capacity. Vertiv Geist Basic Rack PDUs are UL-listed and are not batch-tested. The RoHS-compliant rPDUs undergo rigorous individual tests for reliability and functionality before shipping. The unit comes with a three-year warranty that can be extended to five-years if registered within 120 days of purchase.
| Design | |
| PDU types | Basis |
| Soort | Driefasig |
| Rackcapaciteit | 0U |
| Montage | Verticaal |
| Kleur van het product | Zwart |
| Poorten & interfaces | |
| Aantal AC uitgangen | 42 AC-uitgang(en) |
| Stekker | IEC 60309 |
| Stopcontacttypes | C13 stekker, C19 stekker |
| Output-aansluitingen | 36 x C13 & 6 x C19 |
| Kenmerken | |
| LED-indicatoren | Nee |
| Snoerlengte | 3 m |
| Energie | |
| Nominale input voltage | 230/400 V |
| AC-ingangsfrequentie | 50 Hz |
| Laad-capaciteit | 11000 VA |
| Maximale ingang stroom per fase | 16 A |
| Certificaten | |
| Certificaten van naleving | RoHS |
| Certificering | CE, RoHS, CB |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 45 øC |
| Gewicht en omvang | |
| Breedte | 1683 mm |
| Diepte | 51 mm |
| Afmetingen (B x D x H) | 1683 x 51 x 51 mm |
| Hoogte | 51 mm |
| Gewicht | 6,6 kg |
| Verpakking | |
| Afmetingen verpakking (BxDxH) | 1829 x 223 x 159 mm |
| Gewicht verpakking | 7,71 kg |
| Breedte verpakking | 1829 mm |
| Diepte verpakking | 223 mm |
| Hoogte verpakking | 159 mm |
| Warranty | |
| Base Warranty | Non Non |
Geist Rack PDU Basic 0U input IEC60309 230/400V 3x16A outputs (36)C13 (6)C19
427.87
