Specifications | General

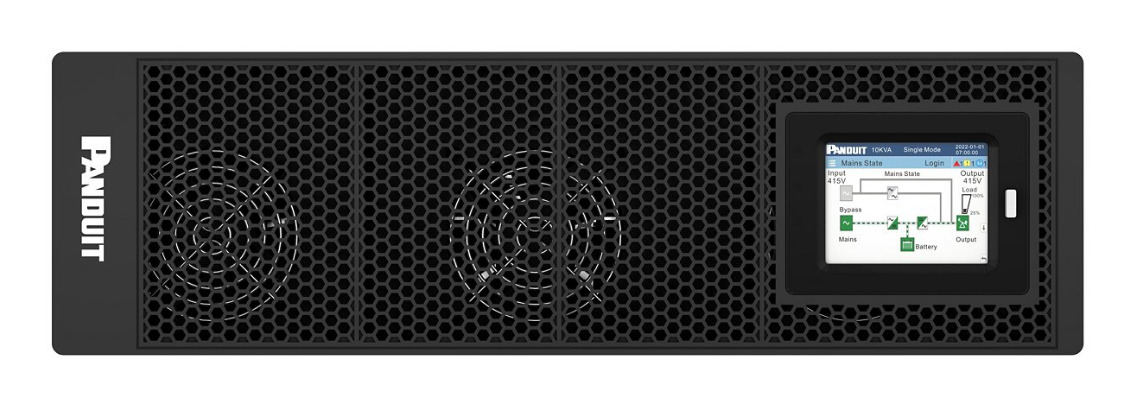

Colour | Black | Localisation | EMEA | Height (Rack Units) | 7U | Device Type | UPS - Power Factor Correction (PFC) - rack-mountable / external |
Expansion / Connectivity
Expansion Slots | 1 (total) / 0 (free) x Intelligent Slot | Interfaces | 1 x management (USB) 1 x management (RS-232) 1 x EPO (emergency power off) 1 x management (Ethernet) - RJ-45 1 x sensor - RS-485 |
Manufacturer Warranty
Service & Support | Limited warranty - 3 years Limited warranty - batteries - 2 years |
Networking
Remote Management Protocol | SNMP 3 | Remote Management Interface | Ethernet, RS-232, USB |
Miscellaneous
Rack Mounting Kit | Included | Features | Emergency power off, LCD display, overheat protection, internal bypass, Automatic Voltage Regulation (AVR), overcharge protection, overload protection, cold-start function, short-circuit protection, hot-swappable batteries, low voltage protection, overdischarge protection, double conversion | Compliant Standards | UL, RoHS, REACH, EN 62040-1:2008+A1:2013, ISTA 2B, IEC 62040-1:2013, BS 62040-1-2013, IEC 62040-2-2016, EN 62040-2-2018, BS 62040-2-2018, Energy Star 2.0 |
Software / System Requirements
Software Included | SmartZone Cloud, SmartZone mPower |
Environmental Parameters
Min Operating Temperature | 0 °C | Max Operating Temperature | 40 °C | Sound Emission | 58 dB | Humidity Range Operating | 0 - 95% RH (non-condensing) |
Battery
Quantity | 40 | Technology | Lead Acid | Recharge Time | 4 hour(s) | Transfer Time | 0 ms | Run Time (Up To) | 9 min at full load 18 min at half load | Features | Maintenance free, valve-regulated | Voltage Provided | DC 480 V |
Power Device
Power Factor (PF) | 1.0 | Frequency Provided | 50/60 Hz | Input Voltage | AC 220/230/240 V | Output Waveform | Sinewave | UPS Technology | On-line | Dataline Surge Protection | Network - RJ-45 | Frequency Required | 40 - 70 Hz | Input Wiring | 3-phase | Output Voltage | AC 220/230/240 V 50/60 Hz | Power Capacity | 20000 Watt / 20000 VA | Input Connectors | 1 x hardwire 5-wire (3PH + N + PE) | Input Voltage Range | AC 138 - 485 V / 305 - 485 V | Power Output Connectors Details | 1 x hardwire 5-wire (3PH + N + PE) 1 x hardwire 3-wire (1PH + N + PE) | Efficiency | 98.5% Eco mode, 95.5% online mode |
Dimensions & Weight
Dimensions & Weight (Shipping)
Sustainability Information
|
