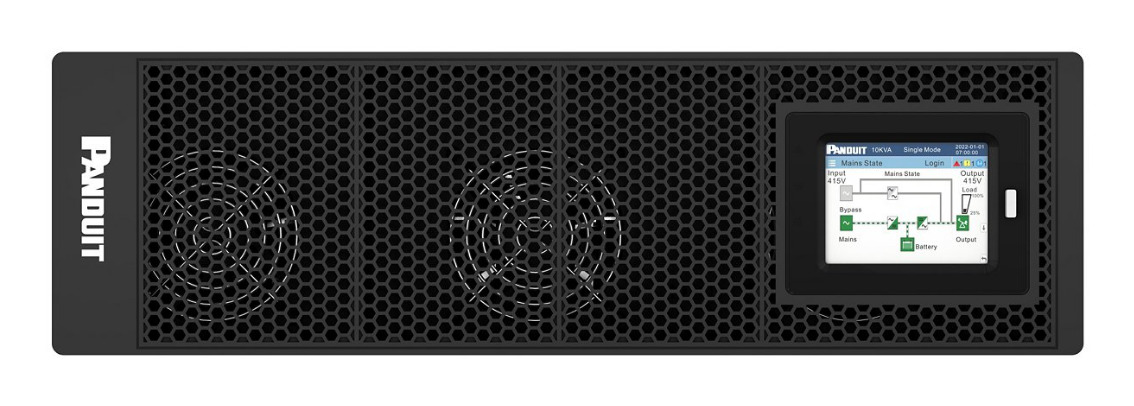

SMARTZONE UPS 15kVA 7U 3U UPS+4U EB VRLA 32v

Name: SMARTZONE UPS 15kVA 7U 3U UPS+4U EB VRLA 32v
Brand: PANDUIT CORP
SKU: M0685482
Price: 9779.13 EUR
Availability: OutOfStock

ITCurry #: M0685482 | Article #: U15S32V

Notify

Meer zoeken: UPS

Prijs:

9779,13 Incl. btw Excl. btw

Levering in Benelux:

Nu niet op voorraad. Bel ons!

E-mail ons voor hulp

Korte specificaties

Scherm

Geheugen

Gewicht

Processor

Hard Disk

SSD

Scherm

Resolutie

Connectiviteit

Geheugen

Desktop

OS

Scherm

Type

Snelheid Zwart

Snelheid Kleuren

Model

Snelheid

Vorm factor

Interne / Externe

Aantal poorten

Uplink / media

Montage
Alles bekijken

Bundles

Incl. btw Excl. btw

Nu niet op voorraad. Bel ons!

Notify

Incl. btw Excl. btw

Nu niet op voorraad. Bel ons!

Notify

{{'€ ' + mouse.UnitPrice.toFixed(2) }} Incl. btw Excl. btw

{{ '€ ' + bag.UnitPrice.toFixed(2) }} Incl. btw Excl. btw

{{'€ ' + carePack.UnitPrice.toFixed(2) }} Incl. btw Excl. btw

Verwante producten

Product Informatie

Features

95.5% efficiency in online mode and 98% in Eco mode for energy savings
18 min run time at full load with maintenance-free lead acid batteries
Multiple management interfaces including USB, RS-232, and Ethernet
Automatic Voltage Regulation (AVR) and comprehensive protection features
Rack-mountable design with hot-swappable batteries for easy maintenance

Specifications

General

Colour	Black
Localisation	EMEA
Height (Rack Units)	7U
Device Type	UPS - Power Factor Correction (PFC) - rack-mountable / external

Expansion / Connectivity

Expansion Slots	1 (total) / 0 (free) x Intelligent Slot
Interfaces	1 x management (USB) 1 x management (RS-232) 1 x EPO (emergency power off) 1 x management (Ethernet) - RJ-45 1 x sensor - RS-485

Manufacturer Warranty

Service & Support

Limited warranty - 3 years Limited warranty - batteries - 2 years

Networking

Remote Management Protocol	SNMP 3
Remote Management Interface	Ethernet, RS-232, USB

Miscellaneous

Rack Mounting Kit	Included
Features	Emergency power off, LCD display, overheat protection, internal bypass, Automatic Voltage Regulation (AVR), overcharge protection, overload protection, cold-start function, short-circuit protection, hot-swappable batteries, low voltage protection, overdischarge protection, double conversion
Compliant Standards	UL, RoHS, REACH, IP20, EN 62040-1:2008+A1:2013, ISTA 2B, IEC 62040-1:2013, BS 62040-1-2013, IEC 62040-2-2016, EN 62040-2-2018, BS 62040-2-2018, Energy Star 2.0

Software / System Requirements

Software Included

SmartZone Cloud, SmartZone mPower

Environmental Parameters

Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Sound Emission	58 dB
Humidity Range Operating	0 - 95% RH (non-condensing)

Battery

Quantity	40
Technology	Lead Acid
Recharge Time	4 hour(s)
Transfer Time	0 ms
Features	Maintenance free, valve-regulated
Voltage Provided	DC 480 V
Run Time (Up To)	18 min at full load 36 min at half load

Power Device

Power Factor (PF)	1.0
Frequency Provided	50/60 Hz
Output Waveform	Sinewave
UPS Technology	On-line
Dataline Surge Protection	Network - RJ-45
Frequency Required	40 - 70 Hz
Input Wiring	3-phase
Input Voltage	AC 380-415 V
Output Voltage	AC 220/230/240 V 50/60 Hz
Power Capacity	15000 Watt / 15000 VA
Input Connectors	1 x hardwire 5-wire (3PH + N + PE)
Power Output Connectors Details	1 x hardwire 5-wire (3PH + N + PE) 1 x hardwire 3-wire (L + N + G)
Input Voltage Range	AC 305-485 / 138-485 V
Efficiency	98% Eco mode, 95.5% online mode

Dimensions & Weight

Height	30.6 cm
Weight	180 kg
Width	88.3 cm
Depth	155.6 cm

Dimensions & Weight (Shipping)

Shipping Width	77 cm
Shipping Depth	106 cm
Shipping Weight	220 kg
Shipping Height	73.4 cm

Sustainability Information

ENERGY STAR

Yes

Base Warranty

Non Non
