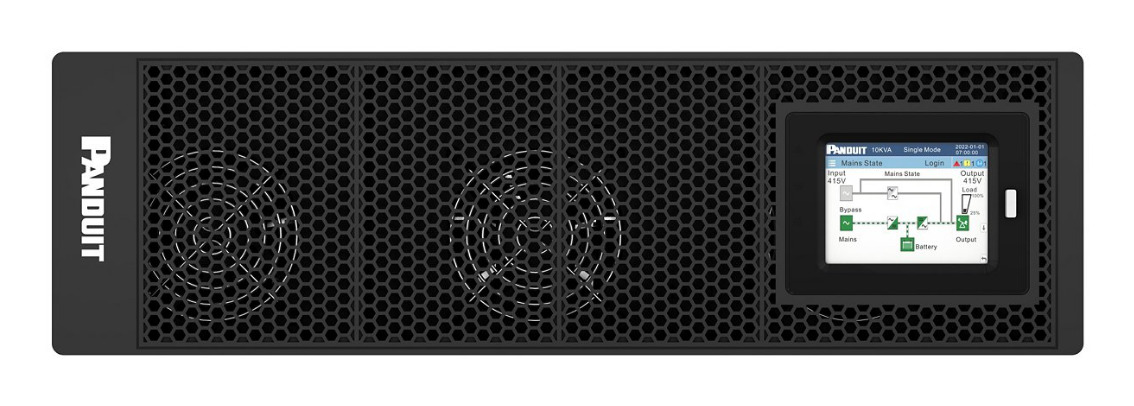

SMARTZONE UPS 15kVA 7U 3U UPS+4U EB VRLA 32v

ITCurry #: M0685481 | Article #: U15N32V
Notify
Flash Sale
Meer zoeken: UPS
Prijs:
10043,45 Incl. btw Excl. btw
Levering in Benelux:
Nu niet op voorraad. Bel ons!
E-mail ons voor hulp
Korte specificaties
  • Scherm
    Geheugen
    Gewicht
    Processor
    Hard Disk
    SSD
    Scherm
    Resolutie
    Connectiviteit
    Geheugen
    Desktop
    OS
    Scherm
    Type
    Snelheid Zwart
    Snelheid Kleuren
    Model
    Snelheid
    Vorm factor
    Interne / Externe
    Aantal poorten
    Uplink / media
    Montage
  • Alles bekijken

Bundles

Incl. btw Excl. btw
Nu niet op voorraad. Bel ons!
Incl. btw Excl. btw
Nu niet op voorraad. Bel ons!

Incl. btw Excl. btw
Nu niet op voorraad. Bel ons!

Incl. btw Excl. btw
Nu niet op voorraad. Bel ons!

Verwante producten

Product Informatie

Features
  • 95.5% efficiency in online mode and 98.5% in Eco mode for energy savings
  • Automatic Voltage Regulation (AVR) and comprehensive protection features
  • Multiple management interfaces including USB, RS-232, and Ethernet
  • 4 hour recharge time for minimal operational downtime
  • Lead acid batteries offer up to 12 min run time at full load
Specifications

General

Colour Black
Localisation EMEA
Height (Rack Units) 7U
Device Type UPS - Power Factor Correction (PFC) - rack-mountable / external

Expansion / Connectivity

Expansion Slots 1 (total) / 0 (free) x Intelligent Slot
Interfaces 1 x management (USB) 1 x management (RS-232) 1 x EPO (emergency power off) 1 x management (Ethernet) - RJ-45 1 x sensor - RS-485

Manufacturer Warranty

Service & Support Limited warranty - 3 years Limited warranty - batteries - 2 years

Networking

Remote Management Protocol SNMP 3
Remote Management Interface Ethernet, RS-232, USB

Miscellaneous

Rack Mounting Kit Included
Features Emergency power off, LCD display, overheat protection, internal bypass, Automatic Voltage Regulation (AVR), overcharge protection, overload protection, cold-start function, short-circuit protection, hot-swappable batteries, low voltage protection, overdischarge protection, double conversion
Compliant Standards UL, RoHS, REACH, EN 62040-1:2008+A1:2013, ISTA 2B, IEC 62040-1:2013, BS 62040-1-2013, IEC 62040-2-2016, EN 62040-2-2018, BS 62040-2-2018, Energy Star 2.0

Software / System Requirements

Software Included SmartZone Cloud, SmartZone mPower

Environmental Parameters

Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Sound Emission 58 dB
Humidity Range Operating 0 - 95% RH (non-condensing)

Battery

Quantity 40
Technology Lead Acid
Recharge Time 4 hour(s)
Transfer Time 0 ms
Run Time (Up To) 12 min at full load 24 min at half load
Features Maintenance free, valve-regulated
Voltage Provided DC 480 V

Power Device

Power Factor (PF) 1.0
Frequency Provided 50/60 Hz
Input Voltage AC 220/230/240 V
Output Waveform Sinewave
UPS Technology On-line
Dataline Surge Protection Network - RJ-45
Frequency Required 40 - 70 Hz
Input Wiring 3-phase
Output Voltage AC 220/230/240 V 50/60 Hz
Power Capacity 15000 Watt / 15000 VA
Input Connectors 1 x hardwire 5-wire (3PH + N + PE)
Input Voltage Range AC 138 - 485 V / 305 - 485 V
Efficiency 98.5% Eco mode, 95.5% online mode
Power Output Connectors Details 1 x hardwire 5-wire (3PH + N + PE) 1 x hardwire 3-wire (L + N + G)

Dimensions & Weight

Weight 180 kg

Dimensions & Weight (Shipping)

Shipping Weight 220 kg

Sustainability Information

ENERGY STAR Yes
Base Warranty Non Non
