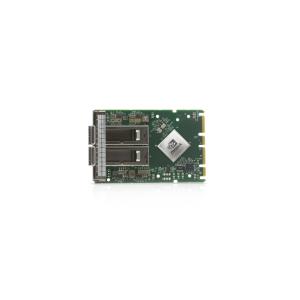

Connectx-6 Vpi Adaptor Card Sp Qsfp56 Tall Br
ITCurry #: Q6253412 | Article #: 900-9X603-0016-DT0-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
ConnectX®-6 Single/Dual-Port Adapter supporting 200Gb/s with VPI
Intelligent ConnectX-6 adapter cards, the newest additions to the Mellanox Smart Interconnect suite and supporting Co-Design and In-Network Compute, introduce new acceleration engines for maximizing High Performance, Machine Learning, Web 2.0, Cloud, Data Analytics and Storage platforms.
ConnectX-6 with Virtual Protocol Interconnect® supports two ports of 200Gb/s InfiniBand and Ethernet connectivity, sub-600 nanosecond latency, and 215 million messages per second, providing the highest performance and most flexible solution for the most demanding applications and markets.
ConnectX-6 VPI delivers the highest throughput and message rate in the industry. As the first adapter to deliver 200Gb/s HDR InfiniBand, 100Gb/s HDR100 InfiniBand and 200Gb/s Ethernet speeds, ConnectX-6 VPI is the perfect product to lead HPC data centers toward Exascale levels of performance and scalability.
ConnectX-6 offers a crucial innovation to network security by providing block-level encryption. Data in transit undergoes encryption and decryption as it is stored or retrieved. The encryption/decryption is offloaded by the ConnectX-6 hardware, saving latency and offloading CPU. ConnectX-6 block-level encryption offload enables protection between users sharing the same resources, as different encryption keys can be used.
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Hostinterface | PCI Express |
| Interface | Ethernet |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| PCI versie | 3.0 |
| Netwerk | |
| Maximale overdrachtssnelheid van gegevens | 10000 Mbit/s |
| Netwerkstandaard | IEEE 1588, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba |
| Ethernet LAN | Ja |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| Bekabelingstechnologie | 10/100/1000BaseT(X) |
| Ondersteunde netwerkprotocollen | SRP, iSER, NFS RDMA, SMB Direct, NVMe-oF |
| Design | |
| Component voor | Server |
| Kleur van het product | Groen, Zilver |
| Intern | Ja |
| Minimale systeemeisen | |
| Ondersteunt Windows | Ja |
| Warranty | |
| Base Warranty | Non Non |
| Technische details | |
| Certificaten van naleving | RoHS |
