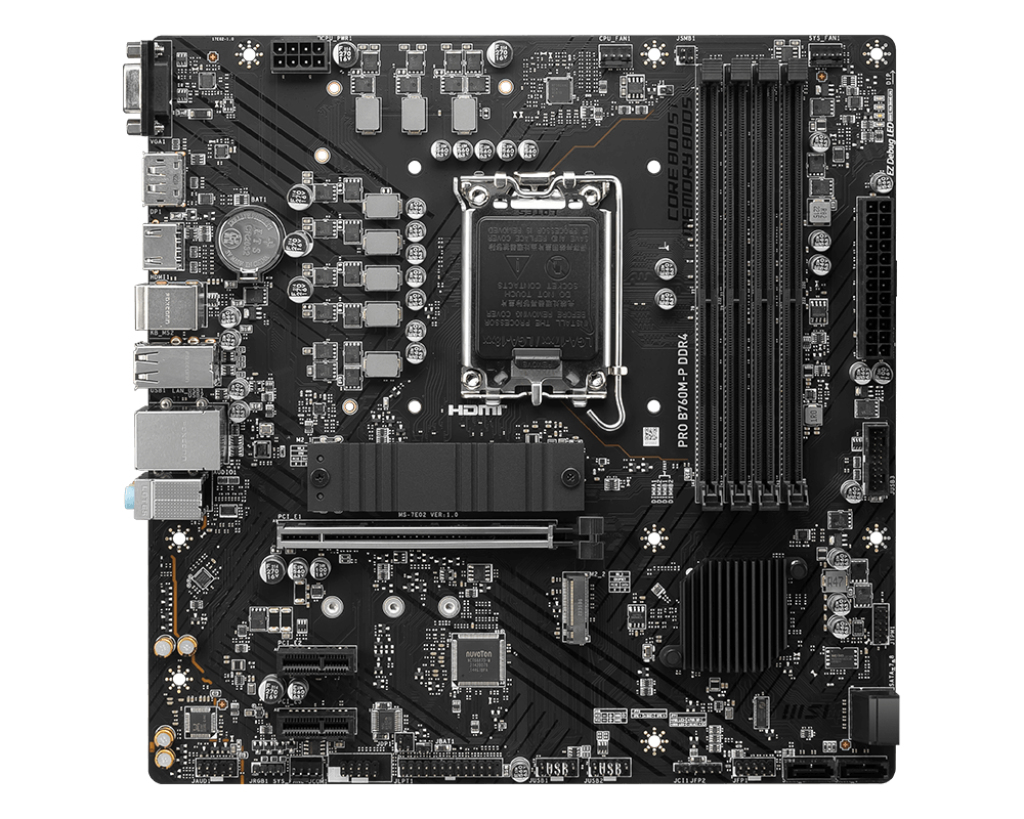

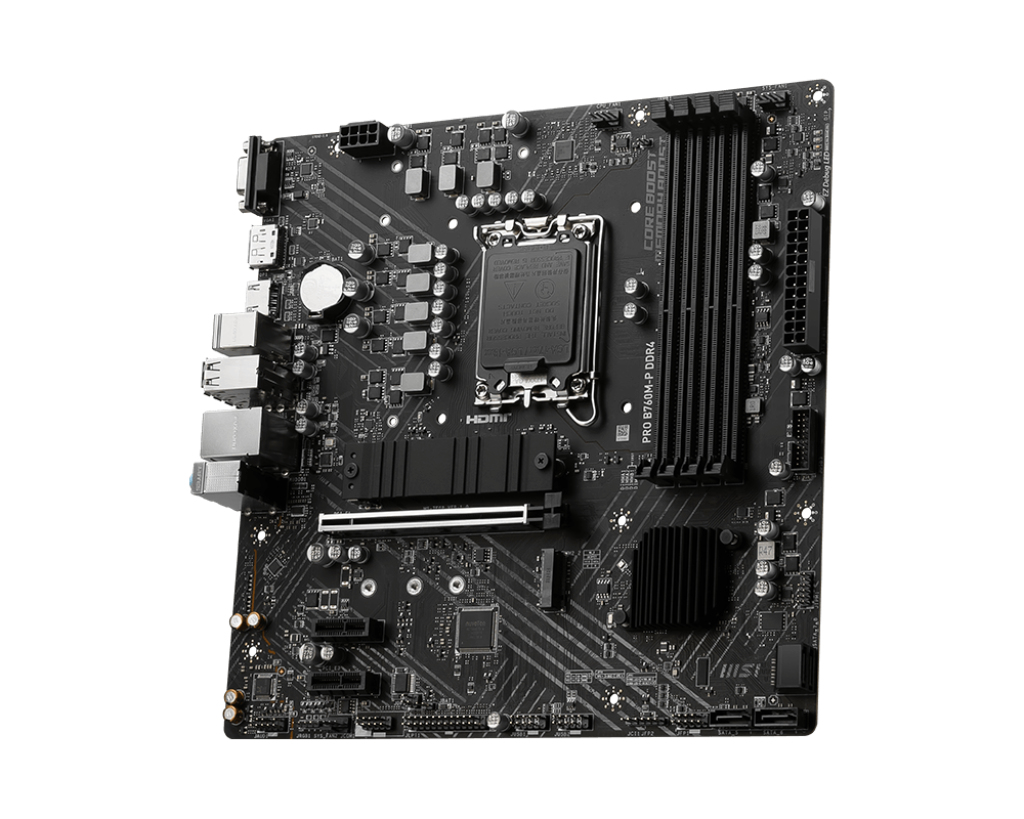

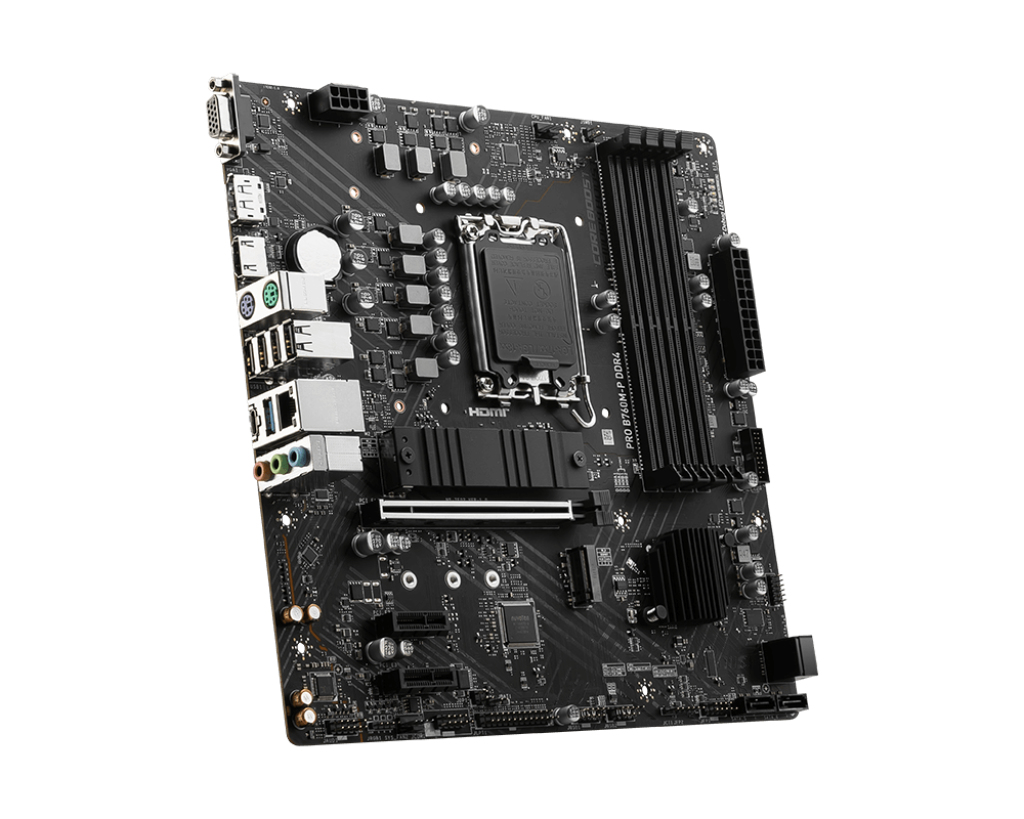

Motherboard Pro B760m-p Ddr4 LGA1700 Intel B760 4 X Ddr5 MATX
ITCurry #: 86329948 | Article #: PRO B760M-P DDR4-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
CONTROL IN ONE CLICK
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
AUTO DETECT YOUR FAN
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
| Processor | |
| Processorfabrikant | Intel |
| Processor socket | LGA 1700 |
| Compatibele processors | Intel© Celeron©, Intel© Pentium© Gold |
| Max. aantal SMP-processoren | 1 |
| Supported processor sockets | LGA 1700 |
| Geheugen | |
| Ondersteunde geheugen types | DDR4-SDRAM |
| Aantal geheugenslots | 4 |
| Geheugen slots type | DIMM |
| Geheugen kanaal | Dubbelkanaals |
| ECC ?ompatibility | Niet-ECC |
| Non-ECC | Ja |
| Supported memory clock speeds | 4800, 4600, 4400, 4266, 4200, 4000, 3800, 3733, 3600, 3466, 3400, 3333, 3200, 2933, 2666, 2400, 2133 MHz |
| Ondersteunde geheugenkloksnelheid (max) | 4800 MHz |
| Maximum intern geheugen | 128 GB |
| Opslag-controllers | |
| Ondersteunde opslagstationinterfaces | M.2, SATA III |
| RAID support | Ja |
| Soorten RAID | 0, 1, 5, 10 |
| Interne aansluitingen | |
| USB 2.0 aansluitingen | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 2 |
| Aantal SATA III connectors | 4 |
| Aansluiting voor audiopaneel aan voorzijde | Ja |
| Voorpaneel-connector | Ja |
| ATX Power connector (24-pin) | Ja |
| Aansluiting voor CPU koeler | Ja |
| TPM connector | Ja |
| RGB LED-aansluitrail | Ja |

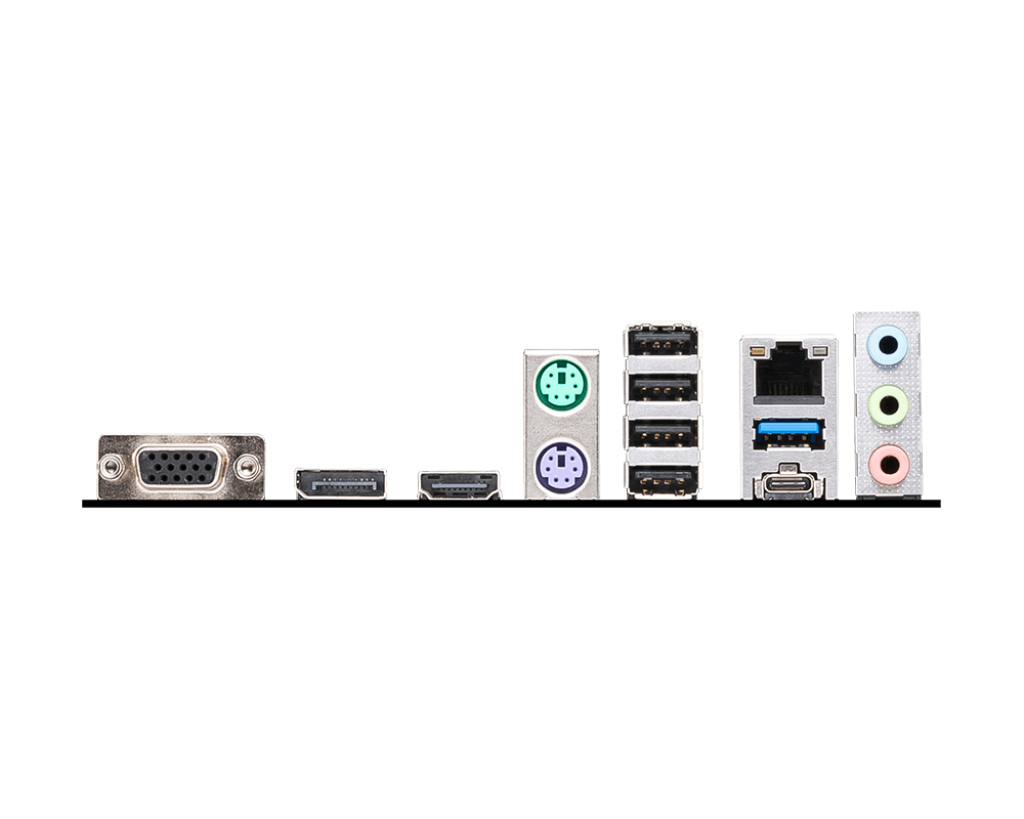

| Aansluitingen achterzijde | |
| Aantal USB 2.0-poorten | 4 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 1 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 1 |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Aantal HDMI-poorten | 1 |
| HDMI versie | 1.4 |
| Aantal DisplayPorts | 1 |
| DisplayPort versie | 1.4 |
| Netwerk | |
| Ethernet LAN | Ja |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wifi | Nee |
| Kenmerken | |
| Chipset moederbord | Intel B760 |
| Audiochip | Realtek ALC897 |
| Audio-uitgangskanalen | 7.1 kanalen |
| Component voor | PC |
| Moederbord form factor | micro ATX |
| Moederbord chipset familie | Intel |
| Type stroombron | ATX |
| Ondersteunt Windows | Windows 10, Windows 11 |
| Uitbreidingsmodules | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| BIOS | |
| BIOS type | UEFI AMI |
| Grootte BIOS-geheugen | 256 Mbit |
| Systeem Management BIOS (SMBIOS) versie | 3.5 |
| Gewicht en omvang | |
| Breedte | 243,8 mm |
| Diepte | 243,8 mm |
| Warranty | |
| Base Warranty | Non Non |
