Motherboard MATX LGA1700 Intel B760 Ex 2ddr4 64GB - B760m H Ddr4

ITCurry #: 85366408 | Article #: B760M H DDR4
Prijs:
68,22 Excl. btw
Levering in Benelux:
GRATIS Levering bij bestelling van meer dan € 100 zbtw.
Nu niet op voorraad. Bel ons!

Verwante producten

slide 6 to 10 of 15

Product Informatie

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Processor
Processorfabrikant Intel
Processor socket LGA 1700
Compatibele processors Intel© Celeron©, Intel© Pentium© Gold
Max. aantal SMP-processoren 1
Supported processor sockets LGA 1700
Maximaal intern geheugen ondersteund door processor 64 GB
Geheugen
Ondersteunde geheugen types DDR4-SDRAM
Aantal geheugenslots 2
Geheugen slots type DIMM
Geheugen kanaal Dubbelkanaals
ECC-compatibiliteit Niet-ECC
Supported memory clock speeds 2133,2400,2666,2933,3000,3200 MHz
Ondersteunde geheugenkloksnelheid (max) 3200 MHz
Maximum intern geheugen 64 GB
Ondersteunde geheugenmodule capaciteiten 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Opslag-controllers
Ondersteunde opslagstationinterfaces M.2, SATA III
Maximum aantal HDD's per behuizing 4
Aantal storage drives ondersteund 6
RAID support Ja
Soorten RAID 0, 1, 5, 10
Grafisch
Ondersteuning voor parallel processing Niet ondersteund
DirectX versie 12.1
Interne aansluitingen
USB 2.0 aansluitingen 2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen 1
Aantal SATA III connectors 4
Totaal aantal SATA-connectoren 4
Aansluiting voor audiopaneel aan voorzijde Ja
Voorpaneel-connector Ja
ATX Power connector (24-pin) Ja
Aansluiting voor CPU koeler Ja
EPS power connector (8-pin) Ja
TPM connector Ja
Serial port headers 1
RGB LED-aansluitrail Ja

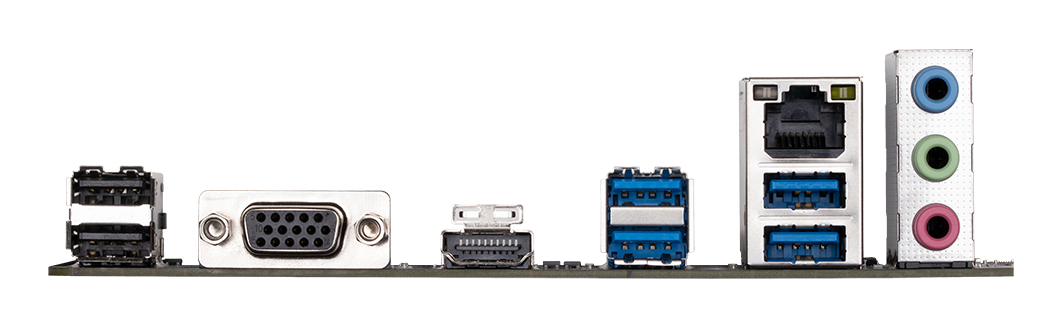

Aansluitingen achterzijde
Aantal USB 2.0-poorten 2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A 4
Aantal Ethernet LAN (RJ-45)-poorten 1
VGA (D-Sub)poort(en) 1
Aantal HDMI-poorten 1
HDMI versie 1.4
Aantal DisplayPorts 1
DisplayPort versie 1.4
Netwerk
Ethernet LAN Ja
Ethernet interface type Gigabit Ethernet
Wifi Nee
Kenmerken
Chipset moederbord Intel B760 Express
Audiochip Realtek ALC897
Audio-uitgangskanalen 7.1 kanalen
Kleur van het product Bruin
Component voor PC
Moederbord form factor micro ATX
Moederbord chipset familie Intel
Type stroombron ATX
Ondersteunt Windows Windows 10, Windows 11
Uitbreidingsmodules
PCI Express x16 (Gen 4.x) sleuven 1
Aantal M.2 (M) slots 2
BIOS
BIOS type UEFI AMI
Grootte BIOS-geheugen 128 Mbit
ACPI version 5.0
Clear CMOS jumper Ja
Versie Desktop Management Interface (DMI) 2.7
Systeem Management BIOS (SMBIOS) versie 2.7
Logistieke gegevens
Land van herkomst China
Producten per (binnenste) verzendverpakking 1 stuk(s)
Accu/Batterij
Gewicht batterij 3 g
Lithiumgewicht per batterij 0,07 g
Aantal batterijcellen 1
Batterijtechnologie Lithium-Manganese Dioxide (LiMnO2)
Type batterij CR2032
Verpakking
Breedte verpakking 265 mm
Diepte verpakking 265 mm
Hoogte verpakking 54 mm
Gewicht verpakking 825 g
Gewicht en omvang
Breedte 230 mm
Diepte 215 mm
Hoogte 35 mm
Inhoud van de verpakking
Batterijen inbegrepen Ja
Technische details
Garantieperiode 3 jaar
