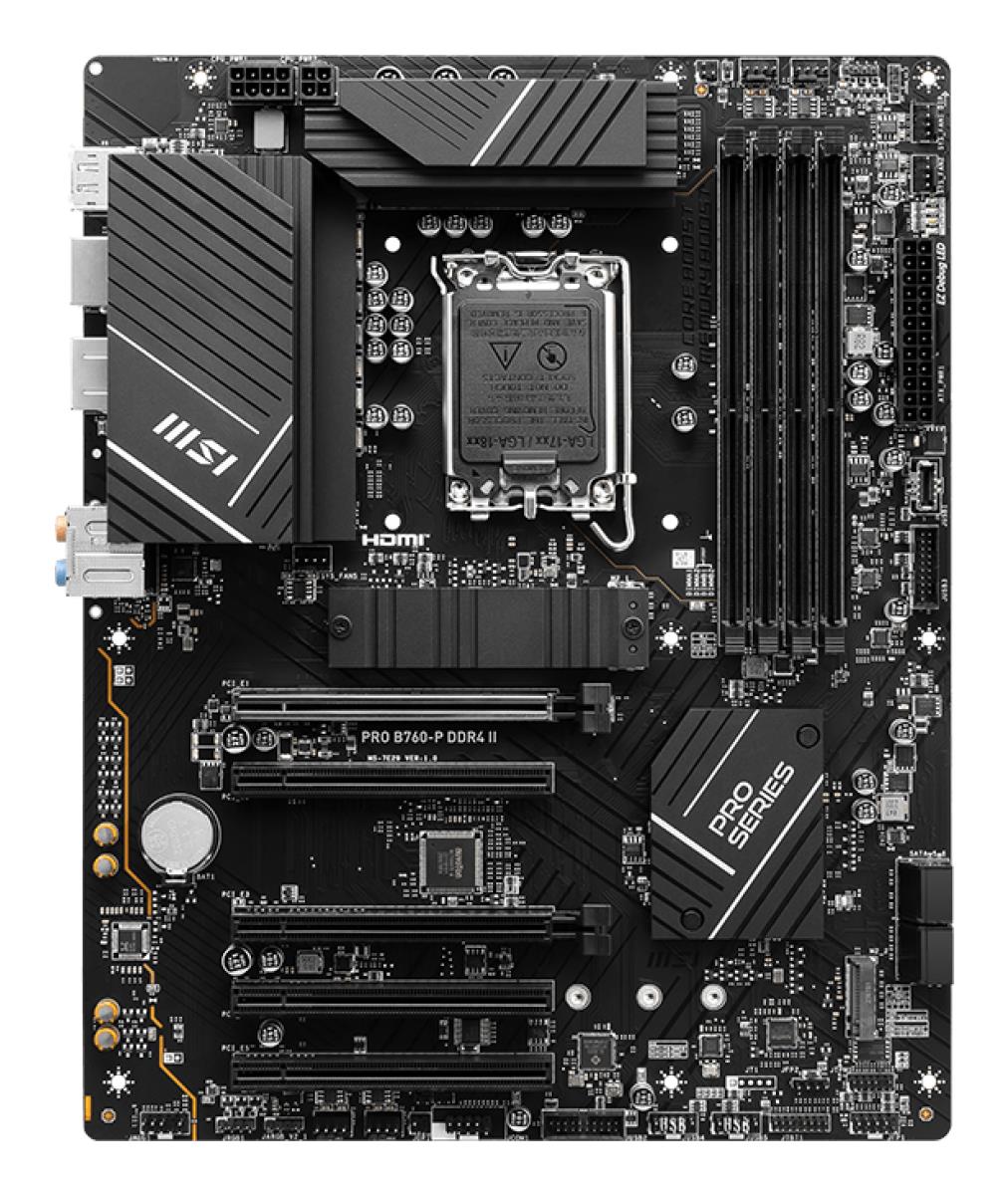

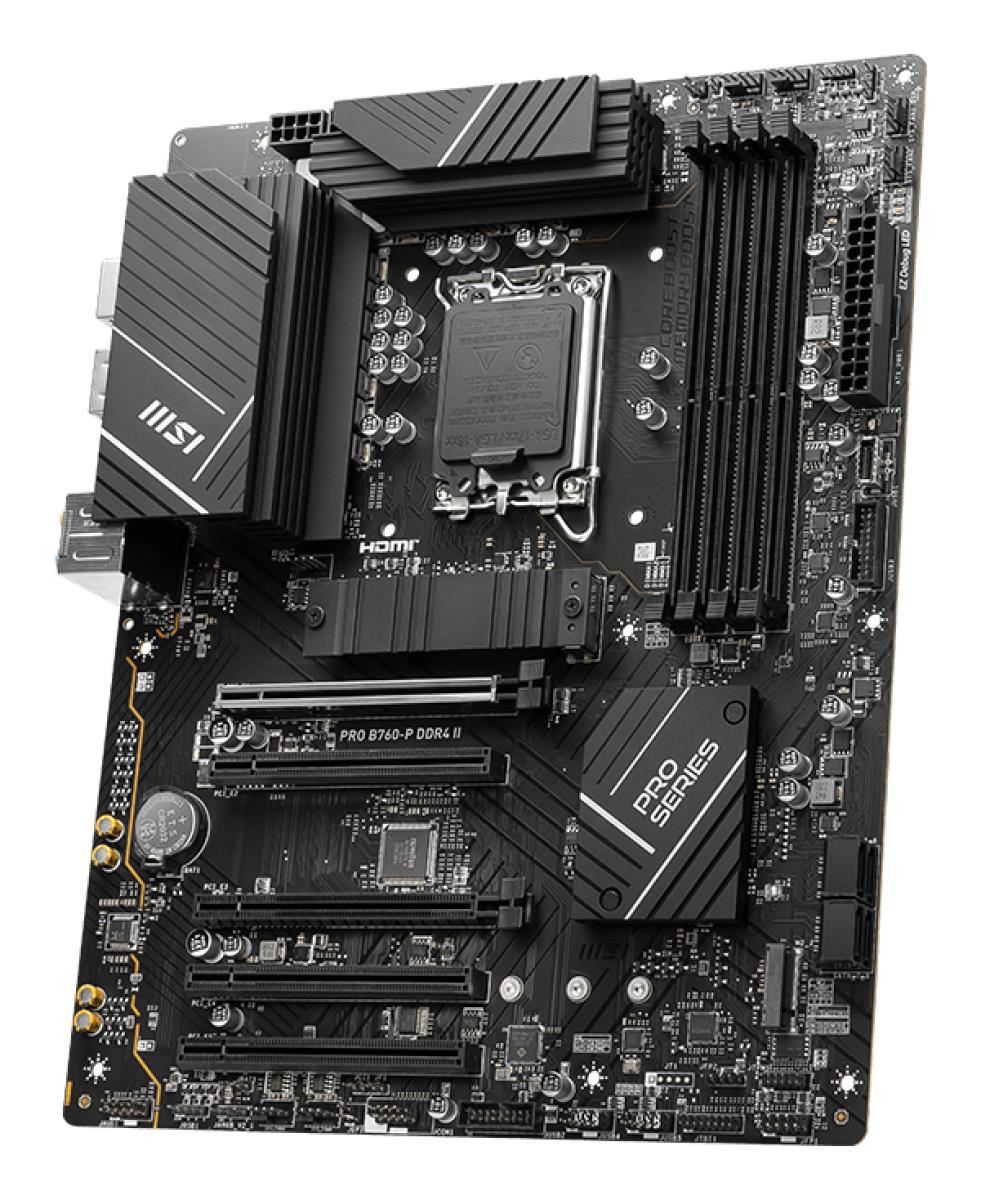

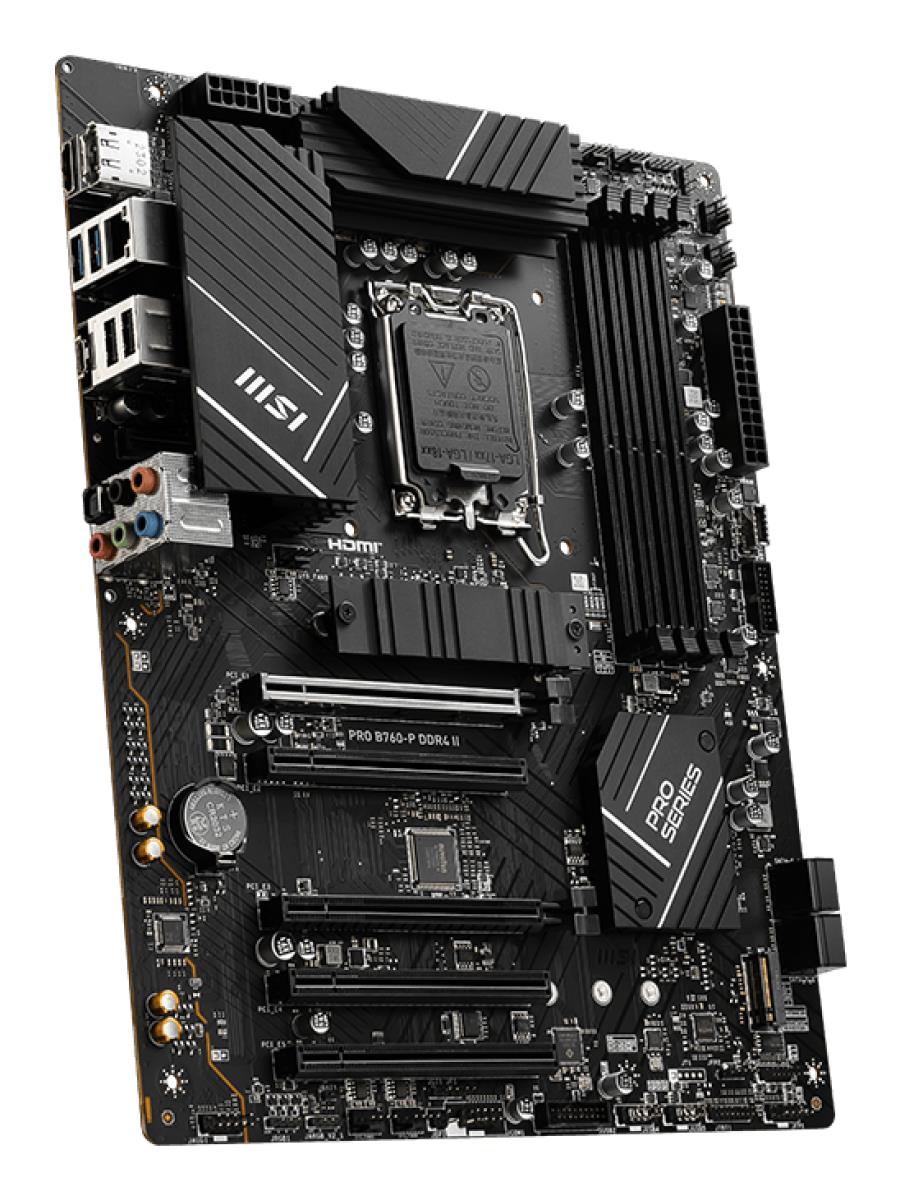

Motherboard Pro B760-p Ddr4 Ii LGA1700 Intel B760 4 X Ddr4 ATX
ITCurry #: 8632A159 | Article #: PRO B760-P DDR4 II-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
PRO B760-P DDR4 II is designed with tons of flexible tools with DDR4 memory version.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
| Processor | |
| Processorfabrikant | Intel |
| Processor socket | LGA 1700 |
| Compatibele processors | Intel© Celeron©, Intel© CoreT i3, Intel© CoreT i5, Intel© CoreT i7, Intel© Pentium© Gold |
| Geheugen | |
| Ondersteunde geheugen types | DDR4-SDRAM |
| Aantal geheugenslots | 4 |
| Geheugen slots type | DIMM |
| Geheugen kanaal | Dubbelkanaals |
| ECC ?ompatibility | Niet-ECC |
| Non-ECC | Ja |
| Ondersteunde geheugenkloksnelheid (max) | 5333 MHz |
| Maximum intern geheugen | 128 GB |
| Niet gebufferd geheugen | Ja |
| Opslag-controllers | |
| Ondersteunde opslagstationinterfaces | SATA III |
| RAID support | Ja |
| Soorten RAID | 0, 1, 5, 10 |
| Interne aansluitingen | |
| USB 2.0 aansluitingen | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 4 |
| USB 3.2-connectoren (3.1 Gen 2) | 1 |
| Aantal SATA III connectors | 4 |
| S/PDIF uitgang | Ja |
| Aansluiting voor audiopaneel aan voorzijde | Ja |
| Voorpaneel-connector | Ja |
| ATX Power connector (24-pin) | Ja |
| Aansluiting voor ventilator van voeding | Ja |
| Aansluiting voor CPU koeler | Ja |
| Chassis intrusion aansluiting | Ja |
| 12V vermogen-connector | Ja |

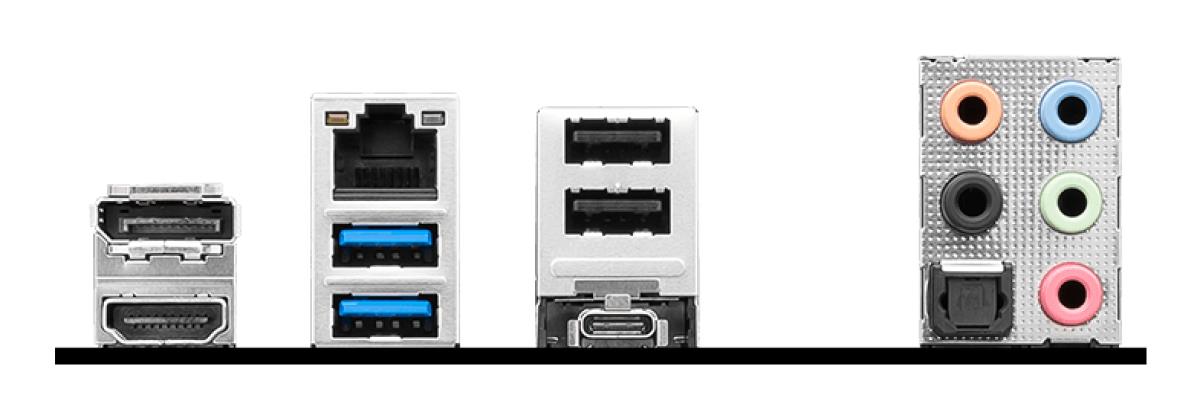

| Aansluitingen achterzijde | |
| Aantal USB 2.0-poorten | 4 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 2 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 1 |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Aantal HDMI-poorten | 1 |
| HDMI versie | 2.1 |
| Aantal DisplayPorts | 1 |
| DisplayPort versie | 1.4 |
| Netwerk | |
| Ethernet LAN | Ja |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125-BG |
| Wifi | Nee |
| Kenmerken | |
| Chipset moederbord | Intel B760 |
| Audiochip | Realtek ALC897 |
| Audio-uitgangskanalen | 7.1 kanalen |
| Component voor | PC |
| Moederbord form factor | ATX |
| Moederbord chipset familie | Intel |
| Ondersteunt Windows | Windows 10 x64, Windows 11 x64 |
| Uitbreidingsmodules | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x1 (Gen 4.x) sleuven | 2 |
| PCI Express x4 (Gen 4.x) sleuven | 1 |
| PCI Express x16 (Gen 4.x) sleuven | 1 |
| Aantal M.2 (M) slots | 2 |
| Gewicht en omvang | |
| Breedte | 243,8 mm |
| Diepte | 304,8 mm |
| Inhoud van de verpakking | |
| Meegeleverde kabels | SATA |
| Meegeleverde drivers | Ja |
| Warranty | |
| Base Warranty | Non Non |
