Motherboard Mpg Z890s Wi-Fi Am5 Intel Z890 Socket LGA 1851 4x Ddr5 ATX
ITCurry #: 8632A530 | Article #: PRO Z890-S WIFI-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
PRO Z890-S WIFI

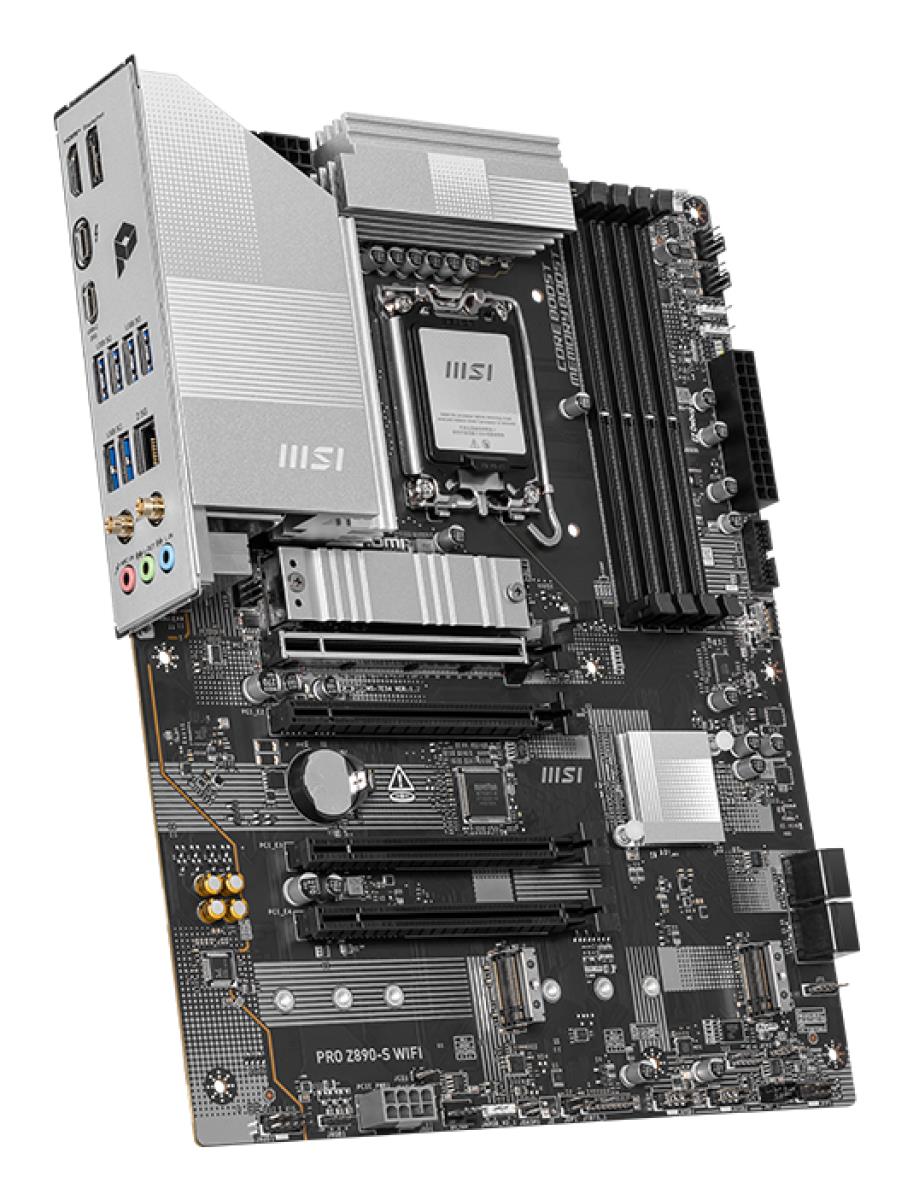

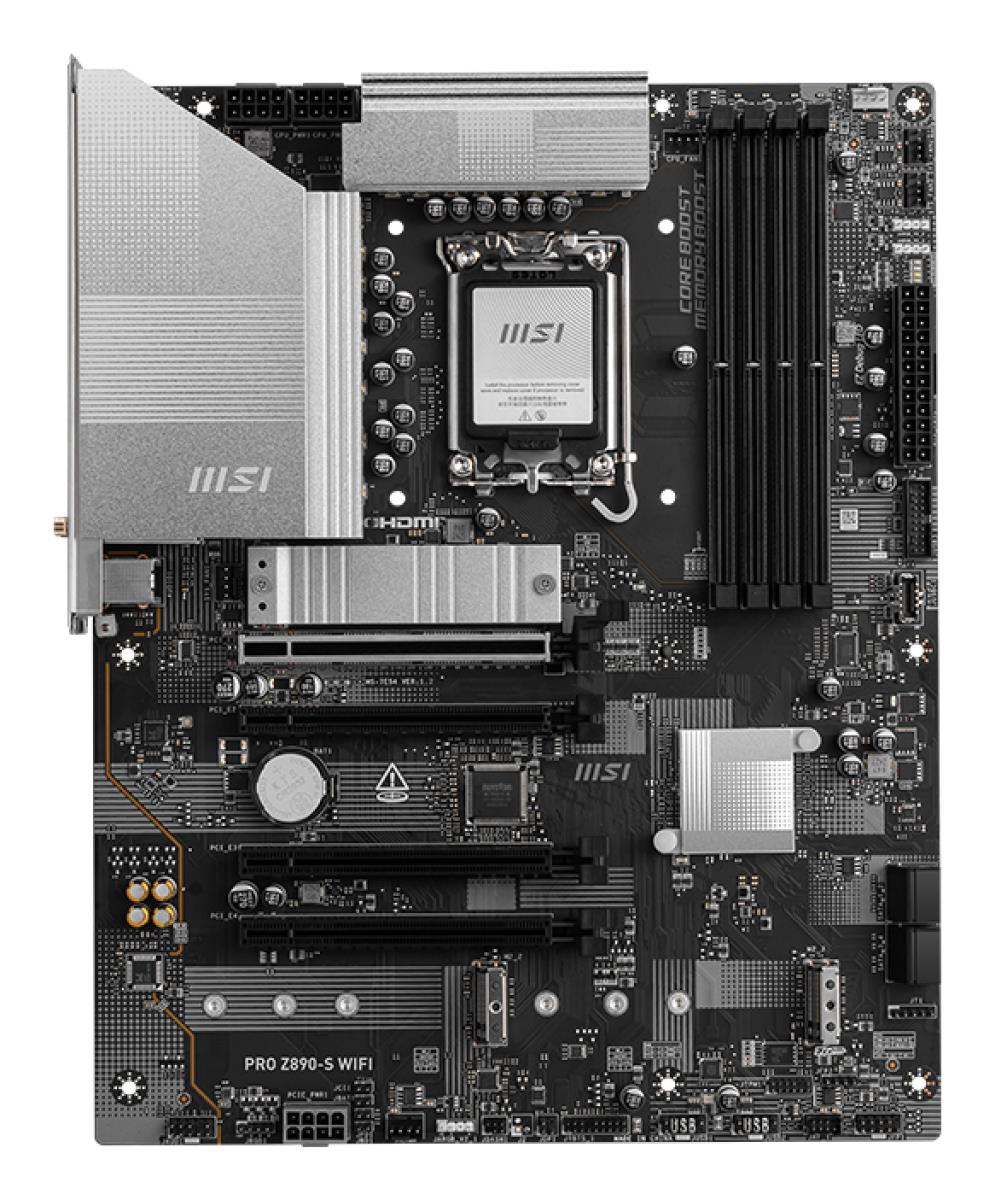

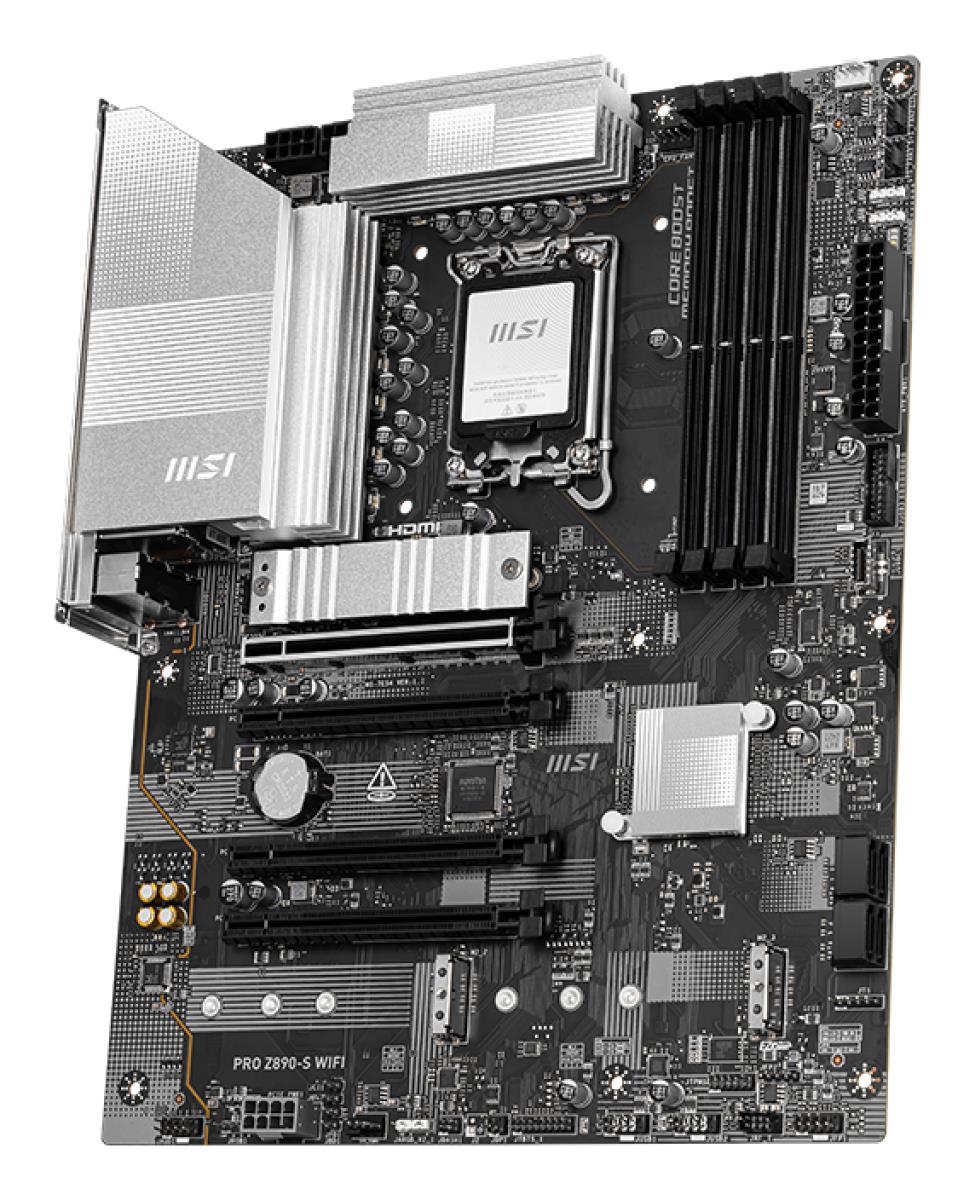

PRO Z890-S WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 2.5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
One Finger for EZ GPU Installation
The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.
12+1+1+1 DRPS POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 12+1+1+1 digital power phases. With dual power connectors, PRO Z890-S WIFI is ready for the challenge of high-end processors.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
| Processor | |
| Processorfabrikant | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatibele processors | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Maximaal intern geheugen ondersteund door processor | 256 GB |
| Geheugen | |
| Ondersteunde geheugen types | DDR5-SDRAM |
| Aantal geheugenslots | 4 |
| Geheugen slots type | DIMM |
| Geheugen kanaal | Dubbelkanaals |
| ECC-compatibiliteit | Niet-ECC |
| Supported memory clock speeds | 4800,6400,8600 MHz |
| Ondersteunde geheugenkloksnelheid (max) | 8600 MHz |
| Maximum intern geheugen | 256 GB |
| Opslag-controllers | |
| Ondersteunde types opslag-drives | HDD & SSD |
| Ondersteunde opslagstationinterfaces | M.2, SATA III |
| Maximum aantal HDD's per behuizing | 7 |
| Aantal storage drives ondersteund | 4 |
| RAID support | Ja |
| Soorten RAID | 0, 1, 5, 10 |
| Interne aansluitingen | |
| USB 2.0 aansluitingen | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 2 |
| USB 3.2-connectoren (3.1 Gen 2) | 1 |
| Aantal SATA III connectors | 4 |
| Totaal aantal SATA-connectoren | 4 |

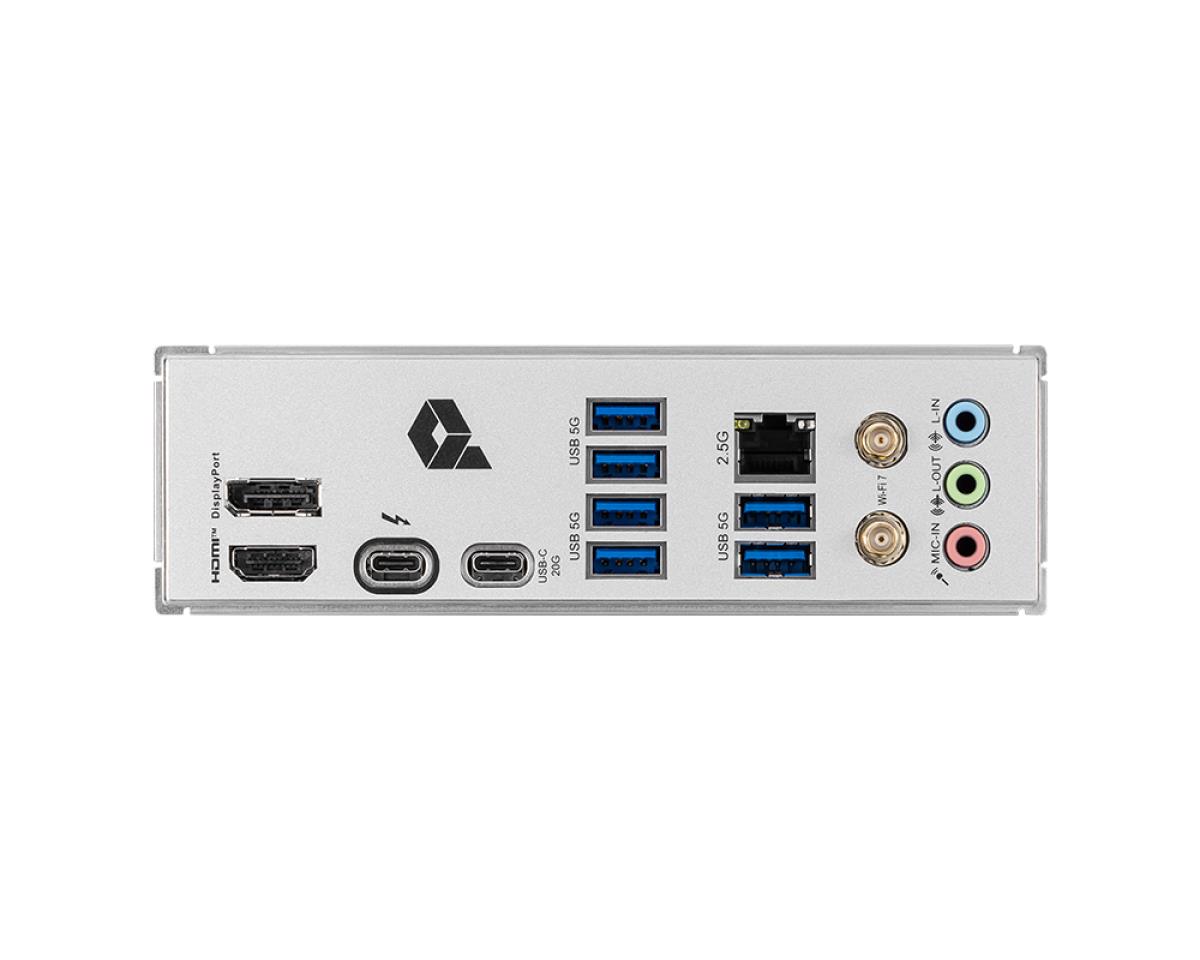

| Aansluitingen achterzijde | |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 6 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 1 |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Aantal HDMI-poorten | 1 |
| HDMI versie | 2.1 |
| Aantal DisplayPorts | 1 |
| DisplayPort versie | 1.4 |
| Hoeveelheid Thunderbolt ports | 1 |
| Netwerk | |
| Ethernet LAN | Ja |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wifi | Ja |
| Wifi-standaard | Wi-Fi 7 (802.11be) |
| Wi-Fi-standaarden | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Bluetooth | Ja |
| Bluetooth-versie | 5.4 |
| Kenmerken | |
| Chipset moederbord | Intel Z890 |
| Audiochip | Realtek ALC897 |
| Audio-uitgangskanalen | 7.1 kanalen |
| Kleur van het product | Zwart |
| PC gezondheids monitor | Ventilator, Temperatuur, Spanning |
| Component voor | PC |
| Moederbord form factor | ATX |
| Moederbord chipset familie | Intel |
| Ondersteunt Windows | Windows 11 x64 |
| Uitbreidingsmodules | |
| PCI Express x16 slots | 4 |
| Aantal M.2 (M) slots | 3 |
| Gewicht en omvang | |
| Breedte | 243,8 mm |
| Diepte | 304,8 mm |
| Warranty | |
| Base Warranty | Non Non |
