Motherboard Meg Z890 Ace Am5 Intel Z890 Socket LGA 1851 4x Ddr5 ATX
ITCurry #: 8632A525 | Article #: MEG Z890 ACE-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

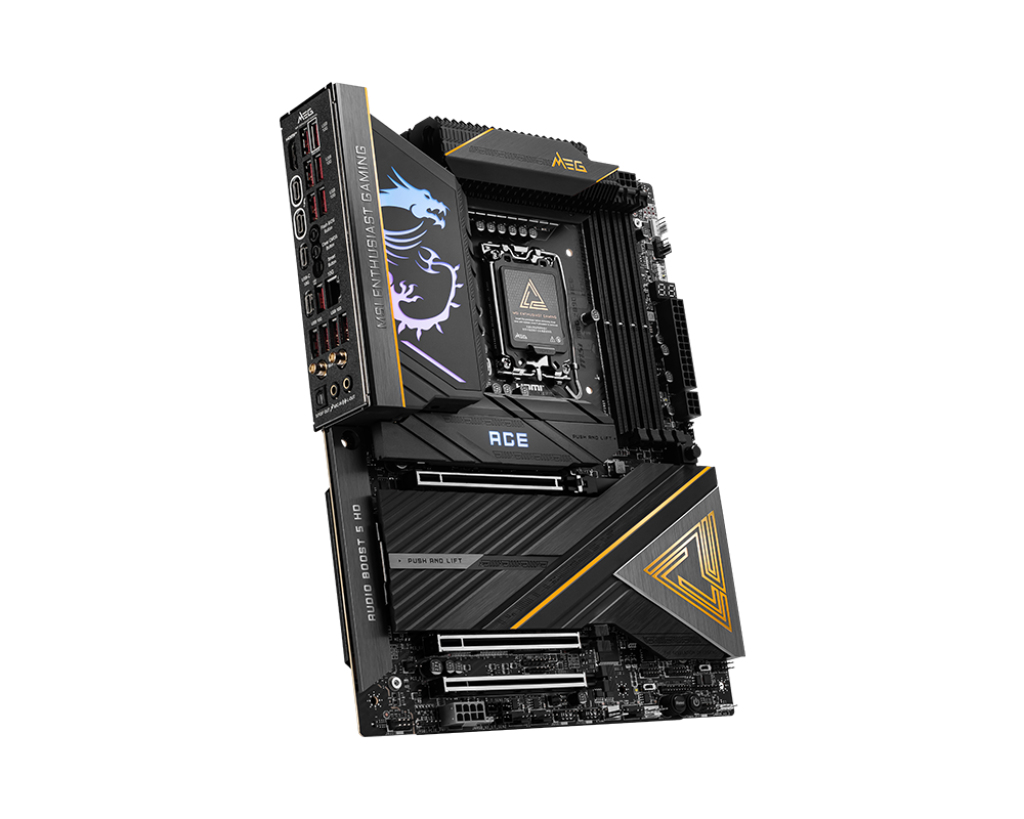

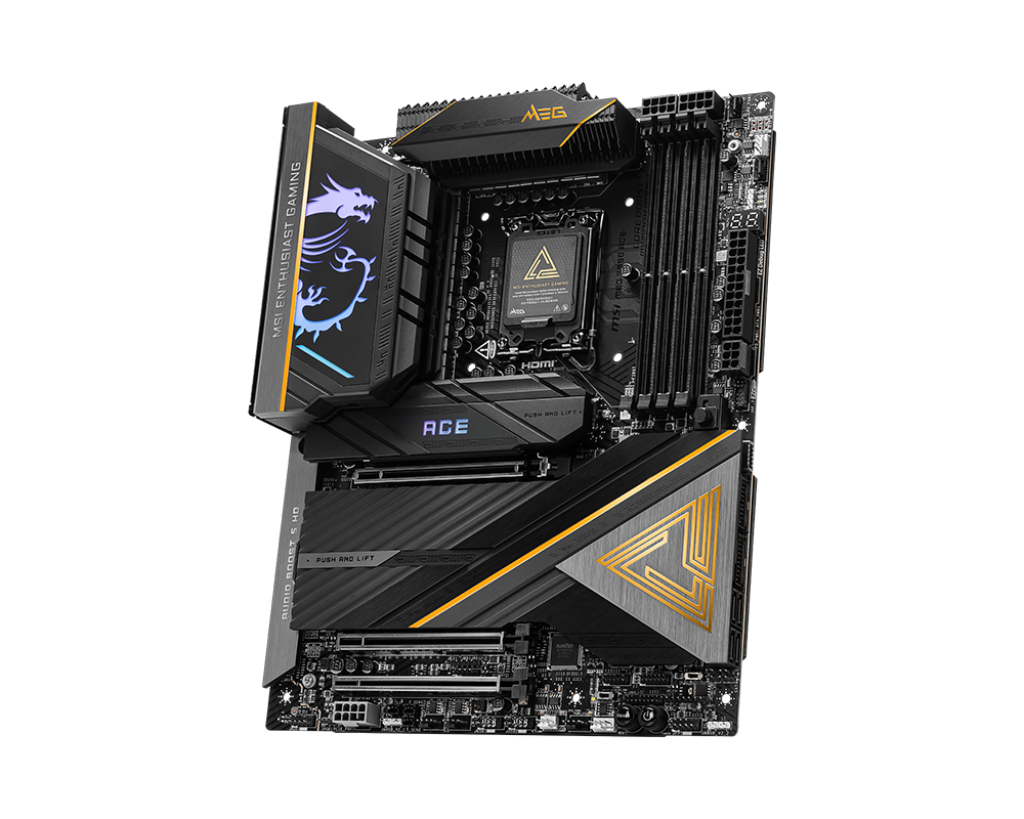

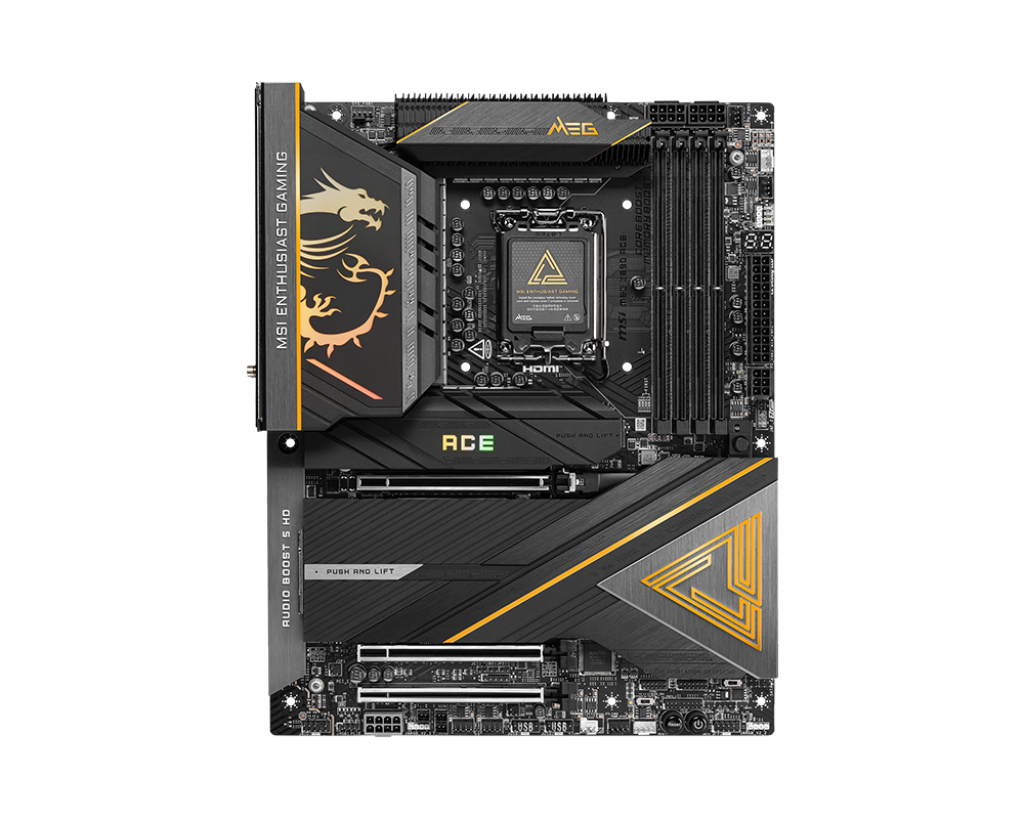

MEG Z890 ACE
Furnished premium aesthetics with its dark black finish and pale gold embellishes. Developed to unlock the full gaming potential of the Intel Core Ultra processor by combining elite hardware system support and premium durability, the MEG Z890 ACE is an outstanding ATX of Z890 platform for extreme settings in terms of overclocking the processor, DDR5 memory, and graphics card at the highest level.
The MSI ENTHUSIAST GAMING (MEG) series sets the new standard for gaming excellence, offering raw power and precision engineering with sophisticated design philosophy. Each product in the series is crafted to meet the highest standards of gaming performance and elegance, making it the ultimate gaming experience that every gamer dreams of.
With mythological power, divine imagery, and ancient lore woven into every aspect of the product line, the MEG series delivers an immersive and captivating gaming experience that is unmatched in sophistication and performance. It transcends being just a collection of products; it represents the pinnacle of gaming luxury, revolutionizing the gaming world and becoming the top choice for discerning gamers worldwide.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
24+2+1+1 DRPS POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of direct 24+2+1+1 digital power phases. Combining dual power connectors and 110A Smart Power Stage, MEG Z890 ACE is ready for the challenge of high-end processors.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
HIGH QUALITY AUDIO CAPACITORS
A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.
| Processor | |
| Processorfabrikant | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatibele processors | Intel Core Ultra (Series 2) |
| Supported processor sockets | Intel LGA1851 |
| Maximaal intern geheugen ondersteund door processor | 256 GB |
| Geheugen | |
| Ondersteunde geheugen types | DDR5-SDRAM |
| Aantal geheugenslots | 4 |
| Geheugen slots type | DIMM |
| Geheugen kanaal | Dubbelkanaals |
| Supported memory clock speeds | 4800,6400,9200 MHz |
| Ondersteunde geheugenkloksnelheid (max) | 9200 MHz |
| Maximum intern geheugen | 256 GB |
| Opslag-controllers | |
| Ondersteunde types opslag-drives | HDD & SSD |
| Ondersteunde opslagstationinterfaces | M.2, SATA III |
| Maximum aantal HDD's per behuizing | 9 |
| Aantal storage drives ondersteund | 4 |
| RAID support | Ja |
| Soorten RAID | 0, 5, 10 |
| Interne aansluitingen | |
| USB 2.0 aansluitingen | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 4 |
| USB 3.2-connectoren (3.1 Gen 2) | 1 |
| Aantal SATA III connectors | 4 |
| Totaal aantal SATA-connectoren | 4 |
| Aansluiting voor CPU koeler | Ja |

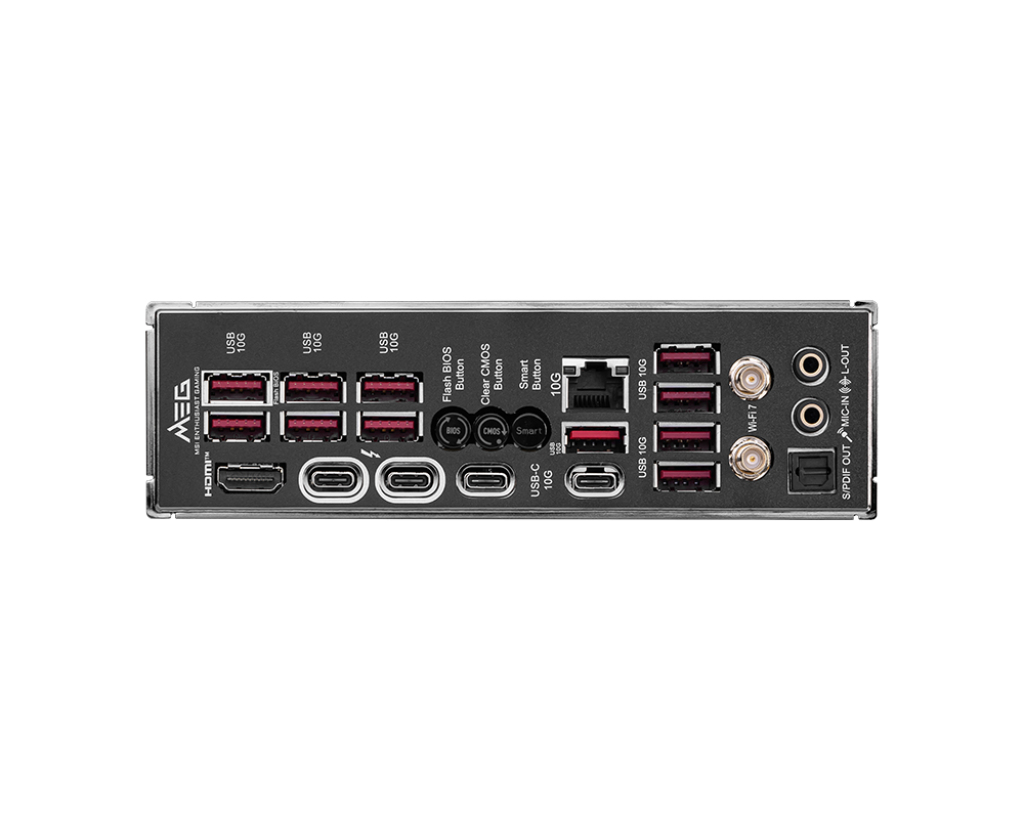

| Aansluitingen achterzijde | |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 11 |
| Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C | 2 |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Aantal HDMI-poorten | 1 |
| HDMI versie | 2.1 |
| Hoeveelheid Thunderbolt ports | 2 |
| Netwerk | |
| Ethernet LAN | Ja |
| Ethernet interface type | 10 Gigabit Ethernet |
| Wifi | Ja |
| Wifi-standaard | Wi-Fi 7 (802.11be) |
| Wi-Fi-standaarden | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN-controller-model | Killer Wi-Fi 7 BE1750 |
| Bluetooth | Ja |
| Bluetooth-versie | 5.4 |
| Kenmerken | |
| Chipset moederbord | Intel Z890 |
| Audiochip | Realtek ALC4082 |
| Audio-uitgangskanalen | 7.1 kanalen |
| Kleur van het product | Zwart |
| Component voor | PC |
| Moederbord form factor | ATX |
| Moederbord chipset familie | Intel |
| Ondersteunt Windows | Windows 11 x64 |
| Uitbreidingsmodules | |
| PCI Express x16 slots | 3 |
| Aantal M.2 (M) slots | 5 |
| Gewicht en omvang | |
| Breedte | 243,8 mm |
| Diepte | 304,8 mm |
| Warranty | |
| Base Warranty | Non Non |
