Motherboard Pro X870-p Carbon Wi-Fi Am5 Amd X870 Socket Am5 4x Ddr5 ATX
ITCurry #: 8632A523 | Article #: PRO X870-P WIFI-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

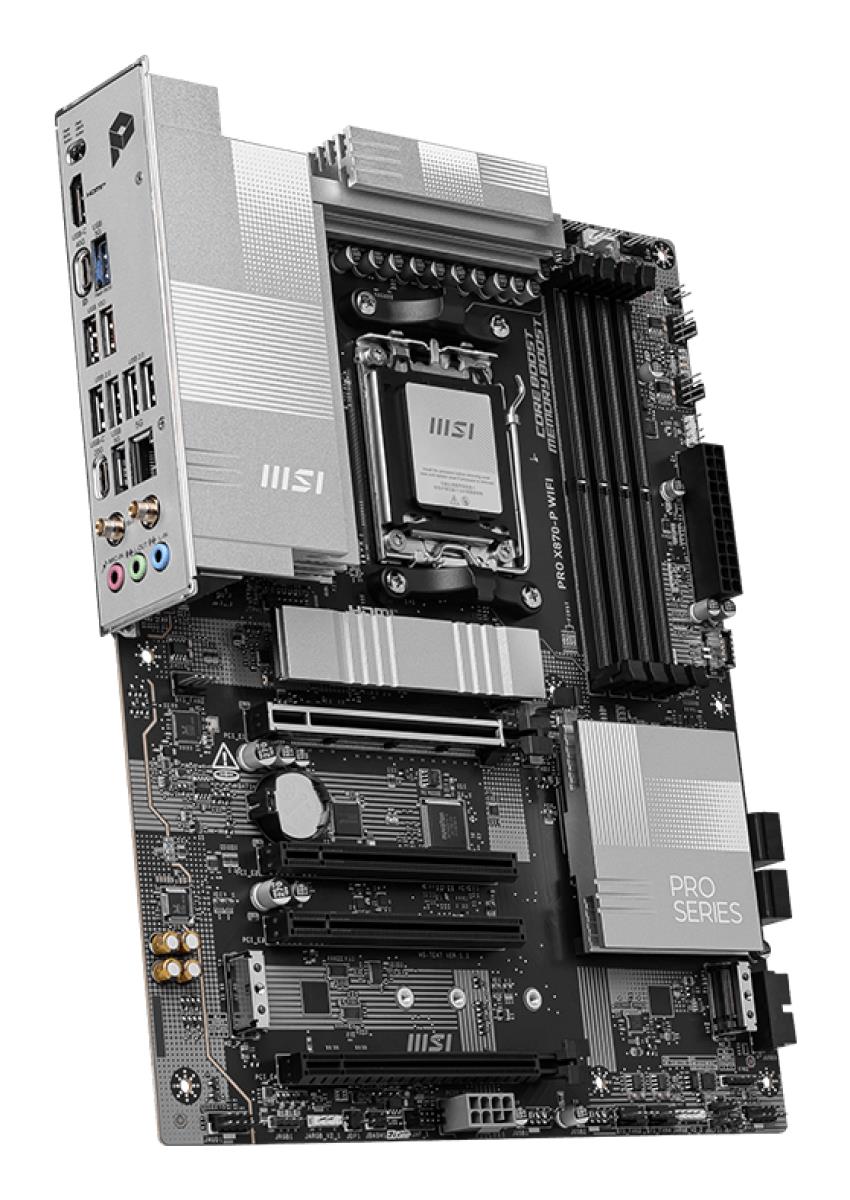

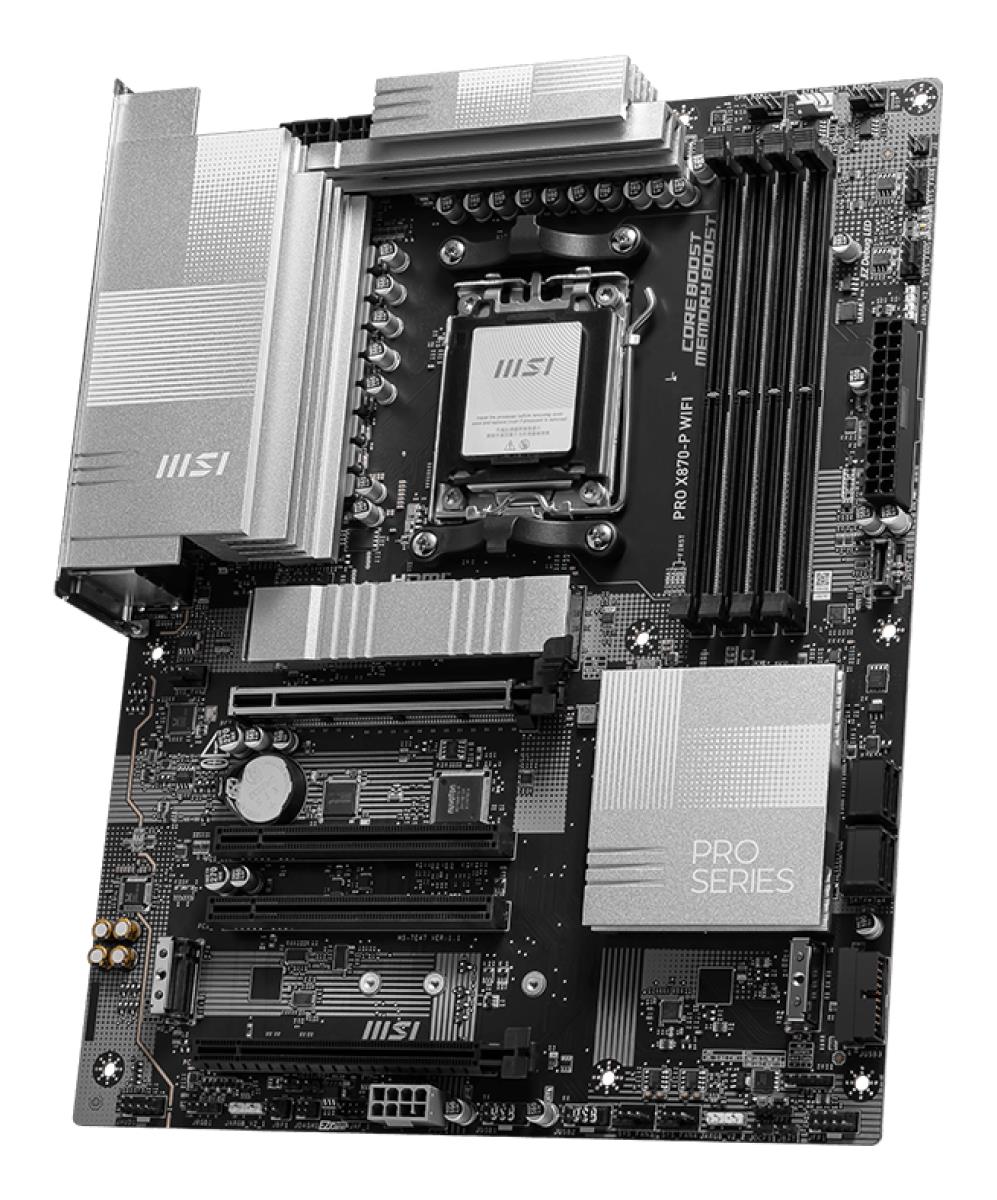

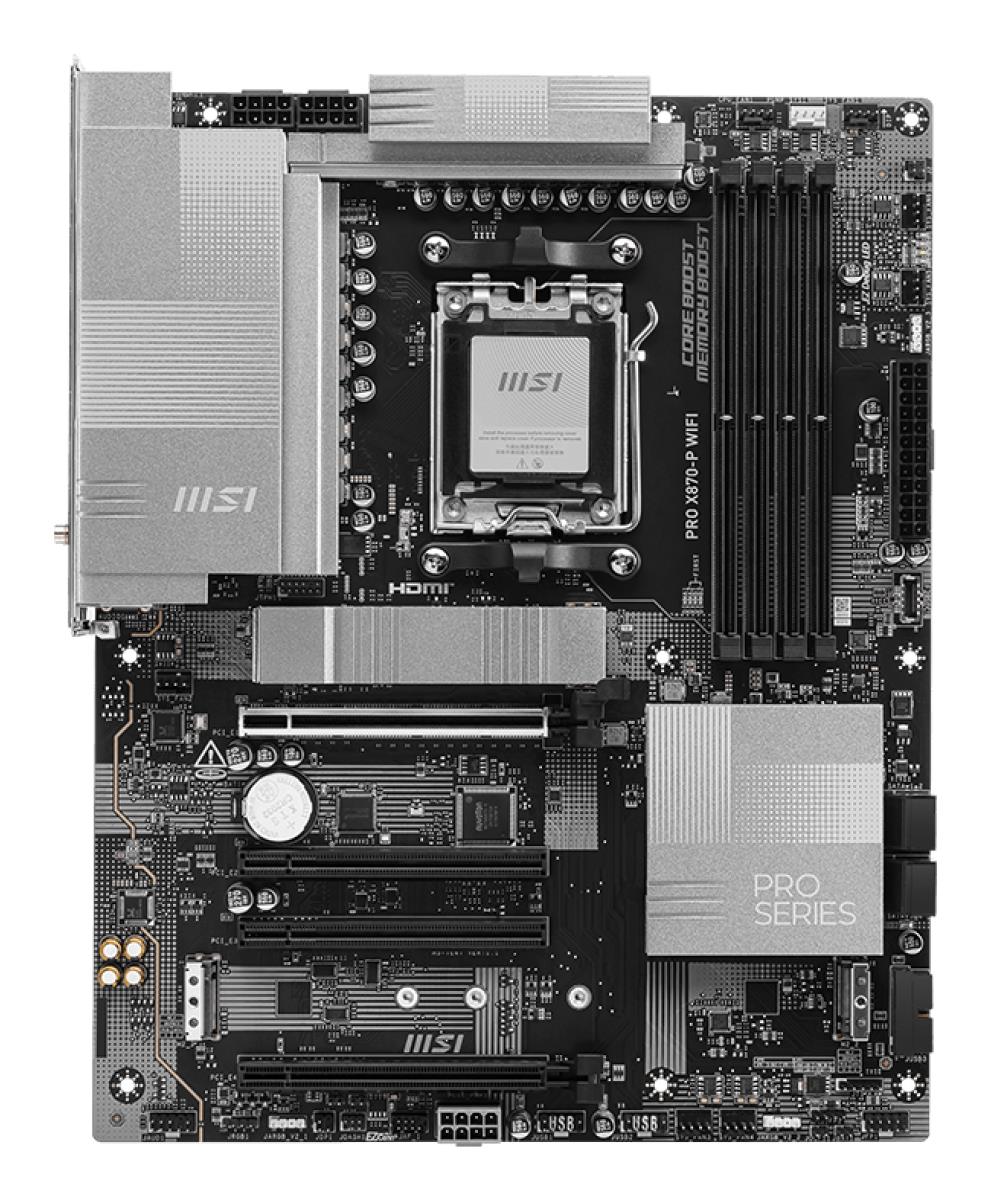

PRO X870-P WIFI
PRO X870-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
14+2+1 DRPS POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 60A Smart Power Stage, PRO X870-P WIFI is ready for the challenge of high-end processors.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
| Processor | |
| Processorfabrikant | AMD |
| Processor socket | Socket AM5 |
| Compatibele processors | AMD RyzenT 7 |
| Supported processor sockets | Socket AM5 |
| Maximaal intern geheugen ondersteund door processor | 256 GB |
| Geheugen | |
| Ondersteunde geheugen types | DDR5-SDRAM |
| Aantal geheugenslots | 4 |
| Geheugen slots type | DIMM |
| Geheugen kanaal | Dubbelkanaals |
| ECC ?ompatibility | Niet-ECC |
| Supported memory clock speeds | 4800,5600,8200 MHz |
| Ondersteunde geheugenkloksnelheid (max) | 8200 MHz |
| Maximum intern geheugen | 256 GB |
| Opslag-controllers | |
| Ondersteunde types opslag-drives | HDD & SSD |
| Ondersteunde opslagstationinterfaces | M.2, SATA III |
| Maximum aantal HDD's per behuizing | 7 |
| Aantal storage drives ondersteund | 4 |
| RAID support | Ja |
| Soorten RAID | 0, 1 |
| Grafisch | |
| Ingebouwde grafische adapter | Nee |
| Interne aansluitingen | |
| USB 2.0 aansluitingen | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 2 |
| USB 3.2-connectoren (3.1 Gen 2) | 1 |
| Aantal SATA III connectors | 4 |
| Totaal aantal SATA-connectoren | 4 |
| ATX Power connector (24-pin) | Ja |
| Aansluiting voor CPU koeler | Ja |
| EPS power connector (8-pin) | Ja |

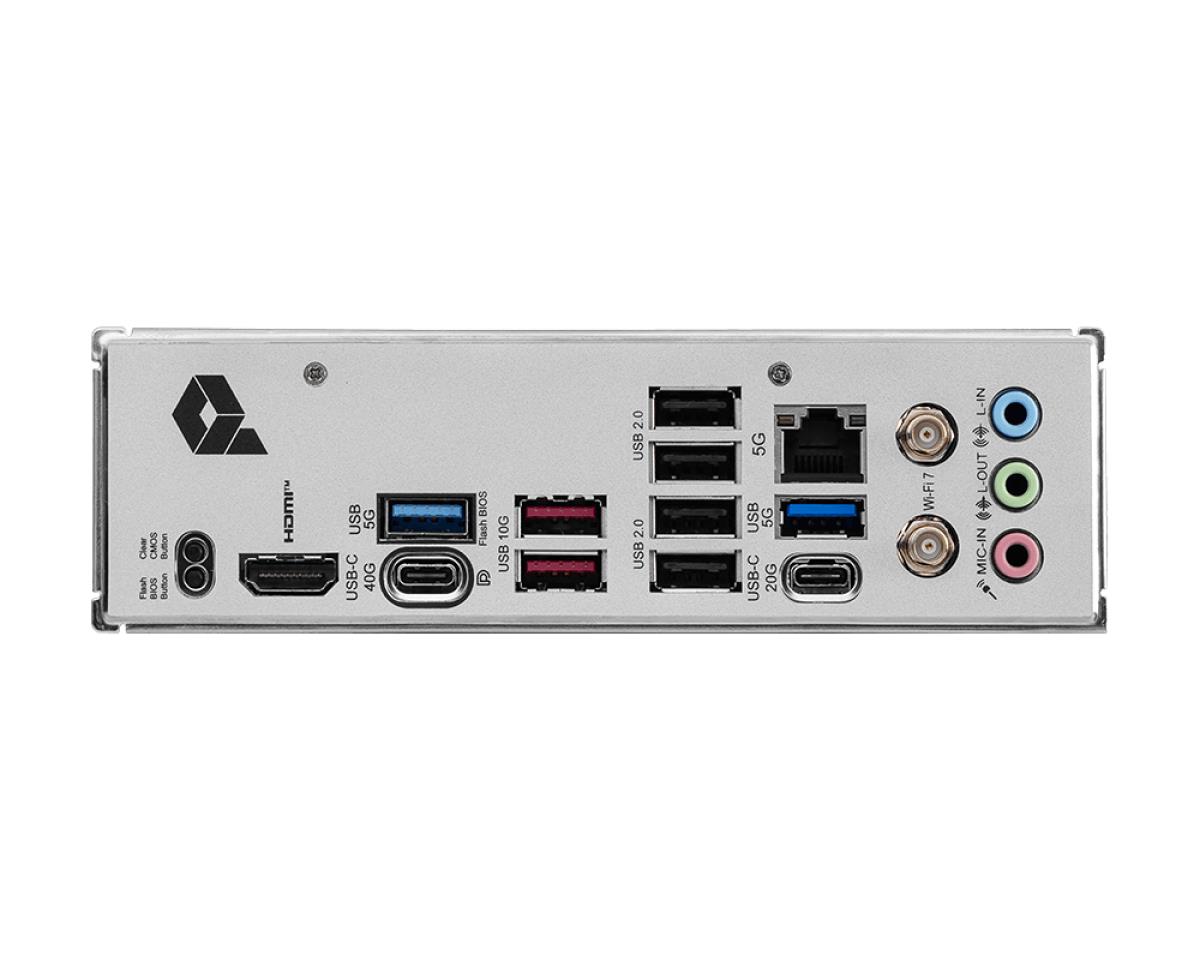

| Aansluitingen achterzijde | |
| Aantal USB 2.0-poorten | 4 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 2 |
| Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C | 1 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 2 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 1 |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Aantal HDMI-poorten | 1 |
| Aantal DisplayPorts | 2 |
| Microfoon, line-in ingang | Ja |
| S/PDIF-uitgang | Ja |
| Netwerk | |
| Ethernet LAN | Ja |
| Ethernet interface type | 5 Gigabit Ethernet |
| Wifi | Ja |
| Wifi-standaard | Wi-Fi 7 (802.11be) |
| Wi-Fi-standaarden | Wi-Fi 7 (802.11be) |
| Bluetooth | Ja |
| Bluetooth-versie | 5.4 |
| Kenmerken | |
| Chipset moederbord | AMD X870 |
| Audio-uitgangskanalen | 7.1 kanalen |
| Kleur van het product | Zwart |
| PC gezondheids monitor | CPU, Ventilator, Temperatuur, Spanning |
| Component voor | PC |
| Moederbord form factor | ATX |
| Moederbord chipset familie | AMD |
| Ondersteunt Windows | Windows 11 x64 |
| Uitbreidingsmodules | |
| PCI Express x16 slots | 4 |
| Aantal M.2 (M) slots | 3 |
| Gewicht en omvang | |
| Breedte | 243,8 mm |
| Diepte | 304,8 mm |
| Warranty | |
| Base Warranty | Non Non |
