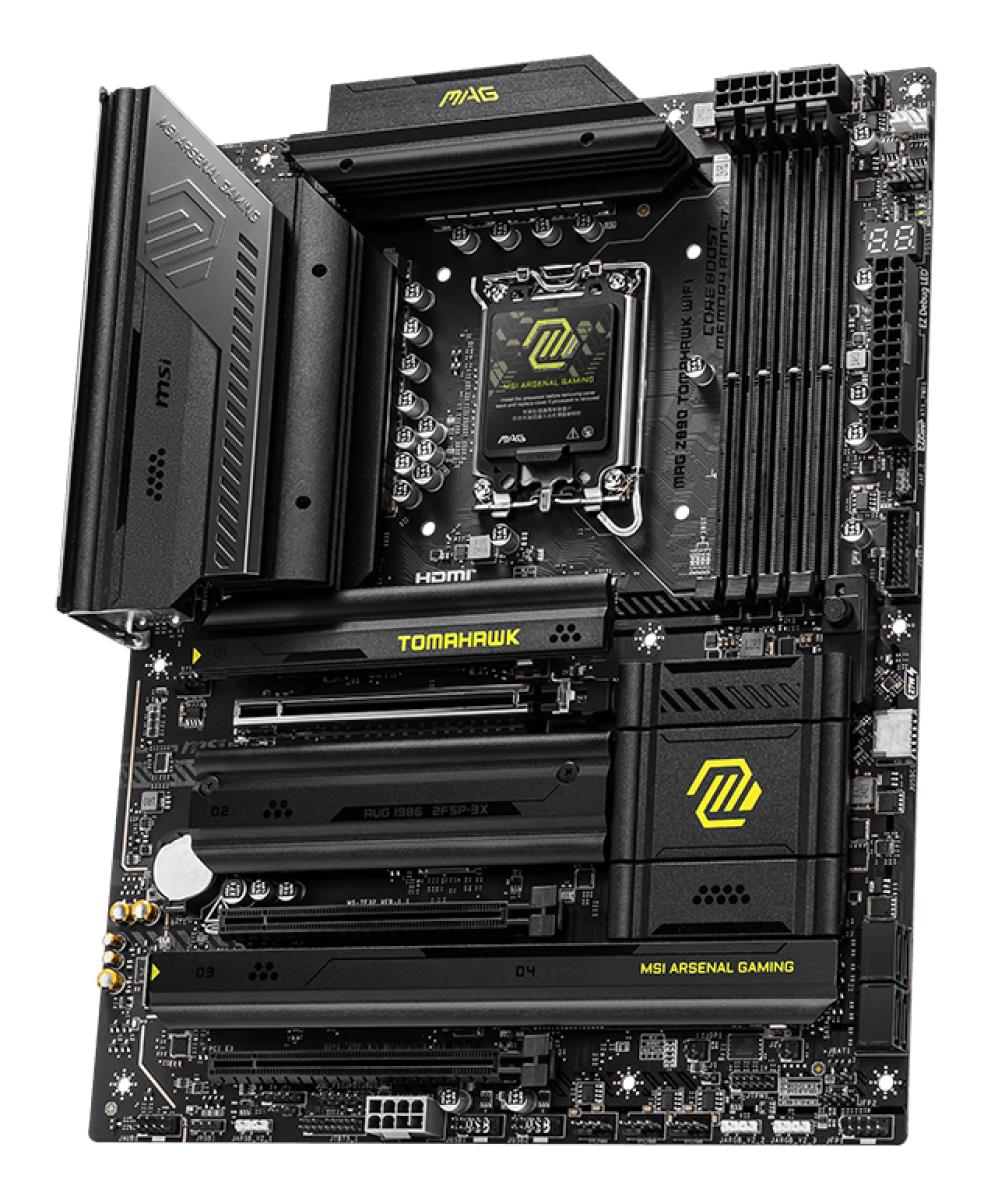

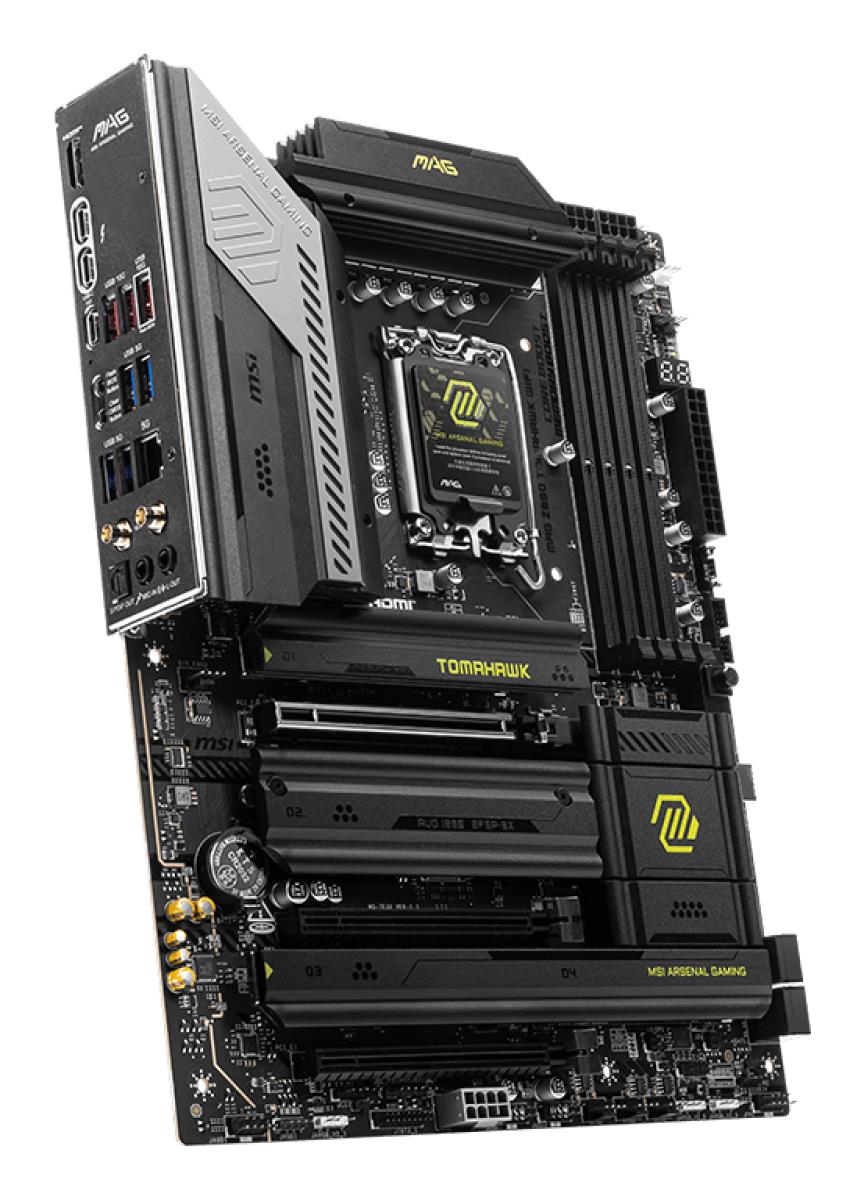

Motherboard Mag Z890 Tomahawk Wi-Fi Am5 Intel Z890 Socket LGA 1851 4x Ddr5 ATX
ITCurry #: 8632A524 | Article #: MAGZ890TOMAHAWKWIF-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
MAG Z890 TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for the battlefield of Intel Core Ultra processors.
The MSI ARSENAL GAMING (MAG) series is engineered to give gamers the edge they need to dominate on the virtual battlefield. Inspired by the rugged durability and unwavering reliability of military-grade equipment, the MAG series is built to provide an unwavering defense in every gaming scenario.
However, MAG isn't just about performance; it's a design language that conveys ruggedness and toughness, embodying the very essence of the MAG style. For gamers who are determined to dominate their digital battlegrounds, the MAG series is here to stand with you, establishing the ultimate defense.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
16+1+1+1 Duet Rail Power System
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy gaming loadings.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
| Processor | |
| Processorfabrikant | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatibele processors | Intel Core Ultra (Series 2) |
| Supported processor sockets | Intel LGA1851 |
| Maximaal intern geheugen ondersteund door processor | 256 GB |
| Geheugen | |
| Ondersteunde geheugen types | DDR5-SDRAM |
| Aantal geheugenslots | 4 |
| Geheugen slots type | DIMM |
| Geheugen kanaal | Dubbelkanaals |
| ECC-compatibiliteit | Niet-ECC |
| Supported memory clock speeds | 6400,9200 MHz |
| Ondersteunde geheugenkloksnelheid (max) | 9200 MHz |
| Maximum intern geheugen | 256 GB |
| Opslag-controllers | |
| Ondersteunde types opslag-drives | HDD & SSD |
| Ondersteunde opslagstationinterfaces | M.2, SATA III |
| Maximum aantal HDD's per behuizing | 8 |
| Aantal storage drives ondersteund | 4 |
| RAID support | Ja |
| Soorten RAID | 0, 5, 10 |
| Grafisch | |
| Ingebouwde grafische adapter | Nee |
| Interne aansluitingen | |
| USB 2.0 aansluitingen | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 2 |
| USB 3.2-connectoren (3.1 Gen 2) | 1 |
| Aantal SATA III connectors | 4 |
| Totaal aantal SATA-connectoren | 4 |
| ATX Power connector (24-pin) | Ja |
| Aansluiting voor CPU koeler | Ja |
| EPS power connector (8-pin) | Ja |
| Aantal EPS-voedingsaansluitingen (8-pins) | 1 |

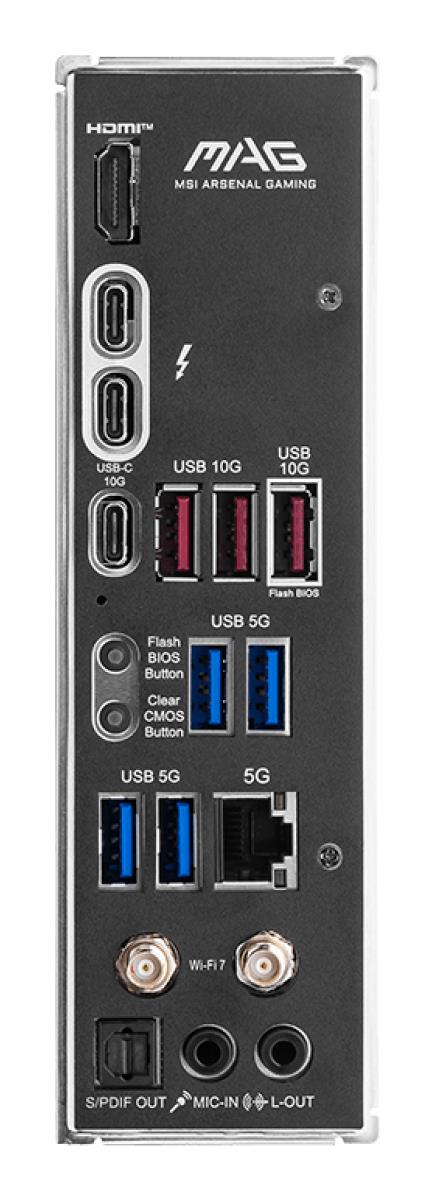

| Aansluitingen achterzijde | |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 4 |
| Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C | 1 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 3 |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Aantal HDMI-poorten | 1 |
| HDMI versie | 2.1 |
| Hoeveelheid Thunderbolt ports | 2 |
| Netwerk | |
| Ethernet LAN | Ja |
| Ethernet interface type | 5 Gigabit Ethernet |
| Wifi | Ja |
| Wifi-standaard | Wi-Fi 7 (802.11be) |
| Wi-Fi-standaarden | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN-controller-model | Killer Wi-Fi 7 BE1750 |
| Bluetooth | Ja |
| Bluetooth-versie | 5.4 |
| Kenmerken | |
| Chipset moederbord | Intel Z890 |
| Audiochip | Realtek ALC1220P |
| Audio-uitgangskanalen | 7.1 kanalen |
| Kleur van het product | Zwart |
| Component voor | PC |
| Moederbord form factor | ATX |
| Moederbord chipset familie | Intel |
| Ondersteunt Windows | Windows 11 |
| Uitbreidingsmodules | |
| PCI Express x4 (Gen 4.x) sleuven | 2 |
| PCI Express x16 (Gen 5.x) sleuven | 1 |
| Aantal M.2 (M) slots | 4 |
| Gewicht en omvang | |
| Breedte | 243,8 mm |
| Diepte | 304,8 mm |
| Warranty | |
| Base Warranty | Non Non |
