HPE SN6630C 32GB 96-port/96-port 32GB SFP+ Fibre Channel Switch
ITCurry #: 1171YG78 | Article #: R4D92A-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Are you looking to modernize your storage network?

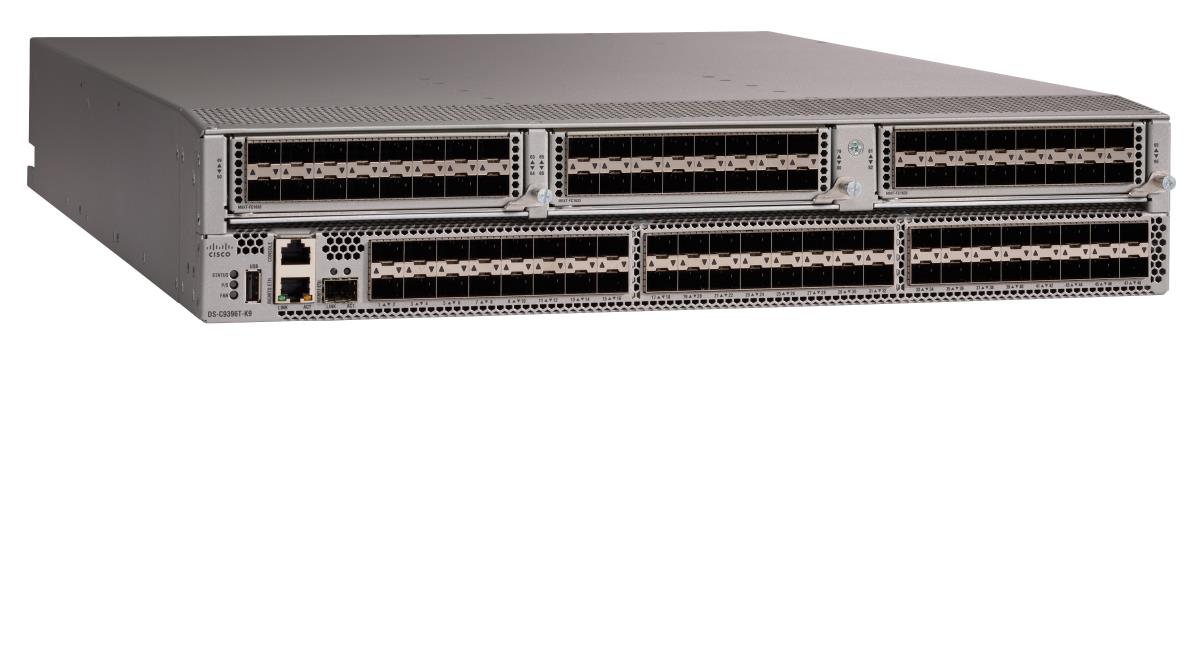

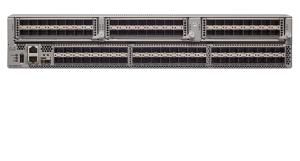

The all-flash data center and emerging NVMe storage requires a modern storage network that can keep up with pace of innovation seen with compute and storage resources. The HPE C-series SN6630C 96-port 32Gb Fibre Channel (FC) Switch is the next generation 96-port 2-rack unit FC switch that provides high-speed Fibre Channel connectivity in the SAN. This switch offers state-of-art analytics and telemetry capability built into its next-generation Application-Specific Integrated Circuit (ASIC) platform. The Non-Volatile Memory express (NVMe)-ready switch allows a seamless transition to Fibre Channel Non-Volatile Memory Express (FC-NVMe) workloads whenever available without any hardware upgrade in the SAN. This high-density, highly reliable, and scalable, enterprise-class switch is ideal for medium to large departmental SANs.
Features
High-speed Flash-ready Performance
- HPE C-series SN6630C Fibre Channel Switch with centralized non-blocking arbitration, provides consistent 32 Gbps low-latency performance across traffic conditions for every Fibre Channel port on the switch.
- Delivers increased performance with an aggregate bandwidth of 3 Tbps for growing and dynamic workloads.
- It offers state-of-the-art SAN Insights (analytics) and telemetry capabilities that have been built into this next-generation hardware platform.
- FC-NVMe-ready SAN switch with enhanced buffer-to-buffer (B2B) credits connecting both storage and host ports and FC link encryption.
More Flexibility
- HPE C-series SN6630C Fibre Channel Switch provides an option to deploy as few as 48 32-Gbps FC ports in the entry-level variant, and then grow in increments of 16 ports to up to 96 ports. This allows four possible configurations of 48, 64, 80, and 96 ports.
- The 32 Gbps ports allow users to deploy them on existing 16 or 8 Gbps transceivers, reducing initial CapEx and investment protection with an option to upgrade to 32 Gbps transceivers and adapters whenever needed.
- Increased fabric scalability provides more flexibility for a variety of SAN architectures.
Easy Manageability
- HPE C-series SN6630C Fibre Channel Switch supports enhanced diagnostic features such as inter-switch link (ISL) and host-bus-adapter (HBA) diagnostics, read diagnostic parameters, link cable beacon, and advanced reliability features such as forward error correction (FEC) with HBA ports.
- Cisco Data Center Network Manager Essentials Edition software, included with the switch, provides a centralized management tool with task-based wizards that simplifies management of switches and fabrics. Additional advanced features are available with the DCNM licensed version, sold separately.
- Cisco SAN Insights delivers deep visibility into I/O traffic between the compute and the storage infrastructure. This information is in addition to the already-available visibility obtained from individual ports, switches, servers, virtual machines, and storage arrays.
Intelligent Network Services for SAN
- HPE C-series SN6630C Fibre Channel Switch supports slow-drain detection and isolation, virtual SAN (vSAN) technology, access control lists for hardware-based intelligent frame processing, smart zoning, and other various services.
- Provides visibility into all virtual machines that are accessing the storage LUNs in the fabric and offers an end-to-end view for analytics.
- Delivers powerful representational state transfer (REST) and NX-API capabilities to enable flexible and rapid programming of utilities for the SAN.
| Warranty | |
| Base Warranty | Non Non |
| Beheerfuncties | |
| Switch type | Managed |
| Quality of Service (QoS) | Ja |
| Poorten & interfaces | |
| Type basis-switching RJ-45 Ethernet-poorten | Nee |
| Aantal ge‹nstalleerde SFP+ modules | 96 |
| Aantal moduleslots SPF+ | 96 |
| Netwerk | |
| Auto-sensing | Ja |
| Beveiliging | |
| Access Control List (ACL) | Ja |
| Ondersteunde beveiligingsalgoritmen | 256-bit AES |
| SSH/SSL support | Ja |
| Authenticatie type | RADIUS |
| Protocollen | |
| Beheerprotocollen | CLI, SSH 2, SNMP, SNMP 3, SMI-S |
| Design | |
| Rack-montage | Ja |
| Vormfactor | 2U |
| Kleur van het product | Grijs |
| Energie | |
| Vermogenstoevoer inclusief | Ja |
| Redundante voeding | Ja |
| Aantal voedingen | 2 |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Gewicht en omvang | |
| Breedte | 442,5 mm |
| Diepte | 565,9 mm |
| Hoogte | 86,1 mm |
| Gewicht | 18,9 kg |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
