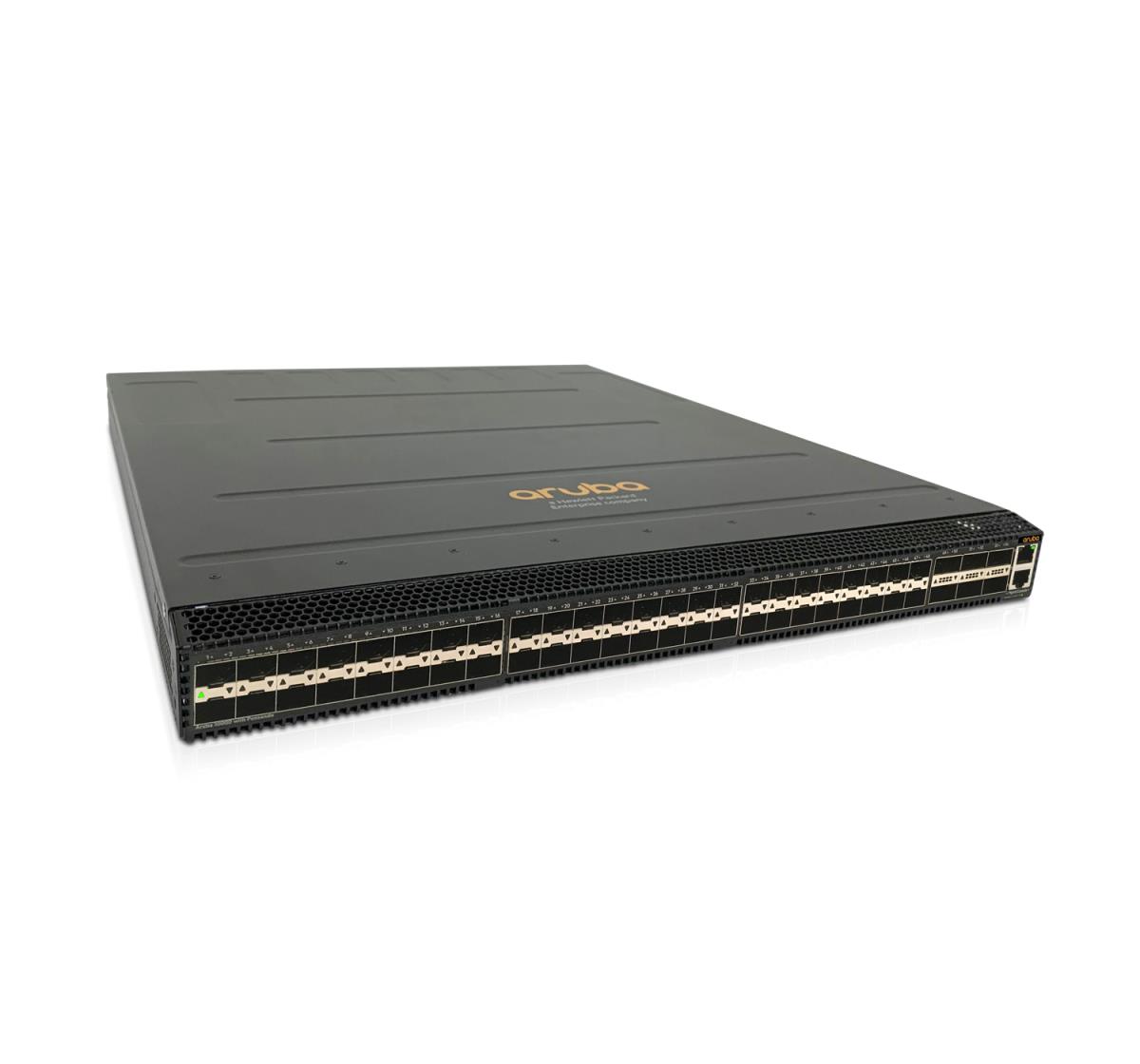

Aruba CX 10000-48Y6C Distributed Services Back-to-Front 6 Fans 2 Power Supplies Bundle
ITCurry #: 1171ZX09 | Article #: R8P14A#ABB-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
HPE Aruba Networking CX 10000 Switch Series, industry's first DPU-enabled switches, delivers a flexible and innovative approach to address the security performance, agility, and scalability demands of both traditional enterprise data centers and emerging distributed, edge and co-located centers of data. The CX 10000 Series is a category of switches that combines the best-of-breed network operating system, HPE Aruba Networking CX switch operating system (AOS-CX), for data center, campus, and edge in addition to the fully programmable DPUs. This allows the switches to deliver software-defined services inline, at scale, with wire-rate performance and orders of magnitude scale and performance improvements over traditional L2/L3 switches at a fraction of their TCO. This allows the flexibility to enable service delivery, when deployed as access, leaf top of rack (ToR), or end of row (EoR) in a data center, and potentially in the aggregation layer in campus or edge data center designs.
What is new supporting point:
Security ecosystem integration with third-party vendors
Leverages existing AOS-CX Cloud Native Switching
Unified network and security policy through HPE Aruba Networking Fabric Composer
CX 10000 offer 3.2 Tbps of switching capacity supporting 1/10/25 GbE CX 10040 offer 8 Tbps of switching capacity supporting 32x100G, 6x400G connectivity
A category of distributed services switch with embedded programmable DPUs overcoming legacy network and security design limitations
Distributed stateful segmentation, east–west firewalling, NAT, encryption, and telemetry services — all delivered inline
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L3 |
| Quality of Service (QoS) | Ja |
| Poorten & interfaces | |
| Type basis-switching RJ-45 Ethernet-poorten | Nee |
| Vezel-optische connector | QSFP28, SFP28 |
| Console port | RJ-45/Micro-USB |
| Aantal QSFP28-poorten | 6 |
| Aantal SFP28-poorten | 48 |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x, IEEE 802.3z |
| 10G support | Ja |
| Port mirroring | Ja |
| Datastroombeheer | Ja |
| Verbindingsaggregatie | Ja |
| Spanning tree protocol | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 1000,10000,25000,40000,100000 Mbit/s |
| VLAN=ondersteuning | Ja |
| Virtuele LAN-functies | Port-based VLAN |
| Aantal VLANs | 4018 |
| Data-uitwisseling | |
| Switchingcapaciteit | 3600 Gbit/s |
| Throughput | 1940 Mpps |
| MAC-adrestabel | 98304 entries |
| Packet buffergeheugen | 32 MB |
| Beveiliging | |
| DHCP-functies | DHCP server |
| IGMP snooping | Ja |
| Authenticatie type | RADIUS, TACACS+ |
| Multicast-functies | |
| IPv4-multicast-vermeldingen | 4094 |
| IPv6-multicast-vermeldingen | 4094 |
| Protocollen | |
| Routing protocols | BGP4, OSPF, OSPFv3, RIP-2, RIPng |
| Design | |
| Rack-montage | Ja |
| Vormfactor | 1U |

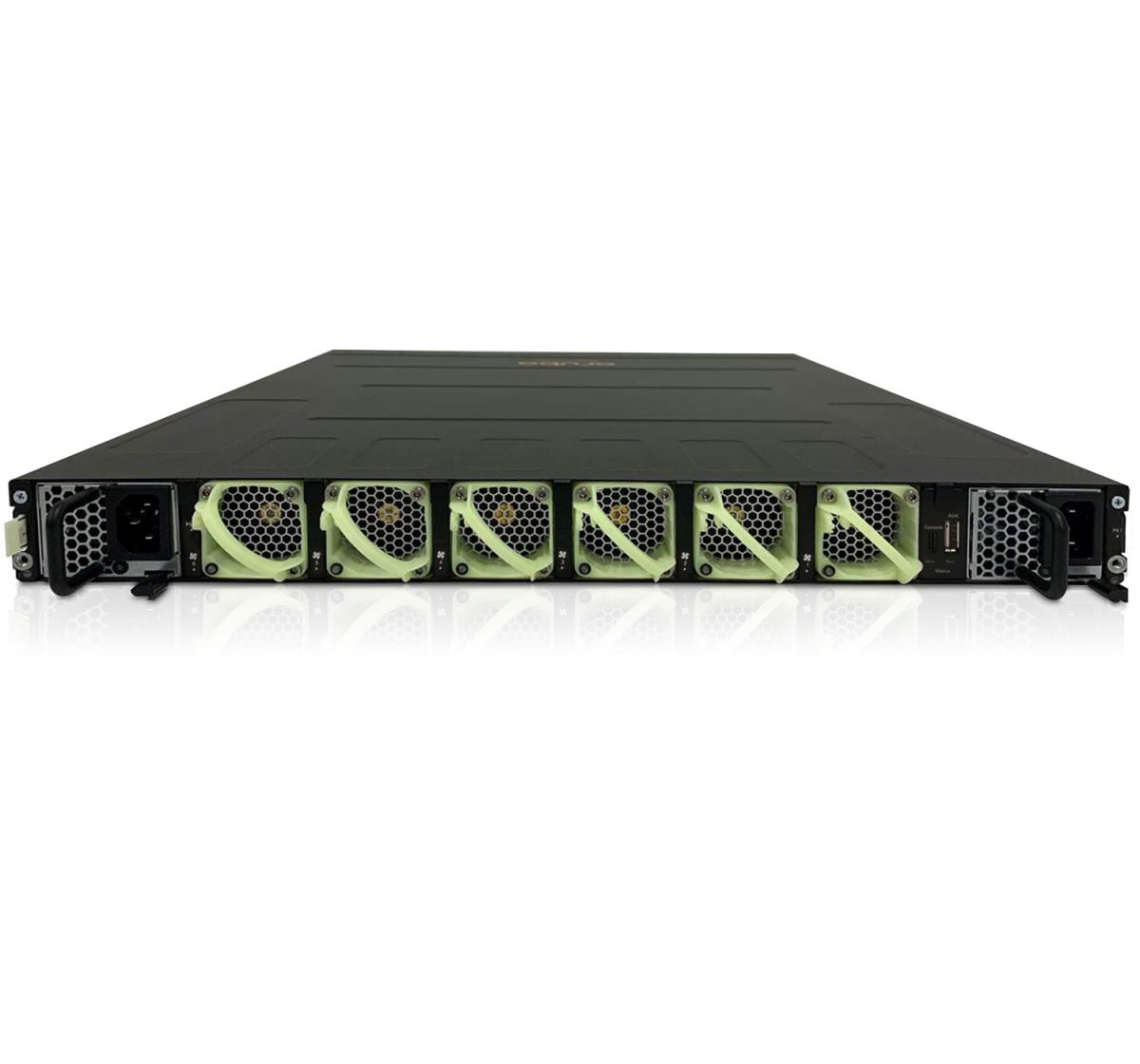

| Ventilatiesysteem | Luchtstroom achter-naar-voor |
| Aantal ventilatoren | 6 ventilator(en) |
| Prestatie | |
| Type processor | Ja |
| Frequentie van processor | 2900 MHz |
| Type geheugen | RAM / Flash |
| Intern geheugen | 32768 MB |
| Flash memory | 8192 MB |
| Energie | |
| Stroombron | AC |
| Vermogenstoevoer inclusief | Ja |
| Aantal voedingen | 2 |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Stroomverbruik (typisch) | 550 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 85 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Warmtedissipatie | 1876 BTU/h |
| Gewicht en omvang | |
| Breedte | 438,2 mm |
| Diepte | 511 mm |
| Hoogte | 44,4 mm |
| Gewicht | 9,75 kg |
| Warranty | |
| Base Warranty | Non Non |
