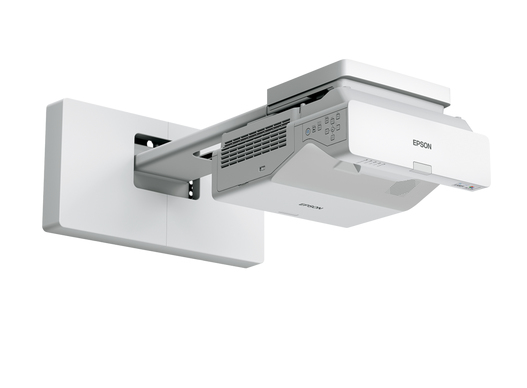

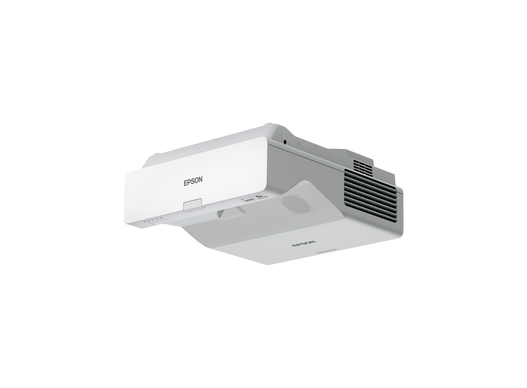

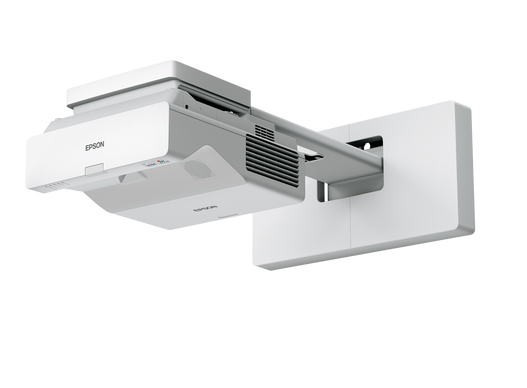

Eb-760w - Projector - 3LCD - 4100 Lm - Wxga - USB / Wi-Fi
ITCurry #: 1925Z984 | Article #: V11HA81080-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Agile UST laser display
Whatever the size of class or meeting room, unrestricted and immersive presentations are possible with this bright, clear, compact and affordable display solution.
The EB-760W's bright image, scalable up to 150", is clearly visible from any angle and from a distance, and content can be easiliy shared or streamed directly from multiple devices for the perfect collaborative experience.
The EB-760W's ultra short throw lens allows safe, discreet positioning close to the display, enabling presenters free access to perform without casting shadows.
With 4,100 lumens Colour Light Output and Epson 3LCD technology, the display is bright and vibrant up-to 150", clearly visible from all angles and from a distance. The experience is immersive and user-friendly.
Projection also enables flexible display sizes, scalable from 49-150", display sizes can be optimised for each room with one familiar product and at a fixed cost
Versatile wired and wireless connectivity options, including screen mirroring via Miracast™, allow participants to effortlessly share content from their PCs or mobile devices. With a connected optional Epson visualiser, documents, presentations or 3D objects can be viewed with incredible detail.
Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots at certain angles, and teachers are not subjected to LCD panel direct blue light radiation, believed to damage eyes. Paired with a hygienic, antibacterial whiteboard, teachers can annotate presentations with dry-wipe pens, or to save energy, simply use the whiteboard with the display turned off.
| Projector | |
| Ondersteunde beeldverhoudingen | 16:10 |
| Geschikt voor schermmaten | 1524 - 3810 mm (60 - 150") |
| Contrast ratio (dynamisch) | 5000000:1 |
| Projector helderheid | 4100 ANSI lumens |
| Projectietechnologie | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Typische contrastverhouding | 2500000:1 |
| Oorspronkelijke beeldverhouding | 16:10 |
| Aantal kleuren | 1,07 miljard kleuren |
| Projector helderheid (spaarzame modus) | 2800 ANSI lumens |
| Frequentiebereik verticaal | 100 - 120 Hz |
| Keystone correctie, horizontaal | ñ3ø |
| Keystone correctie, verticaal | ñ3ø |
| Warmtedissipatie | 895 BTU/h |
| Lichtbron | |
| Type lichtbron | Laser |
| Levensduur van de lichtbron | 20000 uur |
| Levensduur van de lichtbron (besparingsmodus) | 30000 uur |
| Lenssysteem | |
| Focus | Handmatig |
| Brandpuntbereik | 3.7 mm |
| Vaste focale lengte | 3,7 mm |
| F-nummer (relatieve aperture) | 1,6 |
| Zoomcapaciteit | Ja |
| Zoomverhouding | 1.35:1 |
| Throw ratio | 0.27 - 0.37:1 |
| Video | |
| Volledige HD | Ja |
| 3D | Nee |
| Videobewerking | 10 Bit |
| Video kleurenmodi | Schoolbord, Bioscoop, Dynamisch, Presentatie, sRGB |
| Poorten & interfaces | |
| Aantal USB 2.0-poorten | 3 |
| Aantal USB 2.0 Type-A-poorten | 2 |
| Aantal poorten USB 2.0 Type-B | 1 |
| Audio-ingang (L, R) | 3 |
| Audio (L,R) out | 1 |
| Microfoon, line-in ingang | Ja |
| Soort serie‰le aansluiting | RS-232C |
| VGA (D-Sub)poort(en) | 2 |
| Aantal HDMI-poorten | 3 |
| Composiet video-ingang | 1 |
| DVI-poort | Nee |
| Consumer Electronics Control (CEC)-ondersteuning | Ja |
| Audio Return Channel (ARC) | Ja |
| Netwerk | |
| Ethernet LAN | Ja |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Ethernet LAN, data-overdrachtsnelheden | 10,100 Mbit/s |
| Wifi | Ja |
| Wi-Fi-standaarden | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Miracast | Ja |
| Opslagmedia | |
| Ge‹ntegreerde geheugenkaartlezer | Nee |
| Kenmerken | |
| Geluidsniveau (spaarzame modus) | 27 dB |
| On Screen Display (OSD) | Ja |
| Screen mirroring | Ja |
| Geluidsniveau | 37 dB |
| Land van herkomst | Filipijnen |
| Wachtwoordbeveiliging | Ja |
| Multimedia | |
| Ingebouwde luidsprekers | Ja |
| Gemiddeld vermogen | 16 W |
| Design | |
| Markt positionering | Presentatie |
| Type product | Projector met ultrakorte projectieafstand |
| Kleur van het product | Wit |
| Plaatsing | Plafond, Desktop, Muur |
| Bevestigingsmogelijkheid voor kabelslot | Ja |
| Kabelslot sleuf type | Kensington |
| Beeldscherm | |
| Ingebouwd display | Nee |
| Energie | |
| Stroombron | AC |
| Stroomverbruik (typisch) | 197 W |
| Stroomverbruik (in standby) | 0,5 W |
| Vermogensverbruik (max) | 263 W |
| Stroomverbruik (PowerSave) | 199 W |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Leveranciersinformatie | |
| Aanbevolen geslacht | Elk geslacht |
| Eisen aan de omgeving | |
| Temperatuur bij opslag | -10 - 60 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 20 - 80 procent |
| Luchtvochtigheid bij opslag | 10 - 90 procent |
| Gewicht en omvang | |
| Breedte | 356 mm |
| Diepte | 395 mm |
| Hoogte | 133 mm |
| Gewicht | 5,9 kg |
| Breedte verpakking | 450 mm |
| Diepte verpakking | 485 mm |
| Hoogte verpakking | 325 mm |
| Gewicht verpakking | 8,74 kg |
| Inhoud van de verpakking | |
| Afstandsbediening inbegrepen | Ja |
| Batterijen inbegrepen | Ja |
| Meegeleverde kabels | AC |
| Gebruikershandleiding | Ja |
| Meegeleverde software | EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Content Manager, Epson Projector Management |
| Technische details | |
| Andere kenmerken | A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, Network projection, OSD copy function, PC Free, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App |
| Garantieperiode | 5 jaar |
| Mobiele appondersteuning | Ja |
| Power consumption | 197 Watt (Normal On-Mode), 141 Watt (Eco On-Mode), 263 Watt (Normal Peak-mode), 199 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby) |
| Logistieke gegevens | |
| Aantal per verpakking | 1 stuk(s) |
| Producten per pallet | 12 stuk(s) |
| Pallet brutolengte | 120 cm |
| Pallet brutobreedte | 80 cm |
| Pallet brutohoogte | 2,1 m |
| Producten per palletlaag | 2 stuk(s) |
| Producten per palletlaag (UK) | 4 stuk(s) |
| Producten per pallet (UK) | 24 stuk(s) |
| Palletlengte (UK) | 120 cm |
| Pallethoogte (UK) | 2,1 m |
| Overige specificaties | |
| Type optie | Air filter, Ceiling mount, Connection and control box, External Speaker, Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01 |
| Interface | USB 2.0-A (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), USB 2.0 Type B (Service Only), Wi-Fi Direct, Microphone input |
| Bedieningspaneel | 0.59 inch with C2 Fine |
| Ondersteunde netwerkprotocollen | HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink |
| Beveiligingseigenschappen | Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection |
| Warranty | |
| Base Warranty | Non Non |
