TRIPP LITE HDMI over CAT6 Extender Kit, Transmitter and Pigtail Receiver, 4K 60Hz, 4:4:4, PoC, HDR, HDCP 2.2 70m TAA
ITCurry #: 57906989 | Article #: B127A-1A1-BHPH-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
HDMI Extender Kit Ideal for Digital Signage in Schools, Restaurants and Lecture Halls

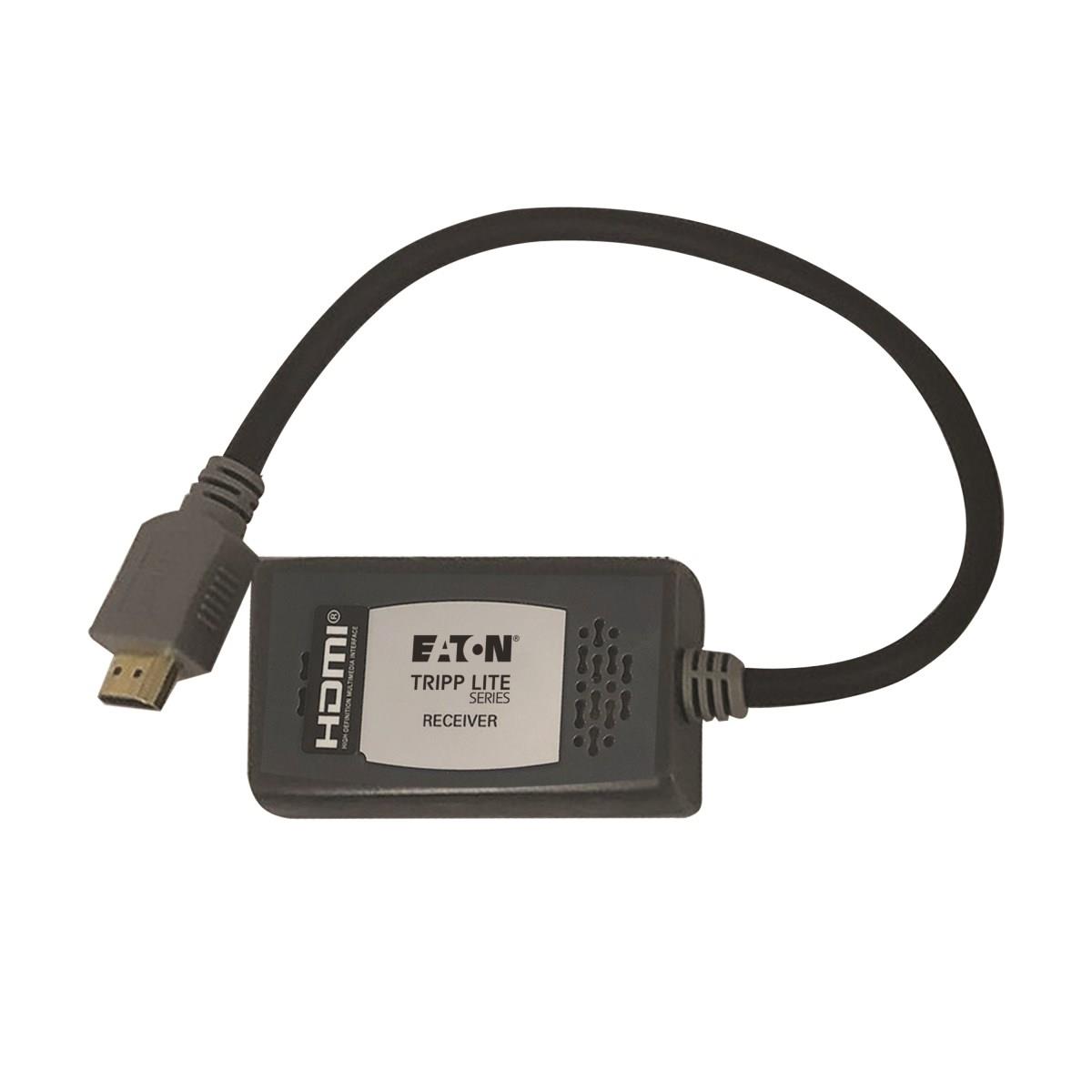

This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. The low-profile pigtail-type receiver is ideal for applications in which space around the display is restricted and a larger box-style receiver will not fit.
Extends a 4K A/V Transmission up to 230 ft....or More
The B127A-1A1-BHPH extends 4K signals from an HDMI source device to an HDMI display up to 230 feet away via user-supplied Cat6 cabling. By adding a B127A-010-H HDMI repeater or B127A-110-BH Transceiver (sold separately) to the application, you can extend the signal up to 400 or 460 feet, respectively.
Transmits Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 Color
The B127A-1A1-BHPH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified by HDMI 2.0, with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-in equalization allows you to fine-tune the image quality at the remote display.

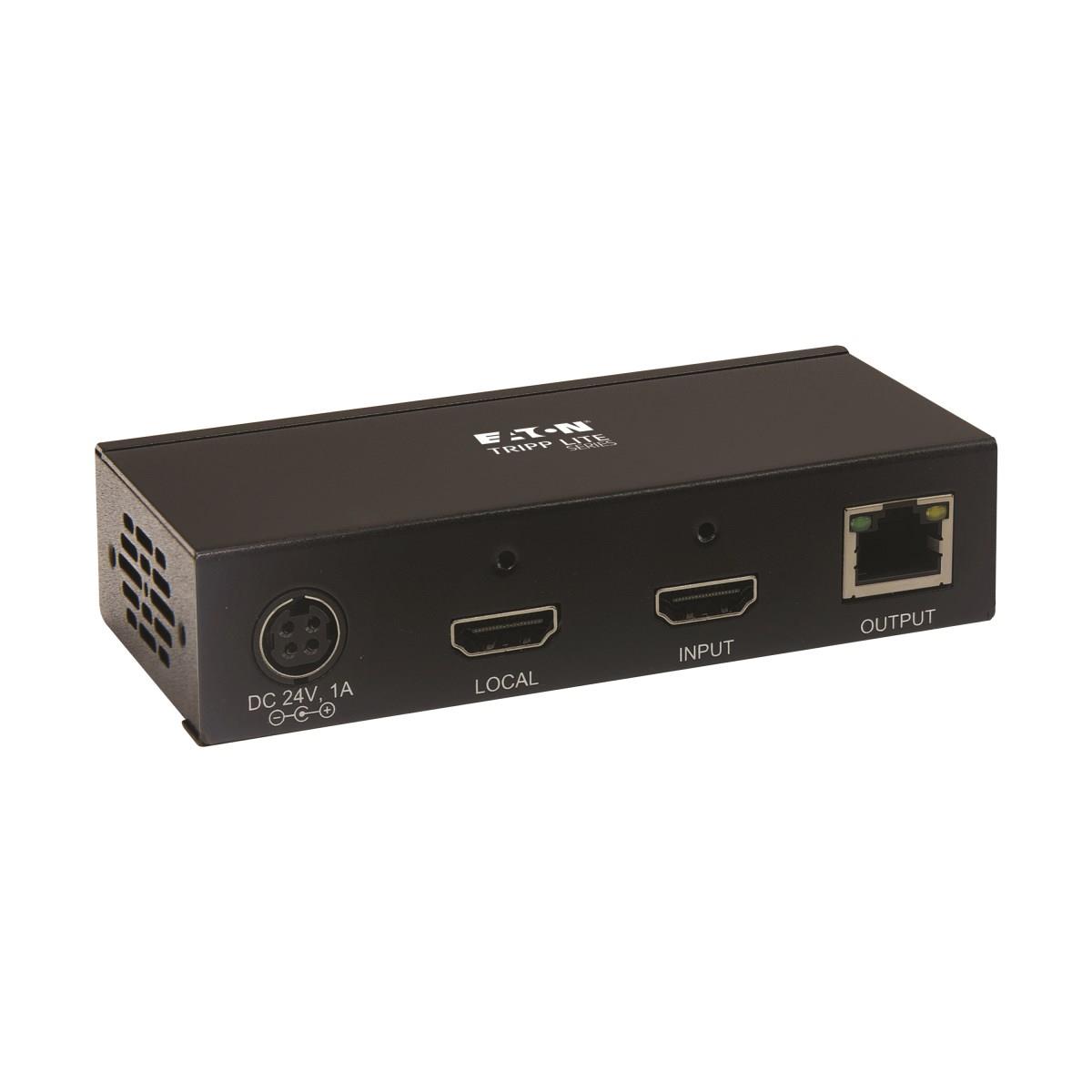

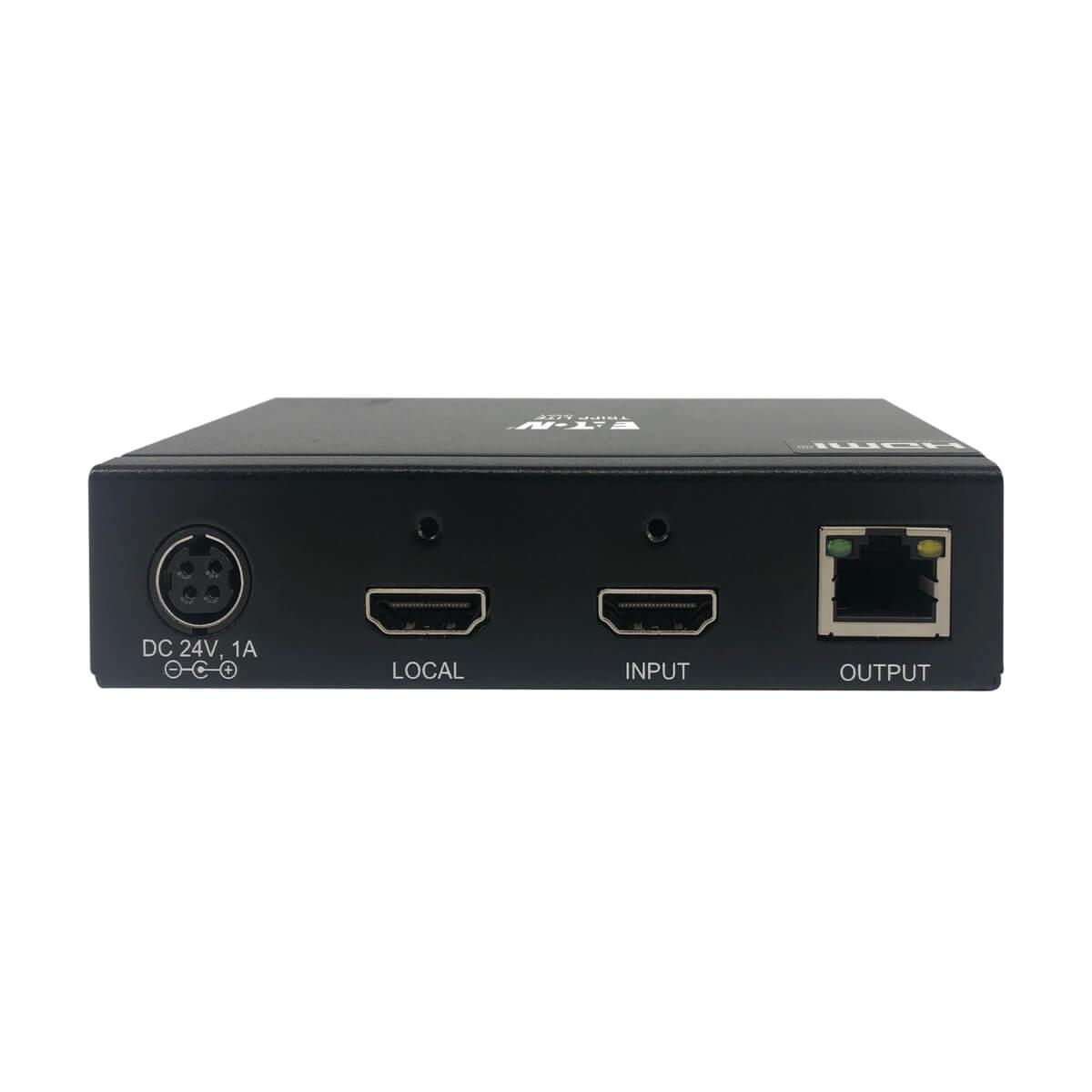

Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution
To monitor the video signal being extended to the receiver, connect a 4K display to the transmitter’s local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities, so the connected monitor must also support 4K/60 Hz to function properly.
Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks
Power over Cable (PoC) technology powers the receiver over Cat6 cable. LEDs on both the transmitter and receiver will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receiver where needed without worrying about finding a nearby AC outlet.
Plug-and-Play Operation for Quick Setup and Immediate Use

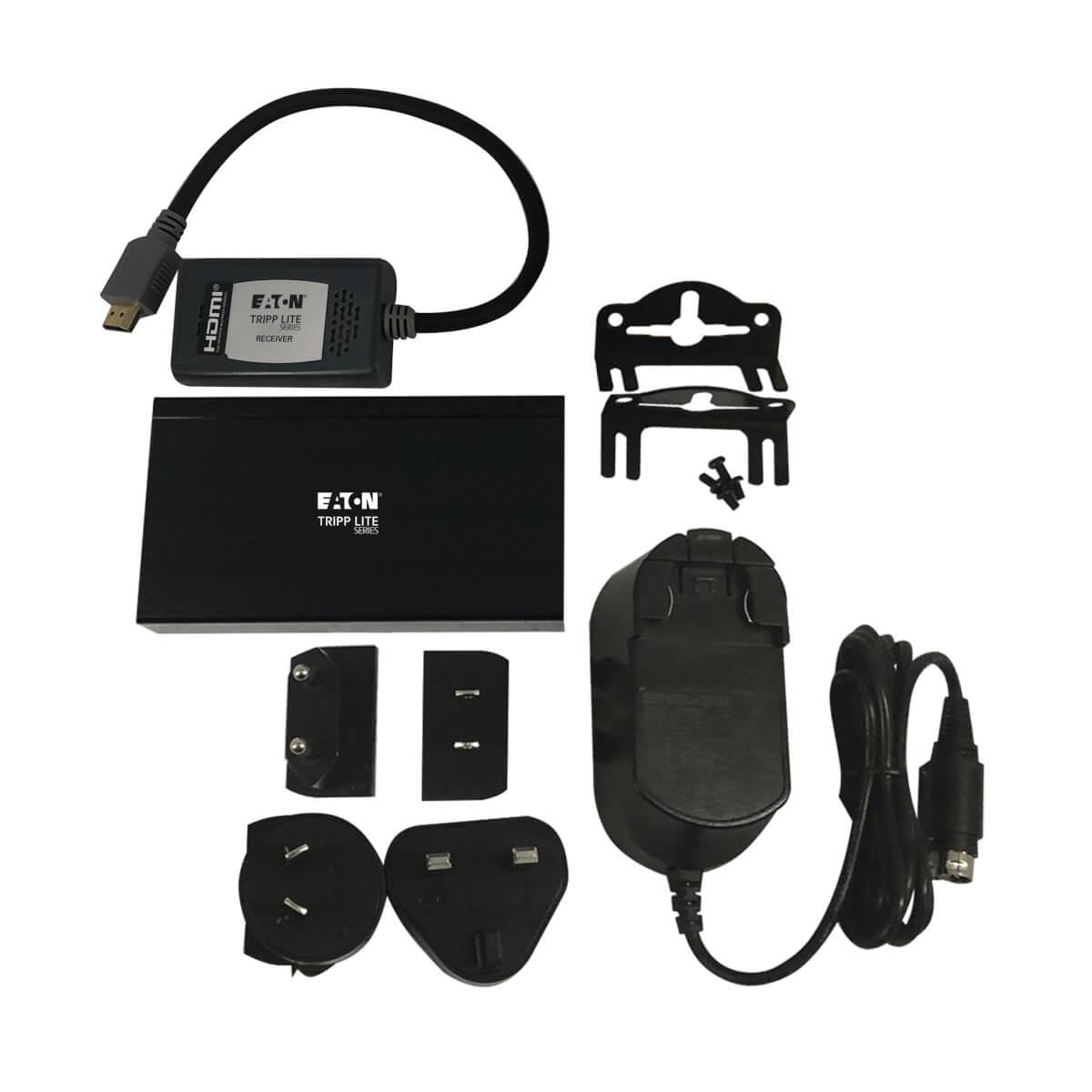

The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the transmitter on a wall, pole or 19-inch rack. Connect the transmitter to the source with a user-supplied HDMI cable (such as P568- or P569-Series). Then, connect the pigtail receiver to the display with its built-in HDMI cable. Finally, connect the two units with user-supplied Cat6 patch cable (such as N202-Series).
TAA-Compliant for GSA Schedule Purchases
The B127A-1A1-BHPH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
| Kenmerken | |
| Soort | AV-zender & ontvanger |
| Maximum resolutie | 3840 x 2160 Pixels |
| Ondersteundende kabel types | Cat5, Cat5e, Cat6, HDMI |
| Maximaal bereik | 70,1 m |
| Maximale refresh snelheid | 60 Hz |
| Audiosysteem | Multikanaal |
| Extended display identification data (EDID) | Ja |
| Audio-uitgangskanalen | 7.1 kanalen |
| LED-indicatoren | Ja |
| Materiaal | Metaal, Kunststof |
| Kleurdiepte | 36 Bit |
| 3D | Ja |
| Rack-montage | Ja |
| Consumer Electronics Control (CEC)-ondersteuning | Ja |
| Ophangsysteem voor aan de muur | Ja |
| Kleur van het product | Zwart |
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| RJ-45 invoer ports | 1 |
| RJ-45 uitgang ports | 1 |
| HDMI in | 1 |
| Aantal HDMI-uitgangen | 2 |
| Remote (IR) ingang | 1 |
| Remote (IR) uitgang | 1 |
| Aansluiting voor netstroomadapter | Ja |
| Energie | |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50-60 Hz |
| Operating voltage | 24 V |
| Stroom | 0.6 A |
| Output current | 1 A |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -15 - 50 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 85 procent |
| Warranty | |
| Base Warranty | Non Non |
| Gewicht en omvang | |
| Receiver afmetingen (B x D x H) | 47 x 75 x 18,6 mm |
| Transmitter afmetingen (WxDxH) | 115 x 62,4 x 27 mm |
| Verpakking | |
| Breedte verpakking | 260,1 mm |
| Diepte verpakking | 164,1 mm |
| Hoogte verpakking | 55,1 mm |
| Gewicht verpakking | 660 g |
| Inhoud van de verpakking | |
| Inclusief AC-adapter | Ja |
| Inbegrepen soorten voedingsstekkers | AU, EU, NA, UK |
| Gebruikershandleiding | Ja |
| Montage gereedschap | Ja |
| Technische details | |
| Land van herkomst | Taiwan |
| Naleving van duurzaamheid | Ja |
| Certificaten van naleving | CE, REACH, RoHS |
| Logistieke gegevens | |
| (Buitenste) hoofdverpakking breedte | 573 mm |
| (Buitenste) hoofdverpakking lengte | 273 mm |
| (Buitenste) hoofdverpakking hoogte | 175 mm |
| (Buitenste) hoofdverpakking brutogewicht | 6,9 kg |
| Hoeveelheid per (buitenste) hoofdverpakking | 10 stuk(s) |
| GTIN (EAN/UPC)-nummer (buitenste) hoofdverpakking | 10037332258639 |
