TRIPP LITE HDMI over CAT6 Receiver with Repeater, 4K 60Hz, HDR, 4:4:4, IR Transceiver, PoC, HDCP 2.2, 70m TAA
ITCurry #: 57906977 | Article #: B127A-110-BH-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
HDMI Extender Transceiver Unit Ideal for Digital Signage in Schools and Restaurants
This 4K IR transceiver is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.
Combines with HDMI Extender Kit to Add More Distance
The B127A-110-BH works with B127A-111-BHTH extender kit (sold separately) to further extend a 4K audio/video signal up to 230 feet. It connects between the transmitter and transceiver from the extender kit with user-supplied Cat6 cabling. IR remote control lets you operate the source from the display end of the installation.
Transmits Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 Color
The B127A-110-BH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified by HDMI 2.0, with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This transceiver also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-in equalization allows you to fine-tune the image quality at the remote display.
Create a Daisy Chain to Achieve More Distance
This transceiver combines with the B127A-111-BHTH extender kit (sold separately) and additional B127A-110-BH transceivers to form daisy-chain installations up to 920 feet from the transmitter. Up to four total transceivers can be chained together, each capable of extending a 4K/60 Hz signal up to 230 feet per unit. In addition to the extender kit, this transceiver is also compatible with B127A-1A1-BCBH, B127A-1A1-BDBH and B127A-1A1-BHBH and can be used to replace any receivers in the installation as well.
Add a Signal Booster to Achieve, Yes, Even More Distance
The transceiver is also compatible with B127A-010-H signal booster (sold separately), which allows the signal to be boosted up to 400 feet total between the transmitter and transceiver. When used in a daisy-chain installation, this brings the total extension distance up to 1,090 ft. Note
: B127A-010-H will only work when used in the first link of the daisy-chain installation.
Built-In PoC Technology Lets You Avoid Bulky External Power Bricks
Power over Cable (PoC) technology powers the receiver at the end of the chain over Cat6 cable. LEDs on both the transmitter and transceiver will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the transceiver where needed without worrying about finding a nearby AC outlet. Power is also equally distributed to any additional transceivers within a daisy-chain installation.
Plug-and-Play Operation for Quick Setup and Immediate Use
The transceiver works right out of the box with no software required. Mounting hardware is included for installing it on a wall, pole or 19-inch rack. Connect the transceiver to a transmitter and any additional transceiver with user-supplied Cat6 patch cable (such as N202-Series). Connect to a 4K display with a user-supplied HDMI cable (such as P568- or P569-Series).
TAA-Compliant for GSA Schedule Purchases
The B127A-110-BH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
| Kenmerken | |
| Soort | AV-repeater |
| Maximum resolutie | 3840 x 2160 Pixels |
| Ondersteundende kabel types | Cat5, Cat5e, Cat6, HDMI |
| Maximaal bereik | 70,1 m |
| Maximale refresh snelheid | 60 Hz |
| Audiosysteem | Multikanaal |
| Extended display identification data (EDID) | Ja |
| Audio-uitgangskanalen | 7.1 kanalen |
| LED-indicatoren | Ja |
| Snoerlengte | 1,38 m |
| Materiaal | Metaal |
| Kleurdiepte | 36 Bit |
| 3D | Ja |
| Consumer Electronics Control (CEC)-ondersteuning | Ja |
| Ophangsysteem voor aan de muur | Ja |
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| RJ-45 invoer ports | 1 |
| RJ-45 uitgang ports | 1 |
| Aantal HDMI-uitgangen | 1 |
| Digitale audio, optische uitgang | 1 |
| Remote (IR) ingang | 1 |
| Remote (IR) uitgang | 1 |
| Aansluiting voor netstroomadapter | Ja |
| Energie | |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50-60 Hz |
| Operating voltage | 24 V |
| Stroom | 0.6 A |
| Output current | 1 A |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -15 - 50 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 85 procent |
| Warranty | |
| Base Warranty | Non Non |
| Gewicht en omvang | |
| Breedte | 115 mm |
| Diepte | 62,4 mm |
| Hoogte | 27 mm |
| Verpakking | |
| Breedte verpakking | 260,1 mm |
| Diepte verpakking | 164,1 mm |
| Hoogte verpakking | 55,1 mm |
| Gewicht verpakking | 660 g |

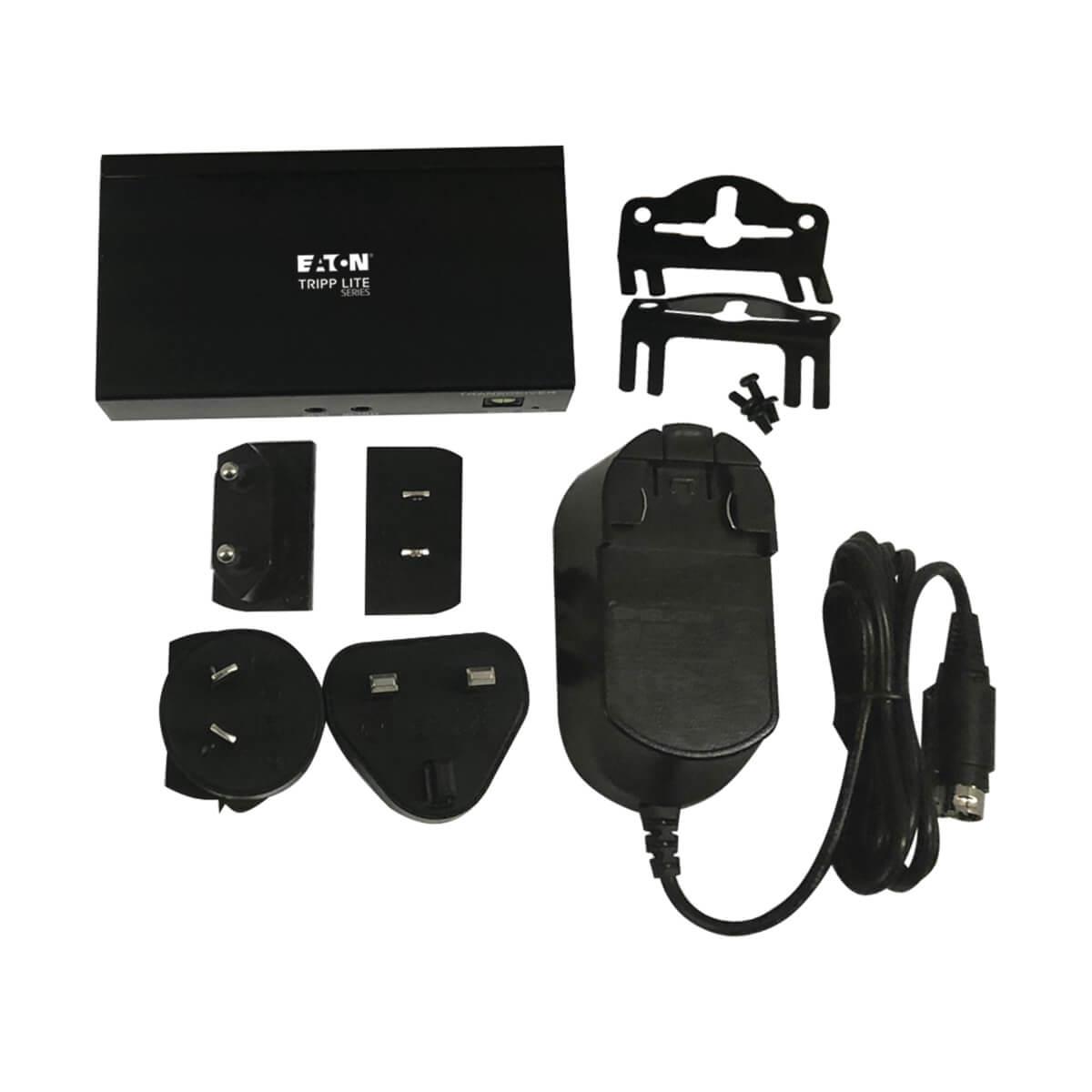

| Inhoud van de verpakking | |
| Inclusief AC-adapter | Ja |
| Inbegrepen soorten voedingsstekkers | AU, EU, NA, UK |
| Gebruikershandleiding | Ja |
| Montage gereedschap | Ja |
| Technische details | |
| Land van herkomst | Taiwan |
| Naleving van duurzaamheid | Ja |
| Certificaten van naleving | CE, REACH, RoHS |
| Logistieke gegevens | |
| (Buitenste) hoofdverpakking breedte | 573 mm |
| (Buitenste) hoofdverpakking lengte | 273 mm |
| (Buitenste) hoofdverpakking hoogte | 175 mm |
| (Buitenste) hoofdverpakking brutogewicht | 6,9 kg |
| Hoeveelheid per (buitenste) hoofdverpakking | 10 stuk(s) |
| GTIN (EAN/UPC)-nummer (buitenste) hoofdverpakking | 10037332258608 |
