OnLine UPS Module, 10000VA/10000W 2U
ITCurry #: M9238699 | Article #: DN-170107-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The parallel-redundant OnLine UPS is an ideal backup solution for your demanding power requirements and offers high reliability in various industrial applications.
- High power factor (1.0), a higher active power enables more connected loads, which saves space and reduces costs.
- High efficiency in online mode, higher efficiency means optimized energy management and lower heat dissipation, resulting in energy savings and improved reliability.

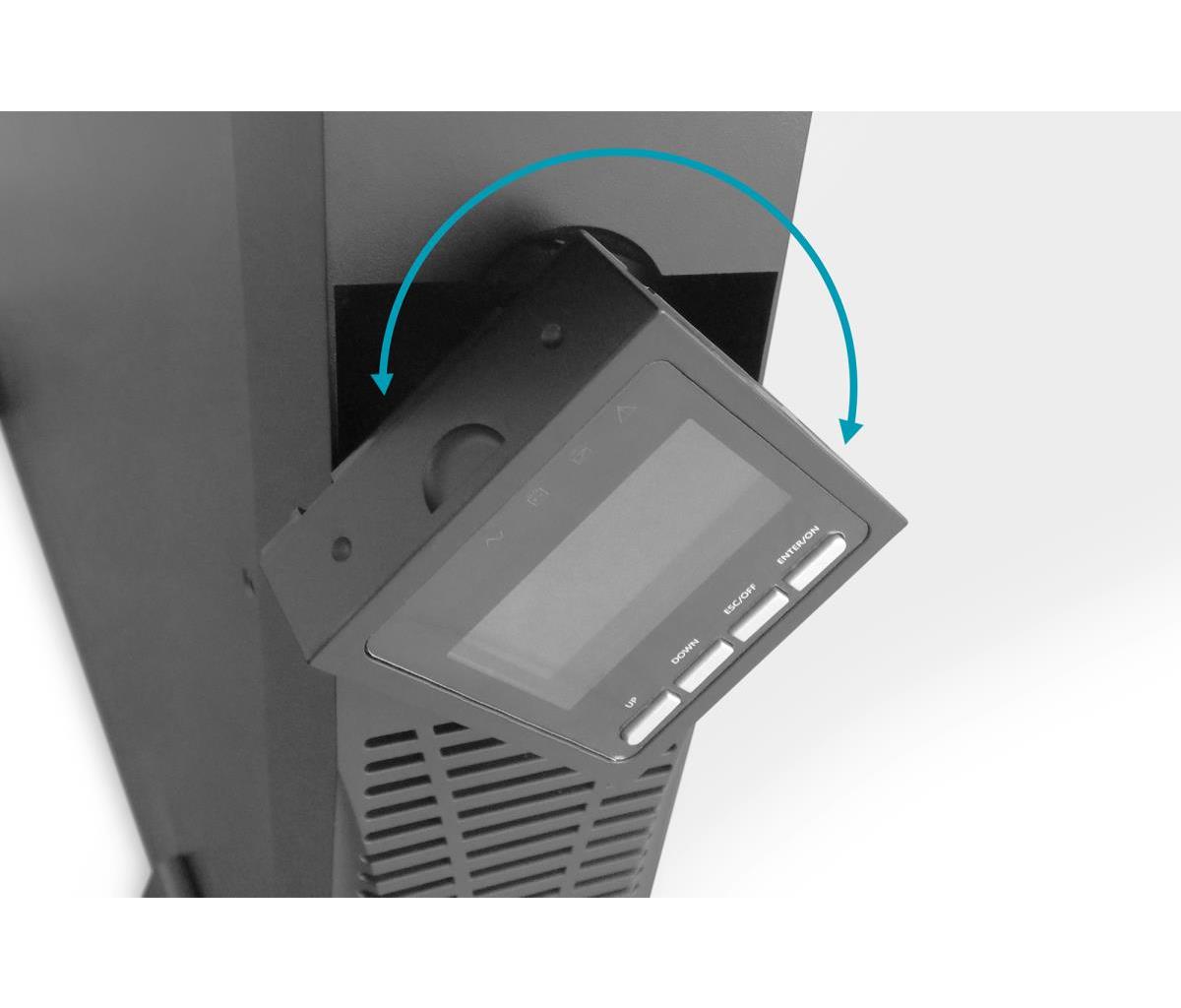

- User-friendly LCD screen provides insight into UPS status for easy installation, configuration and operation.
- Compact rack/tower design optimizes installation space in the rack and enables flexible installation.
- External battery modules allow the runtime to be extended.
- Various communication interfaces (RS232/USB, parallel port, SNMP slot) enable remote monitoring of the system
- Automatic battery self-test and fan speed control increase the service life of the components.
- The UPS only requires 2 height units in the rack, which enables simple installation and saves space in the rack for other components.
- The REPO function (Remote Emergency Power Off) switches the UPS off in the event of an emergency. If an emergency occurs, the REPO switch turns off the rectifier and the inverter and immediately stops the power supply to the load. The UPS stops charging
- Parallel / redundant operation possible (up to 4 devices in parallel), this supports maximum availability and enables growth with increasing load requirements.
The DIGITUS® OnLine UPS is a double-conversion UPS solution that offers first-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when a longer uninterruptible power supply is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and unity power factor, the UPS meets your critical application requirements. The UPS does not have internal batteries, these must be ordered separately as external battery modules (article number: DN-170108).
| Kenmerken | |
| UPS-topologie | Dubbele conversie (online) |
| Output power capacity | 6 kVA |
| Uitgangsvermogen | 10000 W |
| Golfvorm | Zuivere sinus |
| Ingang operation voltage (min) | 120 V |
| Ingang operation voltage (max) | 276 V |
| Frequentie | 45/66 Hz |
| Uitgang operation voltage (min) | 208 V |
| Uitgang operation voltage (max) | 240 V |
| Output frequentie | 50/60 Hz |
| Uitgangsfrequentieregeling | 1 Hz |
| Uitgangsspanningsregeling | 5 procent |
| Responstijd | 20 ms |
| Aantal input fases | 1 |
| Aantal output fases | 1 |
| Efficientie | 93,5 procent |
| Power factor | 0,99 |
| Crest factor | 3:1 |
| ECO mode | Ja |
| Emergency Power Off (EPO) | Ja |
| Output voltage THD | 5 procent |
| Input stroom THD | 5 procent |
| Geluidsniveau | 55 dB |
| Poorten & interfaces | |
| Stekker | Hardwire |
| USB-poort | Ja |
| Aantal USB 2.0-poorten | 1 |
| USB-poorttype | USB Type-B |
| Noodstop-aansluiting (EPO) | Ja |
| Accu/Batterij | |
| Ondersteund aantal accu's/batterijen | 20 |
| Accu/Batterij oplaadtijd | 8 uur |
| Laadstroom | 1 A |
| Hot-swap batterij | Ja |
| Koude start | Ja |
| Design | |
| Vormfactor | Rackmontage/toren |
| Materiaal behuizing | Metaal |
| Rackcapaciteit | 2U |
| Type koeling | Actief |
| Ingebouwde ventilator | Ja |
| Kleur van het product | Zwart |
| Type beeldscherm | LCD + LED |
| Internationale veiligheidscode (IP) | IP20 |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Inhoud van de verpakking | |
| Gebruikershandleiding | Ja |
| Gewicht en omvang | |
| Breedte | 440 mm |
| Diepte | 620 mm |
| Hoogte | 86,5 mm |
| Gewicht | 18 kg |
| Verpakking | |
| Breedte verpakking | 615 mm |
| Diepte verpakking | 765 mm |
| Gewicht verpakking | 20,6 kg |
| Verpakkingsvolume | 100682 cmü |
| Logistieke gegevens | |
| Code UK-handelstarief | 85044086 |
| Code geharmoniseerd systeem (HS) | 85078000 |
| Land van herkomst | China |
| Overige specificaties | |
| Maat | 48,3 cm (19") |
| Warranty | |
| Base Warranty | Non Non |
