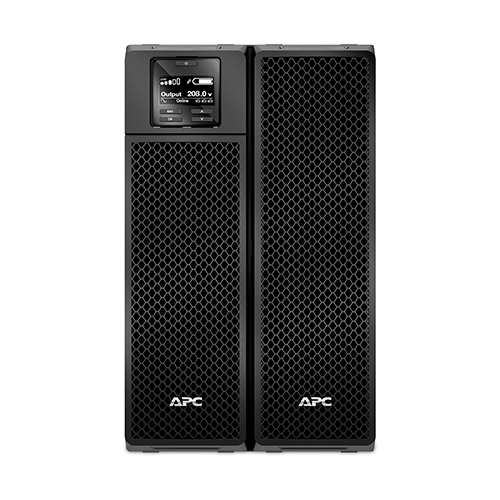

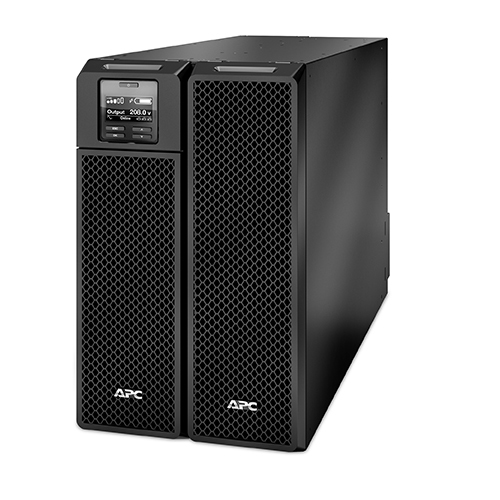

Smart-UPS SRT 10000VA 208V
ITCurry #: 0280F702 | Article #: SRT10KXLT-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Availability
- Automatic restart of loads after UPS shutdown
- Temperature-compensated battery charging
- Intelligent battery management
- Hot-swappable batteries
- Automatic internal bypass
- Scalable runtime
- Automatically starts up the connected equipment upon the return of utility power.
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Supplies utility power to the connected loads in the event of a UPS power overload or fault.
- Allows additional run time to be quickly added as needed.
Marketing Features
- Save time with easy and convenient remote accessibility.
- Peace of mind that comes with full equipment compatibility and reliability of a leader
- Avoids costly power problems by keeping your IT equipment and data protected and available.
- Low operating and maintenance costs with proven reliability and intelligent battery management.
- Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
- Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
- Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
- Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
Serviceability
- Predicitive failure notification
- Provides early-warning fault analysis ensuring proactive component replacement.
- Audible alarms
- Provides notification of changing utility power and UPS power conditions
- Disconnected battery notificationWarns when a battery is not available to provide backup power.
- User-replaceable batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Automatic self-test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Protection
- Resettable circuit breaker
- Easy recovery from overloads; no need to replace a fuse.
- Cold-start capable
- Provides temporary battery power when the utility power is out.
- Safety-agency approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- Frequency and voltage regulation
- Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
- Power conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Input power factor correction
- Minimizes installation costs by enabling the use of smaller generators and cabling.
- Generator compatible
- Ensures clean, uninterrupted power to protected equipment when generator power is used.
Manageability
- Network manageable
- Provides remote power management of the UPS over the network.
- Serial connectivity
- Provides management of the UPS via a serial port.
- InfraStruXure Manager Compatible
- Enables centralized management via the APC InfraStruXure Manager.
- LED status indicators
- Quickly understand unit and power status with visual indicators.
- SmartSlot
- Customize UPS capabilities with management cards.
Adaptability
- Plug-and-Play external batteries
- Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
- Rack/Tower convertible
- Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Flash upgradeable firmware
- Install maintenance releases of firmware remotely using FTP.
| Warranty | |
| Base Warranty | Non Non |
| Kenmerken | |
| UPS-topologie | Dubbele conversie (online) |
| Output power capacity | 10 kVA |
| Uitgangsvermogen | 10000 W |
| Golfvorm | Sinus |
| Ingang operation voltage (min) | 100 V |
| Ingang operation voltage (max) | 275 V |
| Frequentie | 40 - 70 Hz |
| Uitgang operation voltage (min) | 208 V |
| Uitgang operation voltage (max) | 240 V |
| Surge energy rating | 480 J |
| Crest factor | 3:1 |
| EMI/RFI ruisverzwakking | 55 dB |
| Geluidsalarm(en) | Ja |
| Poorten & interfaces | |
| Stopcontacttypes | NEMA L6-20R, NEMA L6-30R |
| Aantal AC uitgangen | 6 AC-uitgang(en) |
| USB-poort | Ja |
| Aantal Ethernet LAN (RJ-45)-poorten | 2 |
| Bekabelingstechnologie | 10/100Base-T |
| SmartSlot | Ja |
| Accu/Batterij | |
| Batterijtechnologie | Sealed Lead Acid (VRLA) |
| Batterij capaciteit | 1799 VAh |
| Acculevensduur (max) | 5 jaar |
| Accu/Batterij oplaadtijd | 1,5 uur |
| Design | |
| Vormfactor | Tower |
| Kleur van het product | Zwart |
| Type beeldscherm | LCD |
| Internationale veiligheidscode (IP) | IP20 |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -15 - 45 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Luchtvochtigheid bij opslag | 0 - 95 procent |
| Hoogte, in bedrijf | 0 - 15000 m |
| Technische details | |
| Certificaten van naleving | RoHS |
| Gewicht en omvang | |
| Breedte | 236 mm |
| Diepte | 715 mm |
| Hoogte | 432 mm |
| Gewicht | 111 kg |
| Breedte verpakking | 600 mm |
| Diepte verpakking | 1000 mm |
| Hoogte verpakking | 461 mm |
| Gewicht verpakking | 126 kg |
| Verpakking | |
| Meegeleverde kabels | USB-kabel |
| Software-cd | Ja |
| Logistieke gegevens | |
| Producten per pallet | 1 stuk(s) |
| Code geharmoniseerd systeem (HS) | 85078000 |
