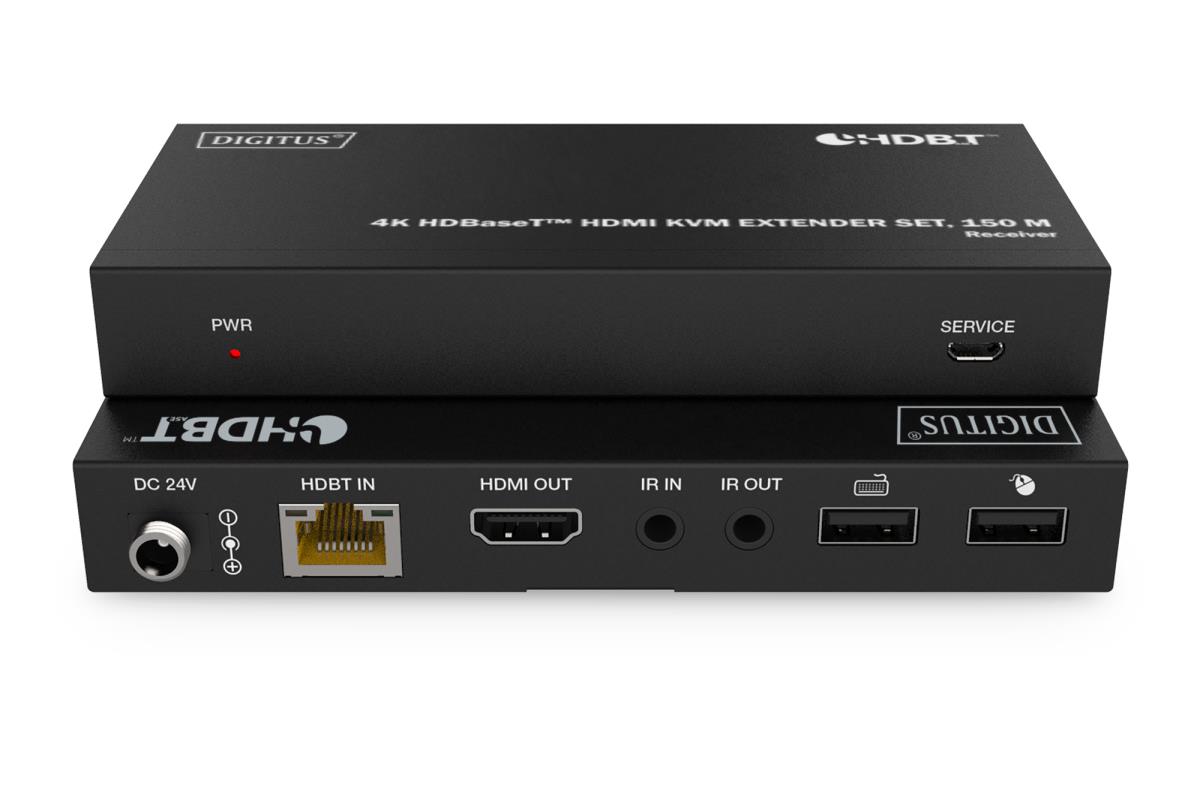

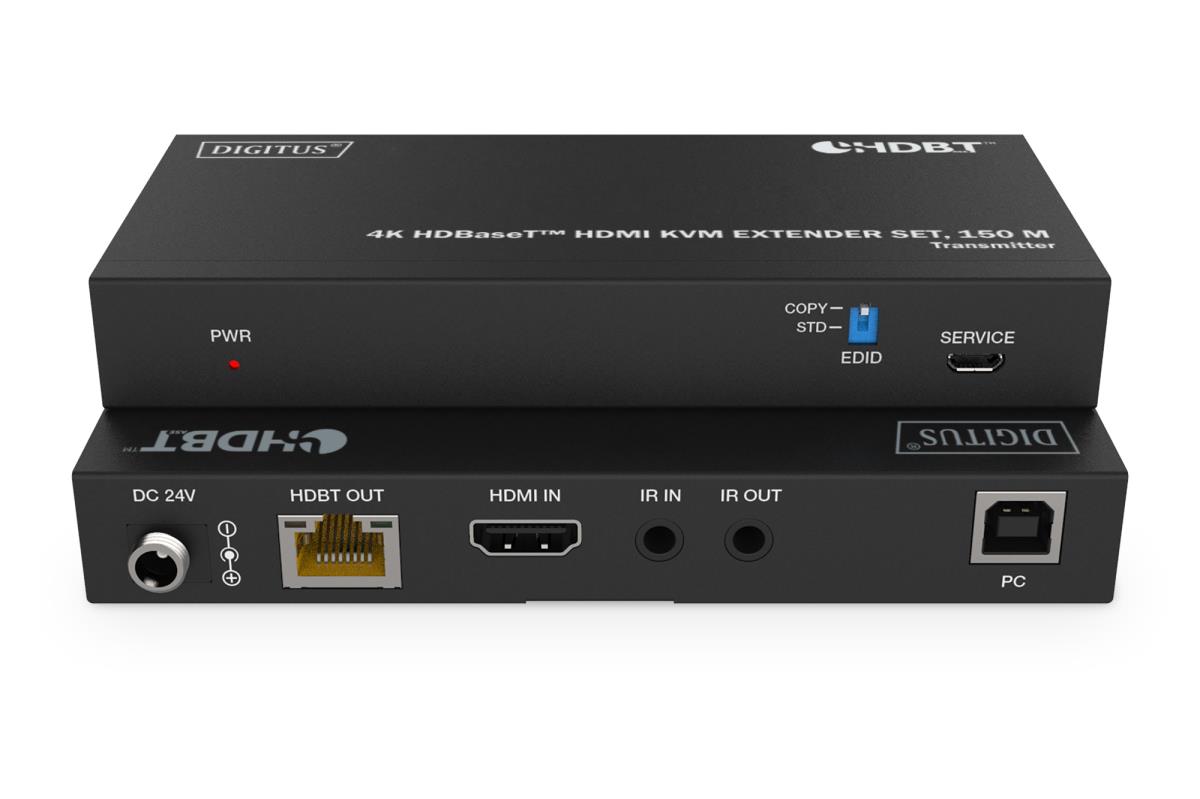

HDBaseT KVM Extender Set - 150m 4K/60Hz USB 1.1 PoC IR black
ITCurry #: M9239329 | Article #: DS-55522-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The HDBaseT™ HDMI Extender Set enables uncompressed, high-resolution AV signal transmission over large distances and offers KVM functionality (connection of mouse and keyboard)
- Supports HDBaseT™ 1.0 via CAT6A/7/8 cable up to 100 m
- Transmission distance - Full HD (1080p/60Hz): 150 m (max.)
- Transmission distance - UHD (4K/60Hz): 120 m (max.)
- Supports 4K2K/60Hz (4:4:4)
- Video bandwidth: 18 Gbps
- Connection of mouse and keyboard on receiver (2x USB 1.1) in order to control the signal source conveniently from the output display
- PoC (Power over Cable) - Only the unit requires an external power adapter
- EDID support (2 modes) - 1: Copy - HDMI output receiver / 2: Standard - 1080p, 2 channel
- Bi-directional IR signal transmission
- HDMI 2.0b / HDCP 2.2
The HDBaseT™ HDMI KVM Extender Set enables uncompressed, high-resolution AV signal transmission over large distances using a CAT6 (or higher) network cable. The maximum transmission distance is 150 m. Thanks to PoC, only one unit needs to be supplied with power by an external power adapter. The receiver unit features two USB (1.1) ports for connection of mouse and keyboard in order to control the signal source conveniently from the output display. Bi-directional IR transmission is also included as a feature.
| Kenmerken | |
| Soort | Zender en ontvanger |
| Maximum resolutie | 3840 x 2160 Pixels |
| Ondersteundende kabel types | Cat6, Cat7, Cat8 |
| Maximaal bereik | 100 m |
| HDR-ondersteuning | Ja |
| High Dynamic Range (HDR)-technologie | High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG) |
| Maximale refresh snelheid | 60 Hz |
| Extended display identification data (EDID) | Ja |
| Bidirectioneel | Ja |
| Elektrostatische ontlading (ESD) bescherming | Ja |
| Bandbreedte | 18 Gbit/s |
| HDCP | Ja |
| Materiaal | Metaal |
| HDCP- & EDID-omzeiling | Ja |
| HDCP versie | 2.2 |
| Kleur van het product | Zwart |
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| RJ-45 invoer ports | 1 |
| RJ-45 uitgang ports | 1 |
| HDMI in | 1 |
| Aantal HDMI-uitgangen | 1 |
| HDMI versie | 2.0b |
| Aantal USB-aansluitingen | 6 |
| USB-versie | 1.1 |
| USB-connectortype | USB Type-A, USB Type-B |
| Remote (IR) ingang | 2 |
| Remote (IR) uitgang | 2 |
| Aansluiting voor netstroomadapter | Ja |
| Energie | |
| Type stroombron | DC |
| Bedrijfsspanning (zender) | 24 V |
| Bedrijfsspanning (ontvanger) | 24 V |
| Stroomverbruik (zender) (max) | 10 W |
| Stroomverbruik (ontvanger) (max) | 10 W |
| Externe adapter | Ja |
| Power over Ethernet (PoE) | Nee |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Gewicht en omvang | |
| Receiver afmetingen (B x D x H) | 140 x 65 x 18 mm |
| Receiver gewicht | 246 g |
| Transmitter afmetingen (WxDxH) | 140 x 65 x 18 mm |
| Transmitter gewicht | 246 g |
| Verpakking | |
| Breedte verpakking | 245 mm |
| Diepte verpakking | 185 mm |
| Hoogte verpakking | 75 mm |
| Gewicht verpakking | 1,09 kg |
| Inhoud van de verpakking | |
| Inclusief AC-adapter | Ja |
| Meegeleverde kabels | IR, USB |
| Gebruikershandleiding | Ja |
| Technische details | |
| Land van herkomst | China |
| Verpakkingsvolume | 3399,38 cmü |
| Logistieke gegevens | |
| Code UK-handelstarief | 85176200 |
| Warranty | |
| Base Warranty | Non Non |
