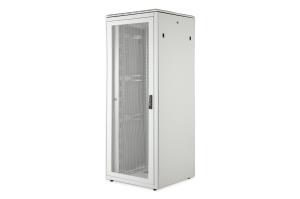

42U network cabinet HE2053X600X600 (HXBXT) (DN-19 42U-6/6-DB)
ITCurry #: M9235982 | Article #: DN-19 42U-6/6-DB-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The DIGITUS® Dynamic Basic series has been manufactured, designed and developed for the high demands of IT infrastructure
- Roof is prepared to accommodate a fan element (punched-out mounts)
- Lockable swivel lever handle on the front door
- Base with punched cable inlet, covered with screwed plate
The Dynamic series network cabinets have been developed for simple and particularly cost-optimized network expansion. Sophisticated positioning of the cable inlets ensures effortless installation depending on the application. In the floor chassis, this is located centrally at the rear, protected by a screw-fastened cover plate. Enclosures from 800 mm width are additionally extended by cable inlets with plastic covers on the left and right. These are also integrated in the roof (1 x for 600 mm enclosure width, 3 x for 800 mm enclosure width). The roof chassis is also provided with a punched-out area to accommodate a fan module. Two pairs of galvanized 483 mm (19") profile rails, labelled with height units that can be read in both directions, are installed inside. They can be adjusted in depth and are connected to additional depth braces in the cabinet. Each enclosure is a robust steel construction made from sheet steel up to 1.5 mm thick. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Removable side and rear panels as well as the lockable and removable front door improve accessibility. The door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.
| Kenmerken | |
| Rackcapaciteit | 42U |
| Soort | Vrijstaande rek |
| Maximale gewichtscapaciteit | 600 kg |
| Kleur van het product | Zwart |
| Materiaal | Glas, Staal |
| Achterdeurconstructie | Staal |
| Voordeurconstructie | Glas |
| Inbegrepen zijpanelen | Ja |
| Internationale veiligheidscode (IP) | IP20 |
| Gewicht en omvang | |
| Maat | 48,3 cm (19") |
| Breedte | 600 mm |
| Diepte | 600 mm |
| Hoogte | 2053 mm |
| Verpakking | |
| Breedte verpakking | 650 mm |
| Diepte verpakking | 650 mm |
| Verpakkingsvolume | 883025 cmü |
| Gewicht verpakking | 73 kg |
| Logistieke gegevens | |
| Code UK-handelstarief | 94032080 |
| Land van herkomst | Turkije |
| Code geharmoniseerd systeem (HS) | 85381000 |
| Warranty | |
| Base Warranty | Non Non |
