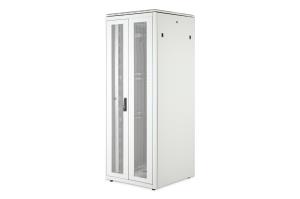

network cabinet Unique - 42U 2053x800x800mm perforated doors grey
ITCurry #: M9238594 | Article #: DN-31116-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The DIGITUS® Unique Series is made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany
- Special roof construction for fan unit with added lid which can be unmounted
- Sliding cable entry with rubber sealing on the base
- Locking system with swiveling lever handle on the front and rear door (prepared for profile half cylinder; adapter included)
- Steel front and rear door with 70% perforation for improved air circulation & heat discharge
- Rack is completely mounted
The network cabinets from the Unique series were developed for especially convenient and flexible network cabling. Inlets in the roof and floor equipped with brushes (starting with 26 rack units and a cabinet width of 800 mm), a sliding inlet in the floor structure with foam rubber seal and brush management panels on the back above and below the rear door (starting with 26 rack units) enable versatile use in a wide range of application scenarios. Vertical cable channels with brackets installed next to the profile rails (starting with a cabinet width of 800 mm) round off the design. An offset, removable cover with ventilation slits ensures enhanced air circulation. This features a special design for easy mounting of a fan module. Two pairs of galvanized 483 mm (19”) profile rails labeled with rack units readable in both directions are installed on the inside. Their depth is adjustable and they are connected to additional depth bars in the cabinet. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). Side walls and doors that can be locked or removed in a modular design improve accessibility. The door hinges can be switched. Furthermore, the cabinets can be completely dismantled if necessary due to their collapsible design.
| Kenmerken | |
| Rackcapaciteit | 42U |
| Soort | Vrijstaande rek |
| Maximale gewichtscapaciteit | 800 kg |
| Kleur van het product | Grijs |
| Materiaal | Staal |
| Achterdeurconstructie | Steel/Perforated |
| Voordeurconstructie | Staal |
| Zijpaneelconstructie | Staal |
| Verwijderbare zijpanelen | Ja |
| Inbegrepen zijpanelen | Ja |
| Sleutelsleuf | Ja |
| Sleutelvergrendeling achterdeur | Ja |
| Voordeur met sleutelvergrendeling | Ja |
| Zijpaneel met sleutelvergrendeling | Ja |
| Rekrails | Ja |
| Verstelbare montagerails | Ja |
| Verstelbare diepte | Ja |
| Verstelbare voeten | Ja |
| Verbeterd kabelbeheer | Ja |
| Internationale veiligheidscode (IP) | IP20 |
| Gewicht en omvang | |
| Breedte | 800 mm |
| Diepte | 800 mm |
| Inbouwdiepte (min) | 56,3 cm |
| Inbouwdiepte (max) | 74,3 cm |
| Verpakking | |
| Moeren inbegrepen | Ja |
| Moeren aantal | 36 |
| Inclusief schroeven | Ja |
| Aantal schroeven | 36 |
| Breedte verpakking | 850 mm |
| Diepte verpakking | 850 mm |
| Hoogte verpakking | 2103 mm |
| Verpakkingsvolume | 1519420 cmü |
| Gewicht verpakking | 154 kg |
| Logistieke gegevens | |
| Code UK-handelstarief | 94032080 |
| Land van herkomst | Turkije |
| Code geharmoniseerd systeem (HS) | 85381000 |
| Warranty | |
| Base Warranty | Non Non |
