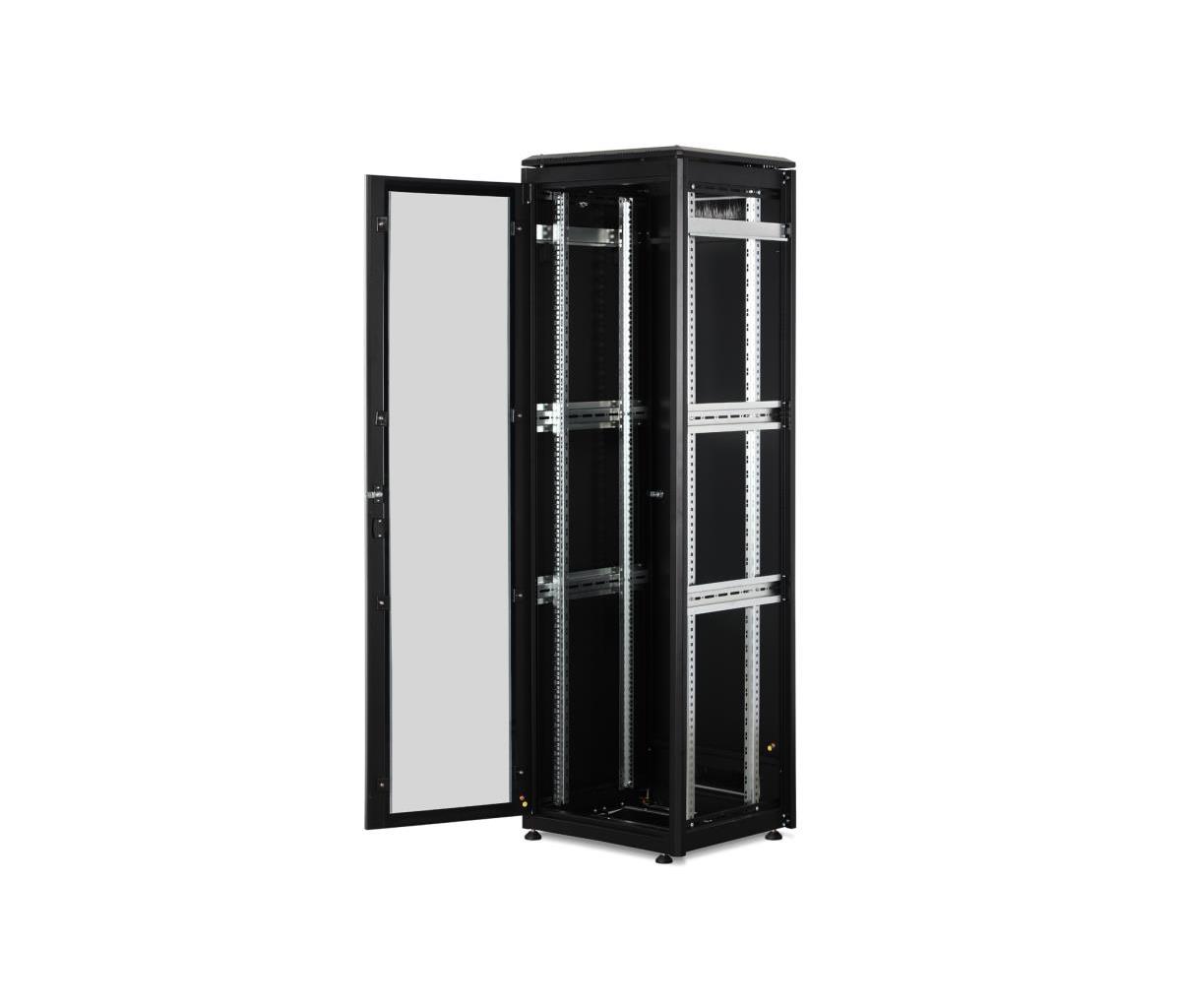

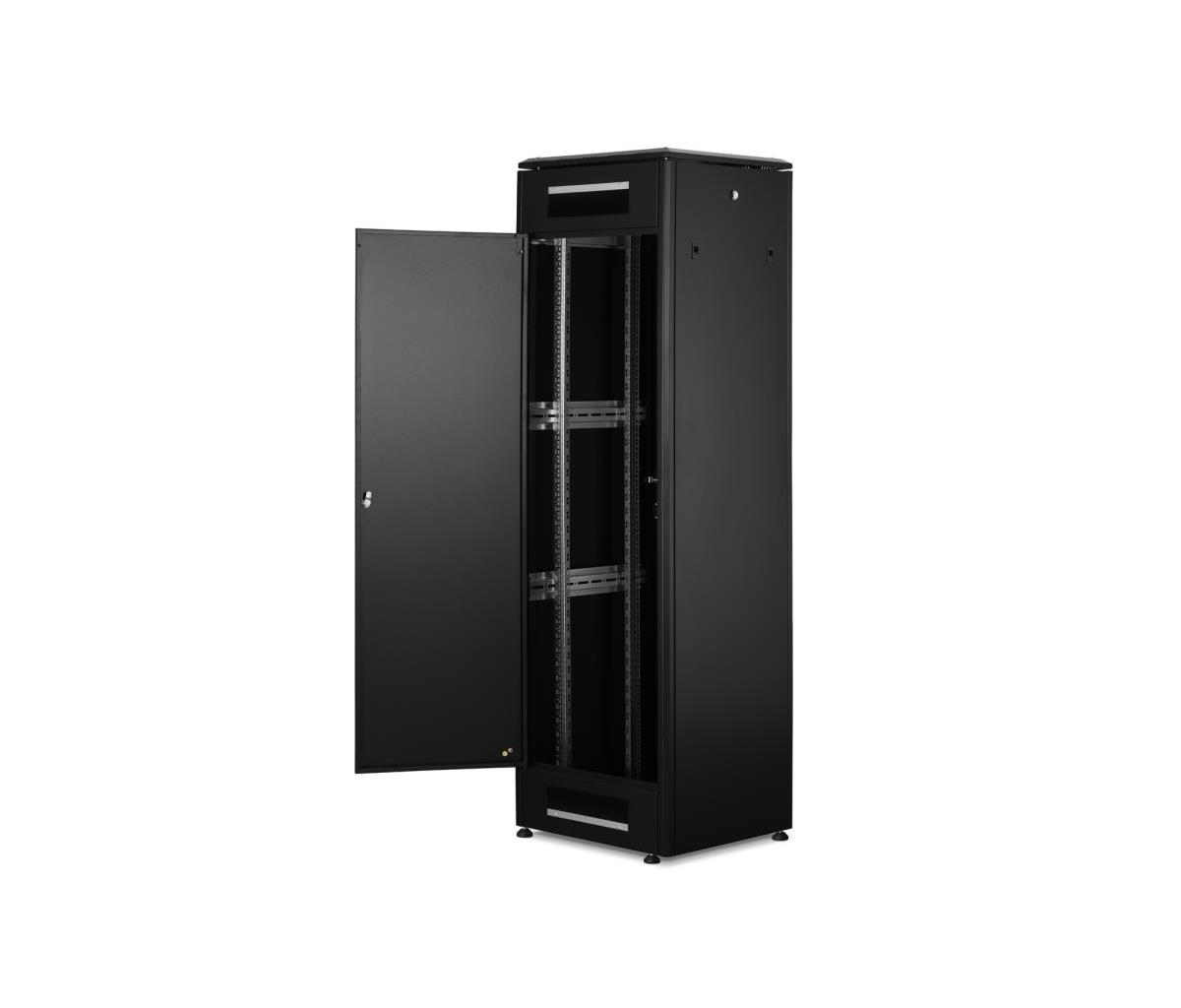

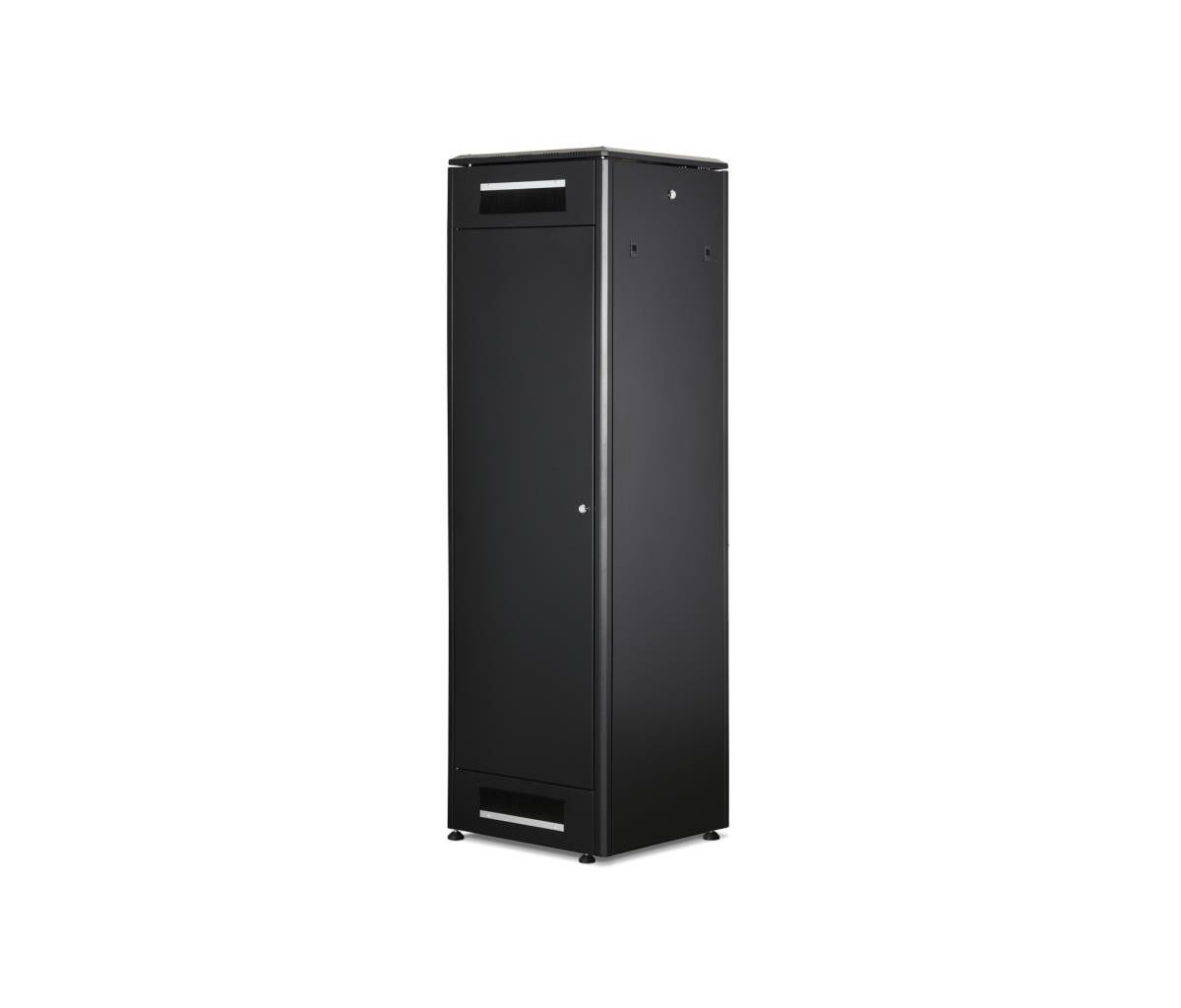

42U network cabinet 2053x600x600mm, color black RAL 9005
ITCurry #: M9235979 | Article #: DN-19 42U-6/6-B-1-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The DIGITUS® network cabinets of the Unique series combine maximum stability with optimum flexibility in cable management, for the high demands of modern IT infrastructure with a wide variety of application scenarios.
- High load capacity of the 483 mm (19") profile rails of up to 1200 kg
- Swivel handle with profile half-cylinder lock incl. key type 333 on the front door

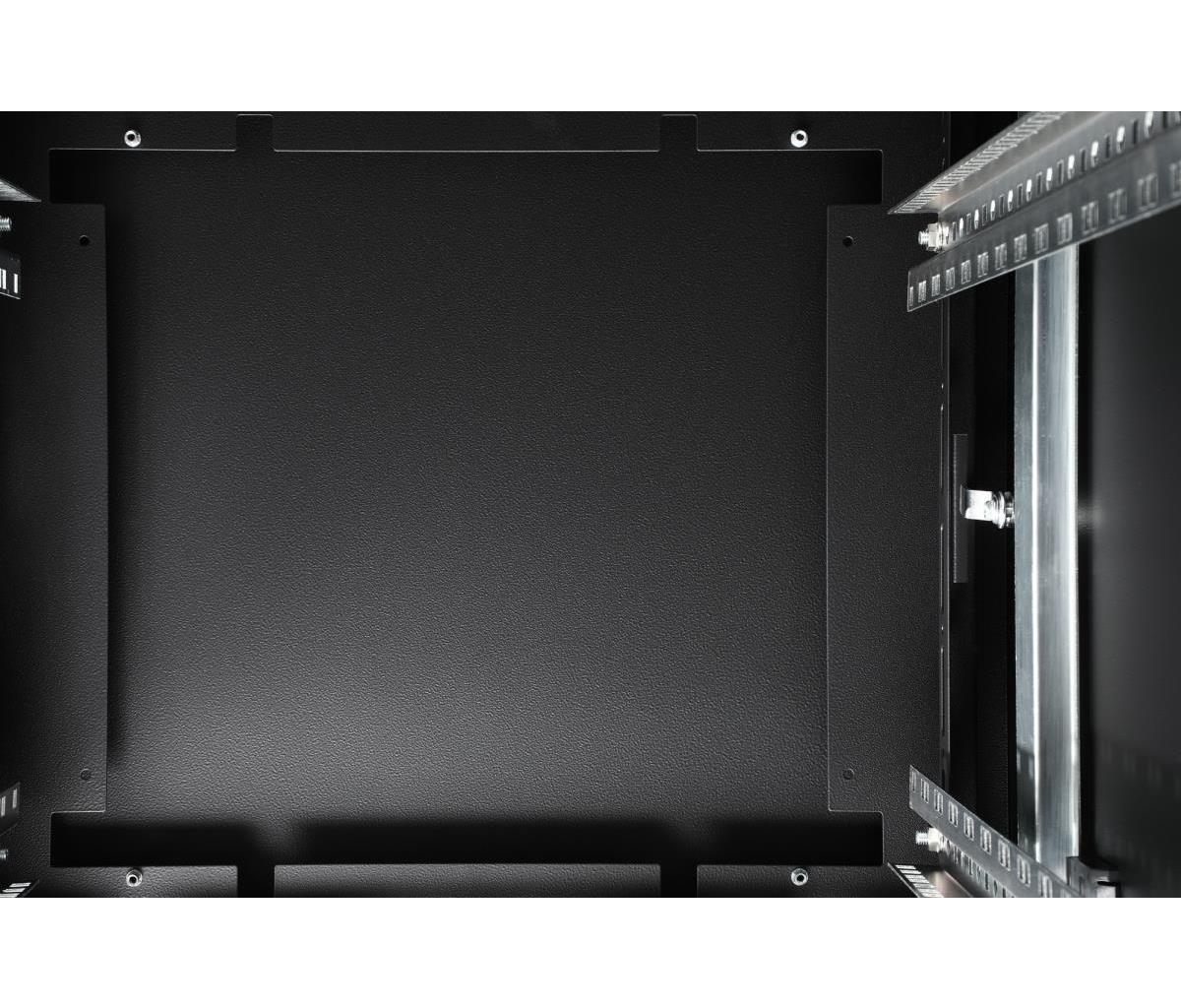

- Modular, openable base chassis with removable 19" blind panels

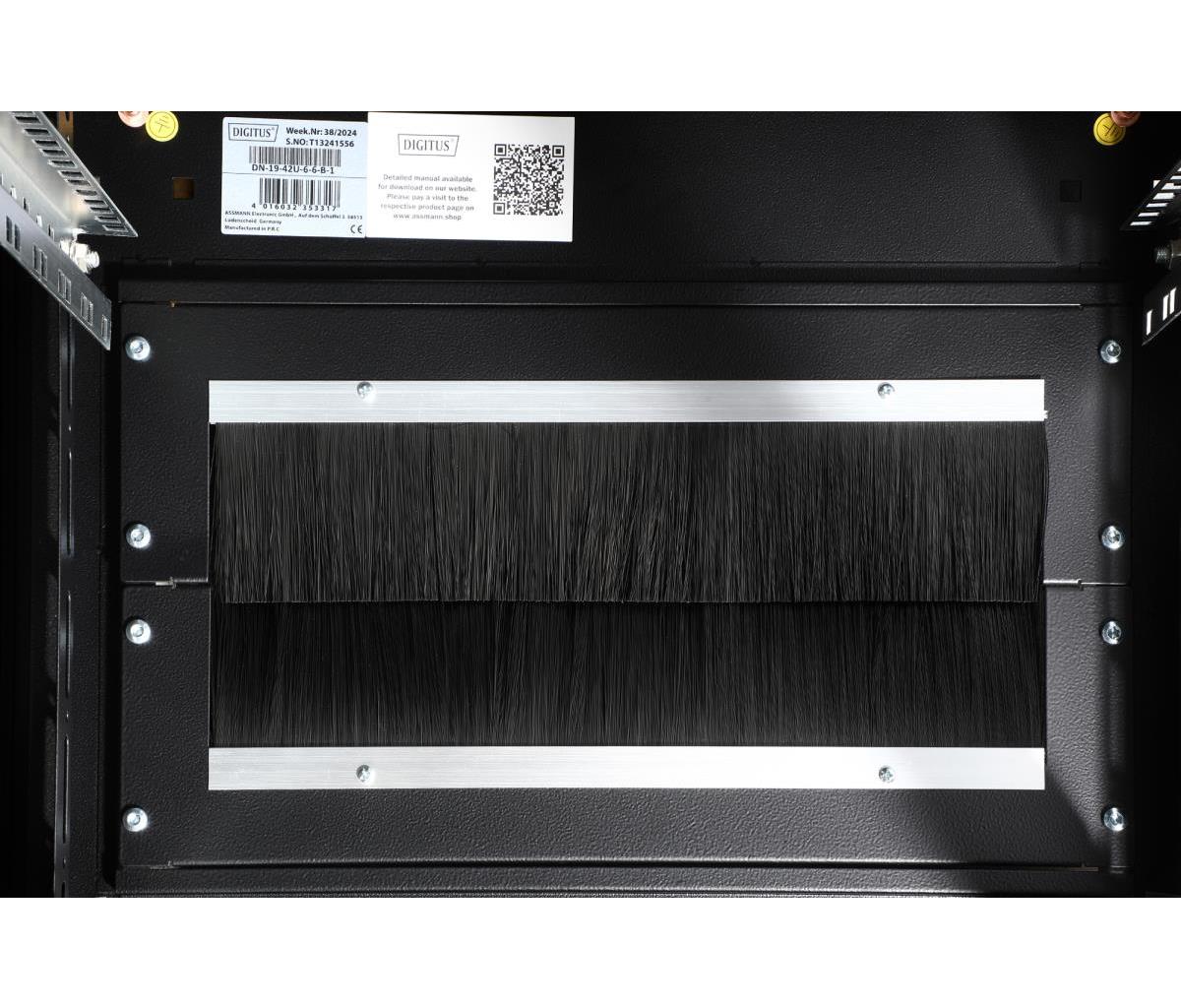

- Flexible cable routing options thanks to generous cable inlets with brushes in the base and rear

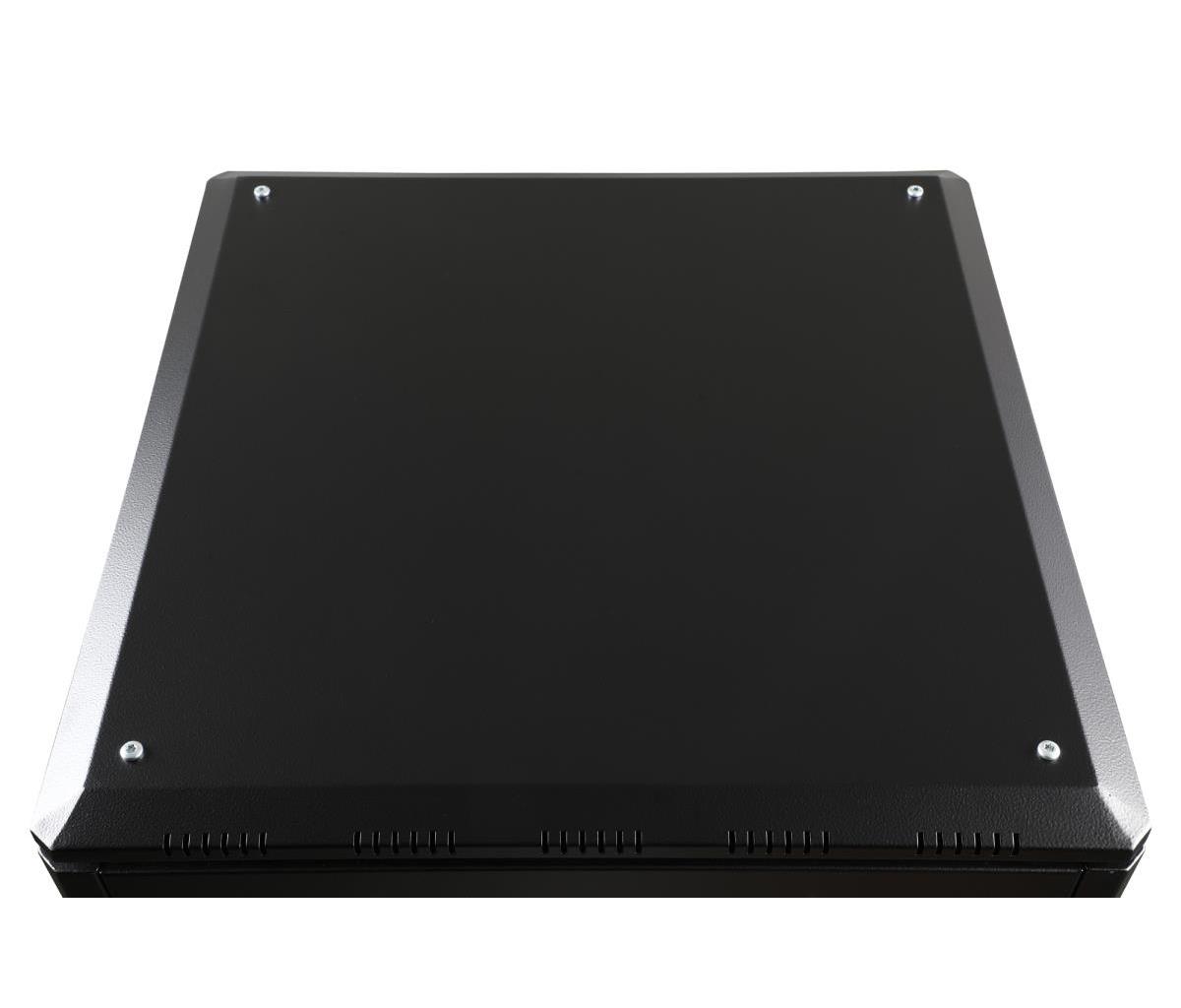

- Roof is prepared to accommodate a fan unit and an attached, removable cover
- Ready for immediate use: Delivery is assembled (cabinet can be completely dismantled if required)

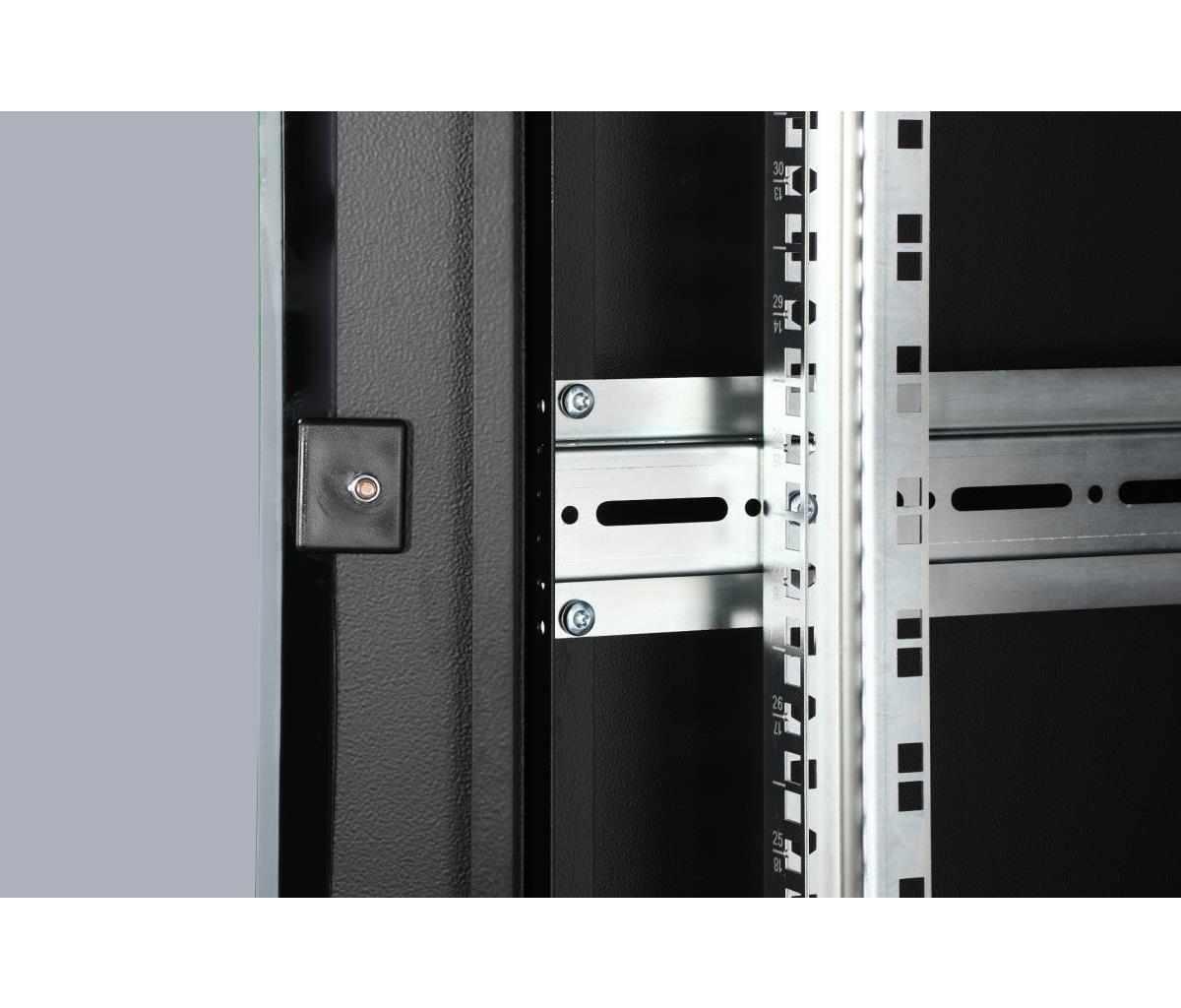

The network cabinets in the Unique series have been designed and produced for particularly convenient and flexible network cabling. Sophisticated optimizations offer market-compliant stability with maximum flexibility. A modular base chassis, which can be opened using screwed 483 mm (19") blind panels, offers sufficient space for cables of all kinds. In addition, there are cable inlets with brushes in the rear area of the base chassis. Rear brush strips above and below the rear door (from 26U) enable use in a wide range of application scenarios. Generous vertical cable ducts with cable routing aids and cover, installed in the front (from 800 mm enclosure width), perfectly round off the versatile features of the network enclosure. Two pairs of cranked and galvanized 483 mm (19") profile rails, labelled with height units that can be read in opposite directions, are installed inside. They are infinitely adjustable and are connected to additional depth struts in the cabinet. Each enclosure is a robust steel construction made from sheet steel up to 1.5 mm thick. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Modular lockable and removable side panels and doors improve accessibility. Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.
| Kenmerken | |
| Rackcapaciteit | 42U |
| Soort | Vrijstaande rek |
| Maximale gewichtscapaciteit | 800 kg |
| Kleur van het product | Zwart |
| Materiaal | Staal |
| Achterdeurconstructie | Staal |
| Voordeurconstructie | Glas |
| Inbegrepen zijpanelen | Ja |
| Internationale veiligheidscode (IP) | IP20 |
| Gewicht en omvang | |
| Maat | 48,3 cm (19") |
| Breedte | 600 mm |
| Diepte | 600 mm |
| Hoogte | 2053 mm |
| Verpakking | |
| Breedte verpakking | 650 mm |
| Diepte verpakking | 650 mm |
| Verpakkingsvolume | 888518 cmü |
| Gewicht verpakking | 74,7 kg |
| Logistieke gegevens | |
| Code UK-handelstarief | 94032080 |
| Land van herkomst | Turkije |
| Code geharmoniseerd systeem (HS) | 85381000 |
| Warranty | |
| Base Warranty | Non Non |
