3x1 HDMI Switch. 4K/60Hz HDCP 2.3
ITCurry #: M9239320 | Article #: DS-55331-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Extend your TV/monitor with additional HDMI connections – Switch conveniently between the signal sources without replugging
- Switch conveniently between 3 signal sources via remote control, on the device itself or via automatic recognition.
- Additional HDMI connections for your output device - 3 signal sources via just 1 HDMI connection/cable on the screen
- Power supply via Micro USB cable (included)
- Max. resolution: 4K/60Hz
- Video bandwidth: 18 Gbps
- Supports High Dynamic Range (HDR)
- Supports HDCP 2.2
- Supports Consumer Electronic Control (CEC)
- Supports Deep Color (36-bit)
- HDMI 2.0

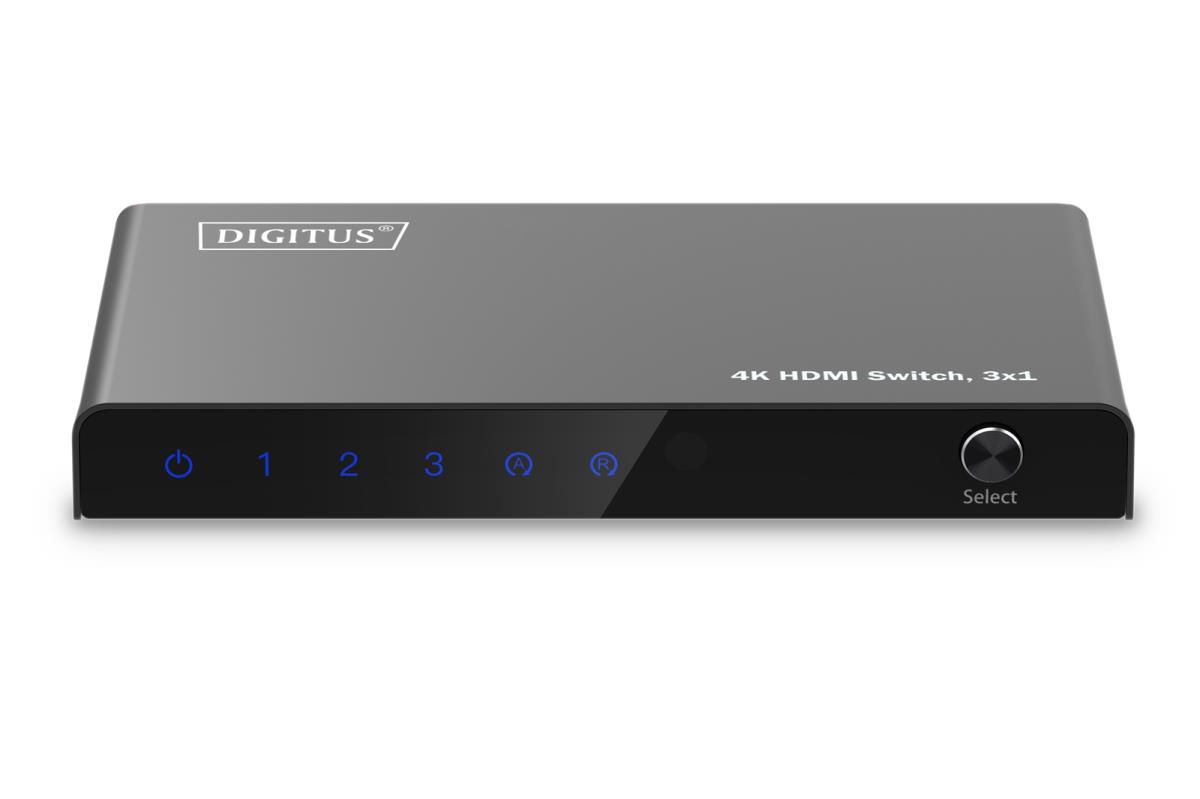

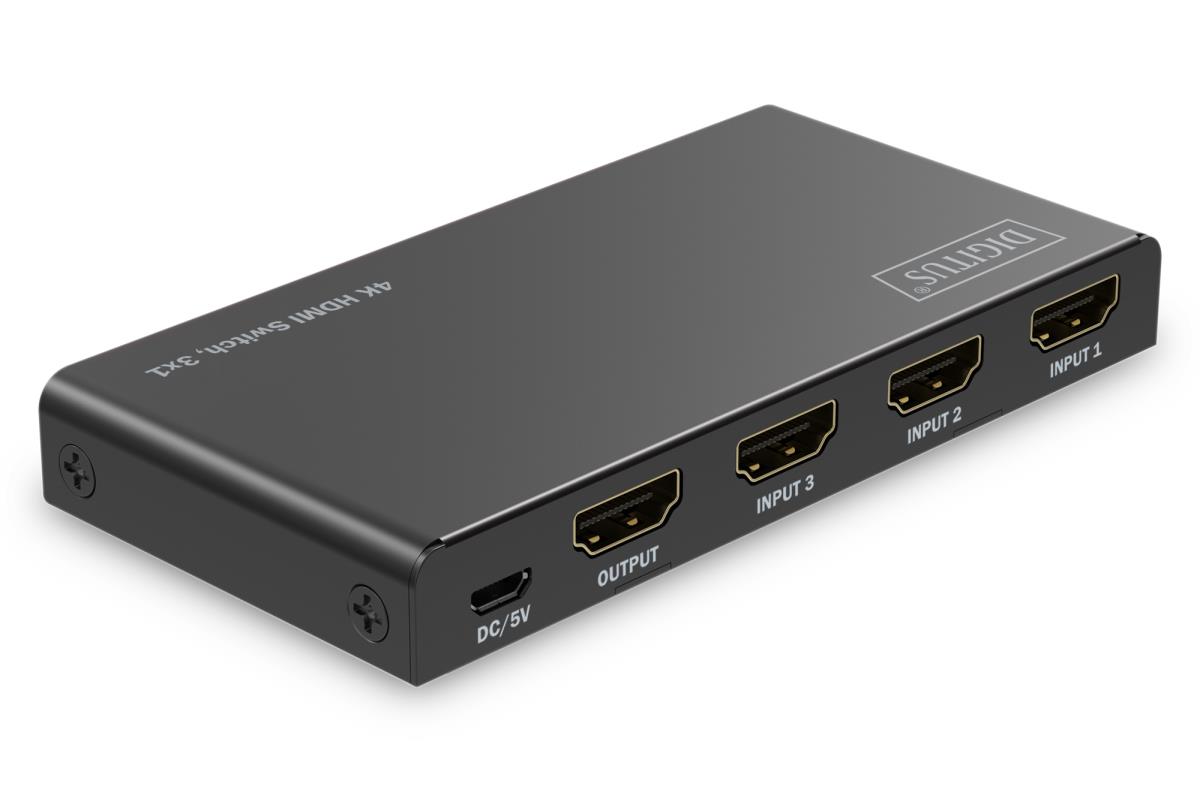

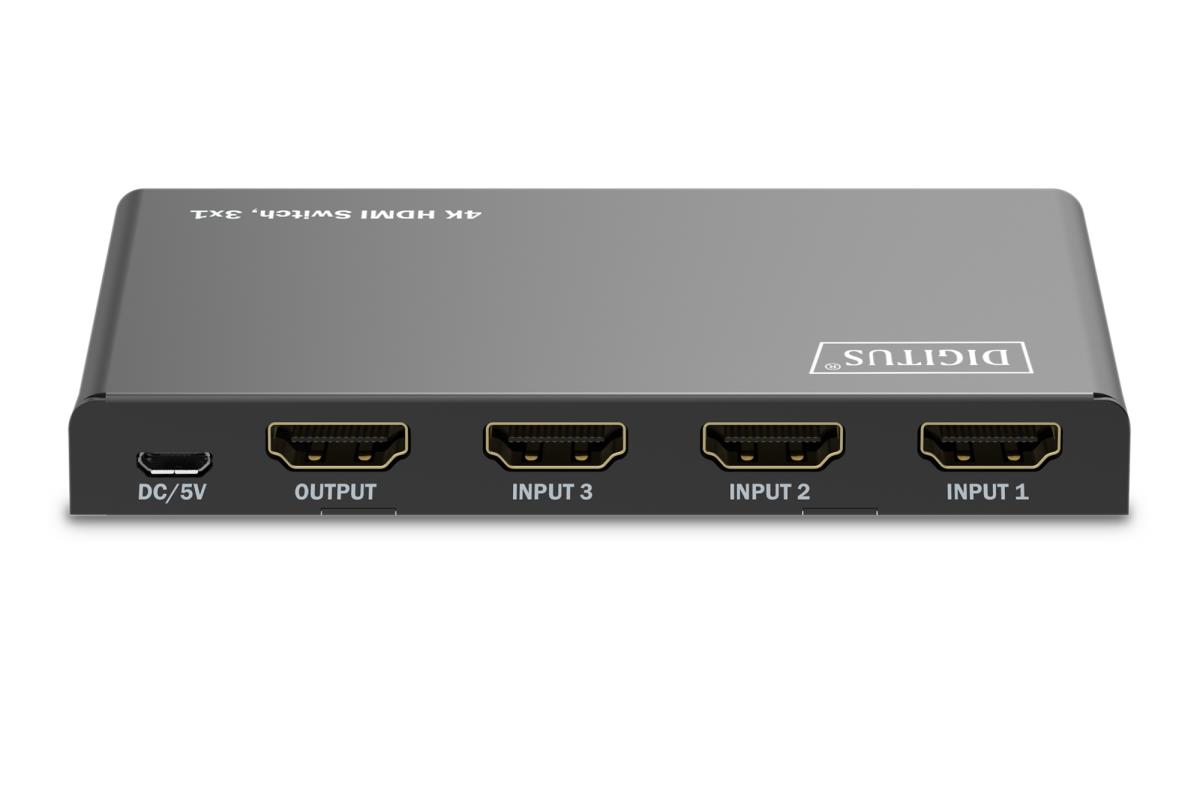

The DIGITUS® 4K HDMI Switch, 3x1 offers additional HDMI connections for your output display - 3 signal sources can be connected using just 1 HDMI connection on the screen. The video changeover switch is supplied with power via the Micro USB cable, e.g. via the source device or a USB charging adapter. Switch conveniently between the signal sources via remote control, on the device itself or via automatic recognition. Perfectly suited for use with wall installation of TV - only a HDMI cable is required to connect the sources.
| Poorten & interfaces | |
| Aansluiting video | HDMI |
| Aantal HDMI-poorten | 4 |
| HDMI versie | 2.0 |
| HDMI in | 3 |
| Aantal HDMI-uitgangen | 1 |
| USB-poorttype | Micro-USB |
| Aansluiting voor netstroomadapter | Ja |
| Kenmerken | |
| Materiaal | Metaal |
| Kleur van het product | Zwart |
| Consumer Electronics Control (CEC)-ondersteuning | Ja |
| HDR-ondersteuning | Ja |
| HDCP | Ja |
| Bandbreedte | 18 Gbit/s |
| LED-indicatoren | Status |
| Maximum resolutie | 3840 x 2160 Pixels |
| Snoerlengte | 0,75 m |
| HD type | 4K Ultra HD |
| Kleurdiepte | 36 Bit |
| Dolby technologie‰n | DTS, Dolby Digital |
| HDCP versie | 2.3 |
| Energie | |
| Stroomverbruik (typisch) | 5 W |
| Gewicht en omvang | |
| Breedte | 56 mm |
| Diepte | 112 mm |
| Hoogte | 14 mm |
| Gewicht | 145 g |
| Verpakking | |
| Breedte verpakking | 123 mm |
| Diepte verpakking | 179 mm |
| Hoogte verpakking | 45 mm |
| Gewicht verpakking | 310 g |
| Inhoud van de verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Afstandsbediening inbegrepen | Ja |
| Meegeleverde kabels | USB |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 70 øC |
| Warranty | |
| Base Warranty | Non Non |
