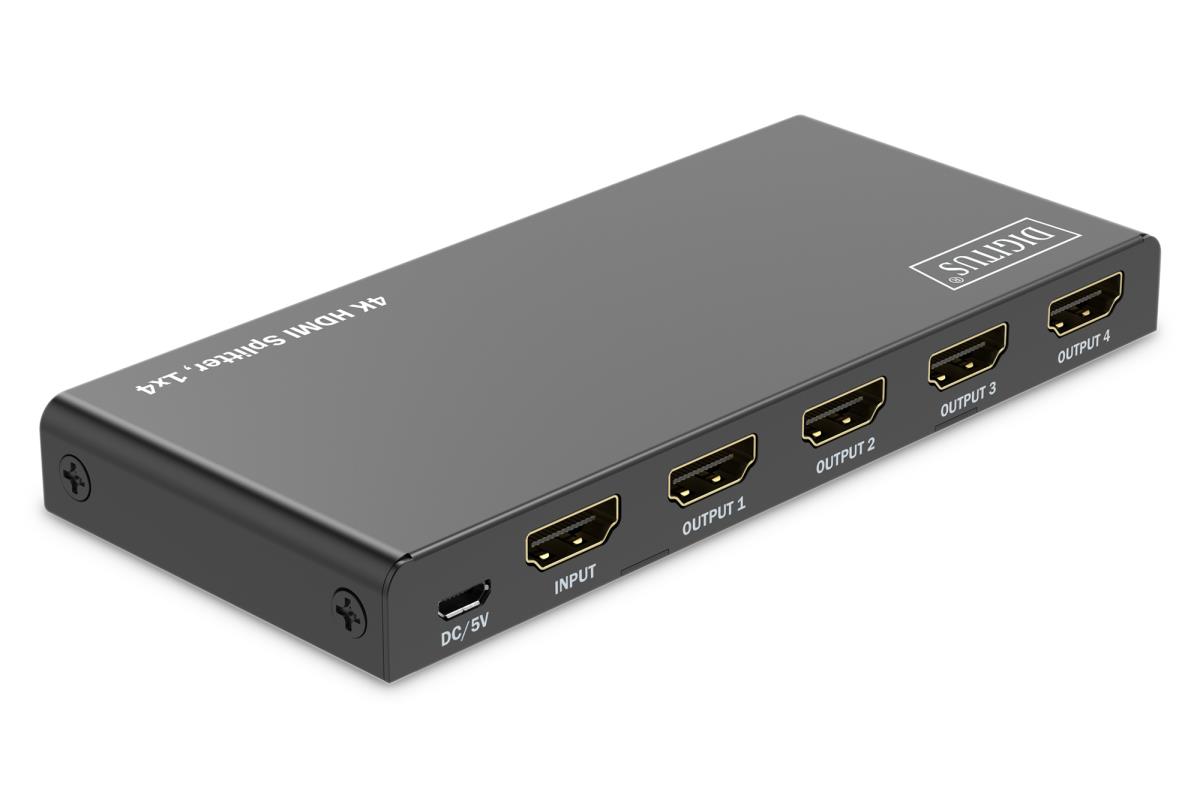

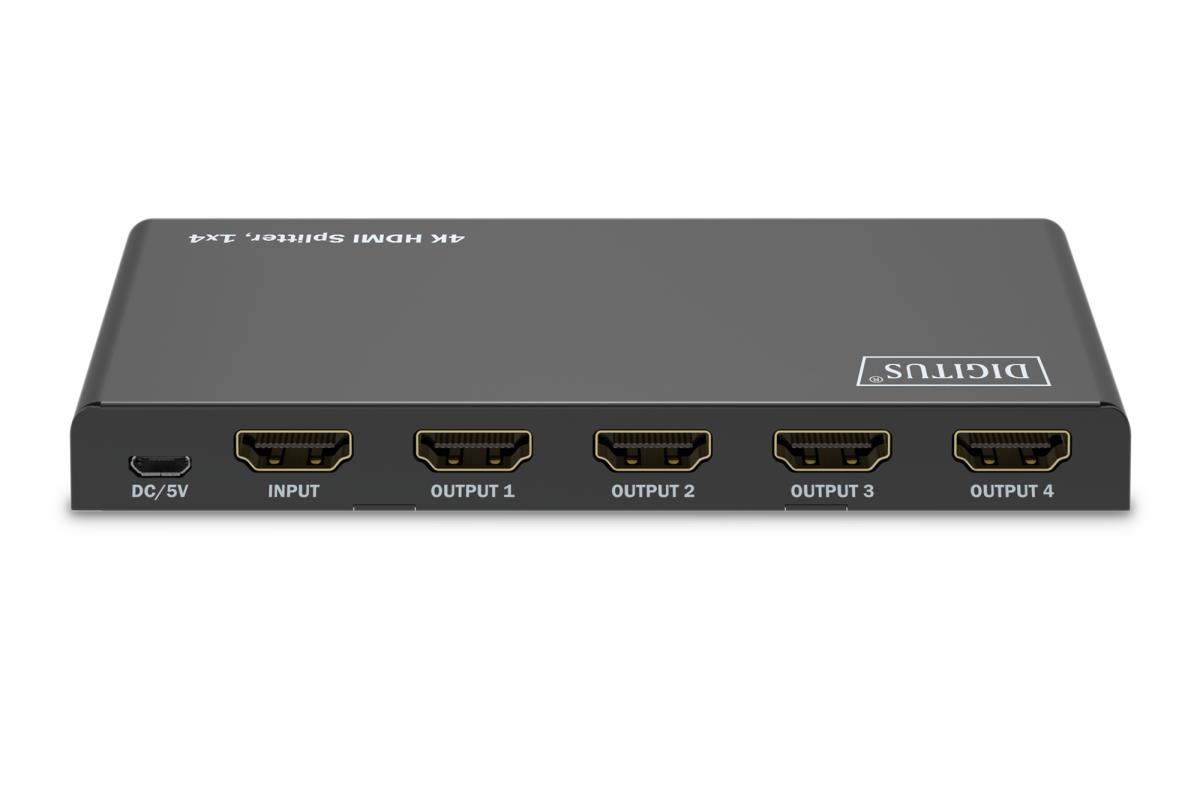

1x4 HDMI Splitter. 4K/60Hz HDCP 2.3. EDID Control
ITCurry #: M9239324 | Article #: DS-55337
Verwante producten
Product Informatie
The DIGITUS® HDMI Splitter splits/mirrors your HDMI device’s audio and video signals on 4 TVs, monitors or projectors with a resolution of max. 4K / 60 Hz.
- Distributes an HDMI signal onto 4 TVs/monitors/projectors
- EDID management: Auto/Copy/Downscaler
- Power supply via Micro USB cable (included)
- Max. resolution: 4K/60Hz (4:4:4)
- Video bandwidth: 18 Gbps
- Supports High Dynamic Range (HDR)
- Supports HDCP 2.2
- Supports Deep Color (36-bit)
- HDMI 2.0
The DIGITUS® HDMI Splitter splits your HDMI device’s audio and video signals on 4 TVs, monitors or projectors with a resolution of UHD 4K / 60 Hz. Via EDID management, you can choose from 3 modes (Copy, Auto, Downscaler). The integrated Downscaler supports the display of 4K contents on Full HD displays. Additionally, 4K as well as Full HD displays can be operated simultaneously. Thanks to its Auto-EDID function, the splitter automatically recognizes the connected displays - no manual settings required. The video splitter is supplied with power via the Micro USB cable, e.g. via the source device or a USB charging adapter.
| Poorten & interfaces | |
| Aansluiting video | HDMI |
| Video uit | 4x HDMI |
| HDMI versie | 2.0 |
| Hoeveelheid Video ports | 4 |
| Aansluiting(en) | Micro USB |
| Consumer Electronics Control (CEC)-ondersteuning | Ja |
| Aansluiting voor netstroomadapter | Ja |
| Kenmerken | |
| Kleur van het product | Zwart |
| Materiaal behuizing | Metaal |
| Maximum resolutie | 3840 x 2160 Pixels |
| HD type | 4K Ultra HD |
| Kleurdiepte | 36 Bit |
| Maximale refresh snelheid | 60 Hz |
| HDCP versie | 2.3 |
| Extended display identification data (EDID) | Ja |
| HDR-ondersteuning | Ja |
| Snoerlengte | 0,75 m |
| Overdrachtssnelheid | 18 Gbit/s |
| HDCP | Ja |
| LED-indicatoren | Status |
| Dolby technologie‰n | DTS, Dolby Digital |
| Energie | |
| Stroomverbruik (typisch) | 5 W |
| Gewicht en omvang | |
| Breedte | 61 mm |
| Diepte | 136 mm |
| Hoogte | 14 mm |
| Gewicht | 182 g |
| Verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Breedte verpakking | 123 mm |
| Diepte verpakking | 179 mm |
| Hoogte verpakking | 45 mm |
| Gewicht verpakking | 310 g |
| Inhoud van de verpakking | |
| Meegeleverde kabels | USB |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 70 øC |
| Warranty | |
| Base Warranty | Non Non |
