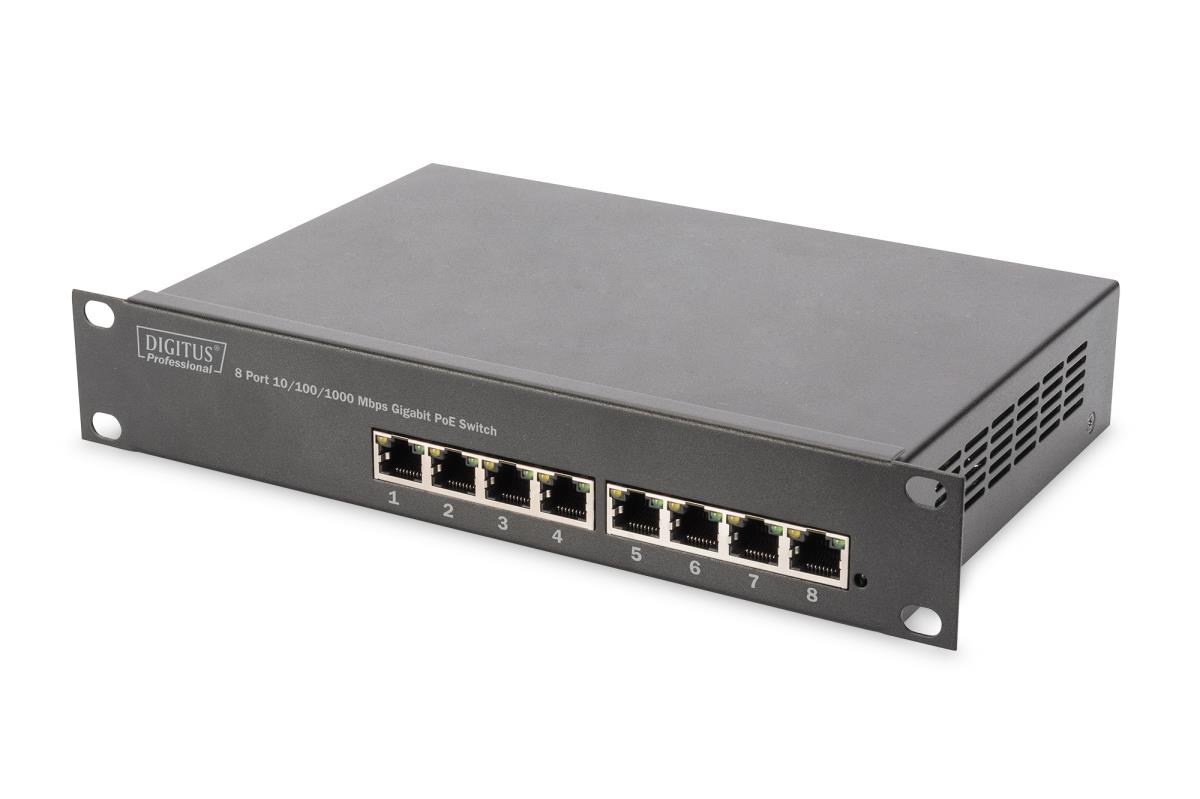

10 inch Switch - 8-Port Gigabit Unmanaged PoE+ 80 W
ITCurry #: M923A033 | Article #: DN-95317-1-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Centralized power and gigabit data delivery to PoE-enabled devices via a single cable—ideal for camera systems, Wi-Fi access points, and IP building automation.
- 8 Gigabit RJ45 ports with PoE+ (30 W per port)
- PoE according to IEEE 802.3af/at
- 80 W total PoE budget
- Non-blocking Gigabit switching, lossless
- A centralized power supply reduces installation effort and costs
- Energy- and cost-efficient centralized PoE deployment
- Auto-MDI/MDI-X – no crossover cables required
- Fanless metal enclosure for 24/7 operation
- Compact 10-inch design
- Plug-and-Play – no configuration required
The DIGITUS® DN-95317-1 reliably supplies PoE-enabled network devices with power and data via eight Gigabit RJ45 ports—all through a single network cable. Thanks to IEEE 802.3af/at (PoE+), it delivers up to 30 W per port and powers access points, IP cameras, VoIP phones, or IoT systems directly, without the need for separate power supplies at the end devices. The total 80-W PoE budget is sufficient for the simultaneous operation of multiple power-hungry devices. The non-blocking store-and-forward architecture ensures lossless Gigabit forwarding without any configuration effort. The fanless metal housing operates silently—ideal for compact 10-inch cabinets and wall-mounted distribution panels in offices, retail settings, residential complexes, or equipment rooms.
| Beheerfuncties | |
| Switch type | Unmanaged |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 8 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Netwerk | |
| Netwerkstandaard | IEEE 802.3at |
| 10G support | Nee |
| Full duplex | Ja |
| Auto MDI/MDI-X | Ja |
| VLAN=ondersteuning | Nee |
| Data-uitwisseling | |
| Switchingcapaciteit | 16 Gbit/s |
| MAC-adrestabel | 8000 entries |
| Design | |
| Rack-montage | Ja |
| Kleur van het product | Grijs |
| Materiaal behuizing | Metaal |
| Vandaalbestendig | Nee |
| Geschikt voor buitengebruik | Nee |
| Energie | |
| Stroombron | Power over Ethernet (PoE) |
| Vermogenstoevoer inclusief | Nee |
| Vermogensverbruik (max) | 96 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Ja |
| Totaal Power over Ethernet (PoE)-budget | 80 W |
| Overige specificaties | |
| Ethernet interface type | Gigabit Ethernet |
| Gewicht en omvang | |
| Breedte | 250 mm |
| Diepte | 150 mm |
| Hoogte | 42 mm |
| Verpakking | |
| Breedte verpakking | 240 mm |
| Diepte verpakking | 320 mm |
| Hoogte verpakking | 67 mm |
| Verpakkingsvolume | 5145,6 cmü |
| Gewicht verpakking | 1,65 kg |
| Logistieke gegevens | |
| Code UK-handelstarief | 85176200 |
| Land van herkomst | China |
| Warranty | |
| Base Warranty | Non Non |
