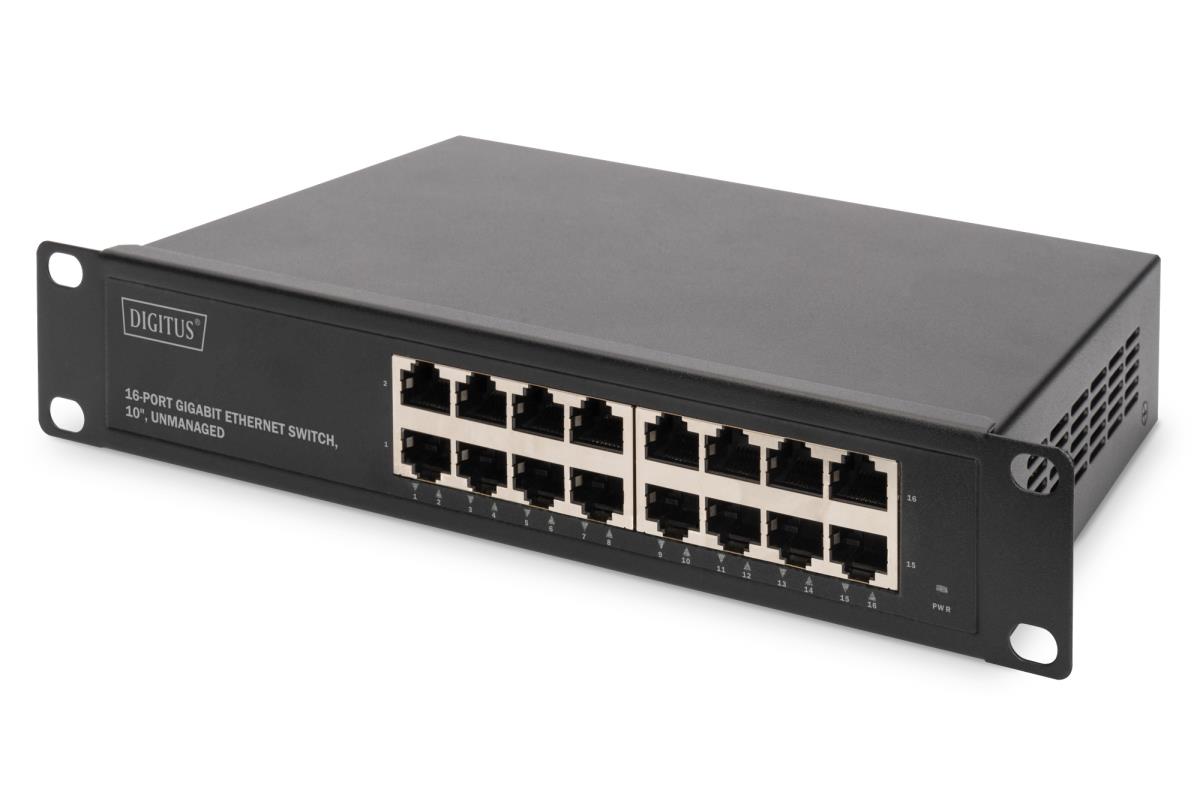

10 inch Switch - 16-port Gigabit Unmanaged 16-port, 10 inch, unmanaged
ITCurry #: M923A034 | Article #: DN-80115-1-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Quickly and cost-effectively expands networks with 16 Gigabit ports—ideal for compact 10-inch distribution solutions.
- 16 × 10/100/1000Base-T RJ45 ports
- 32 Gbps non-blocking switching capacity
- Forwarding rate: up to 1,488 Mpps per port
- Fanless metal enclosure for 24/7 operation
- Plug-and-Play – no configuration required
- Auto-Negotiation & Auto-MDI/MDI-X
- Full compatibility with IEEE 802.3, 802.3u, 802.3ab, and 802.3x
- IEEE 802.3x Flow Control
- 8K MAC Address Table
- Low power consumption (max. 15 W)
- Designed specifically for 10" enclosures (1U)
- Sturdy metal housing for long-lasting use
The DIGITUS® DN-80115-1 packs 16 Gigabit ports into a compact 10-inch footprint, making it ideal for networks with many wired devices. With 32 Gbps switching capacity, it offers sufficient headroom for parallel data transfers even under heavy load. As an unmanaged Layer 2 switch, it is ready for use without configuration: Auto-negotiation and Auto-MDI/MDI-X automatically detect speed, duplex mode, and cable type. The non-blocking store-and-forward architecture with IEEE 802.3x flow control ensures stable, packet-verified forwarding. The fanless metal housing ensures silent continuous operation and is ideal for 10-inch distribution cabinets, wall-mounted distribution units, and structured building cabling.
| Beheerfuncties | |
| Switch type | Unmanaged |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 16 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal Gigabit Ethernet (koper)-poorten | 16 |
| Netstekker | AC-in-aansluiting |
| Netwerk | |
| Netwerkstandaard | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | Nee |
| Koperen ethernetbekabelingstechnologie | 10BASE-T, 100BASE-T, 1000BASE-T |
| Full duplex | Ja |
| Half-duplex | Ja |
| Auto MDI/MDI-X | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| VLAN=ondersteuning | Nee |
| Data-uitwisseling | |
| Switchingcapaciteit | 32 Gbit/s |
| Verzending snelheid | 1488 Mpps |
| MAC-adrestabel | 8000 entries |
| Store-and-forward | Ja |
| Design | |
| Rack-montage | Ja |
| Vormfactor | 1U |
| Kleur van het product | Grijs |
| Materiaal behuizing | Metaal |
| LED-indicatoren | Ja |
| Vandaalbestendig | Nee |
| Geschikt voor buitengebruik | Nee |
| Prestatie | |
| Fanloos | Ja |
| Energie | |
| Stroombron | AC |
| Vermogenstoevoer inclusief | Ja |
| Vermogenstoevoer locatie | Intern |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50/60 Hz |
| Vermogensverbruik (max) | 15 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Overige specificaties | |
| Ethernet interface type | Gigabit Ethernet |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -10 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
| Gewicht en omvang | |
| Breedte | 250 mm |
| Diepte | 150 mm |
| Hoogte | 42 mm |
| Inhoud van de verpakking | |
| Meegeleverde kabels | AC |
| Snelstartgids | Ja |
| Verpakking | |
| Type verpakking | Doos |
| Breedte verpakking | 240 mm |
| Diepte verpakking | 67 mm |
| Hoogte verpakking | 320 mm |
| Verpakkingsvolume | 5145,6 cmü |
| Gewicht verpakking | 1,6 kg |
| Technische details | |
| Producten per (binnenste) verzendverpakking | 1 stuk(s) |
| (Binnenste) verzendverpakking gewicht | 1,6 kg |
| Logistieke gegevens | |
| Code UK-handelstarief | 85176200 |
| Land van herkomst | China |
| (Buitenste) hoofdverpakking breedte | 345 mm |
| (Buitenste) hoofdverpakking lengte | 330 mm |
| (Buitenste) hoofdverpakking hoogte | 490 mm |
| Code geharmoniseerd systeem (HS) | 85176990 |
| (Buitenste) hoofdverpakking brutogewicht | 12,8 kg |
| Hoeveelheid per (buitenste) hoofdverpakking | 8 stuk(s) |
| Warranty | |
| Base Warranty | Non Non |
