D8004 Unmanaged Poe Switch
ITCurry #: 13835750 | Article #: 02101-002
slide 2 of 5
Prijs:
102,13
Excl. btw
Levering in Benelux:
GRATIS Levering.
Nu niet op voorraad. Bel ons!
Verwante producten
slide 6 to 10 of 15
Product Informatie

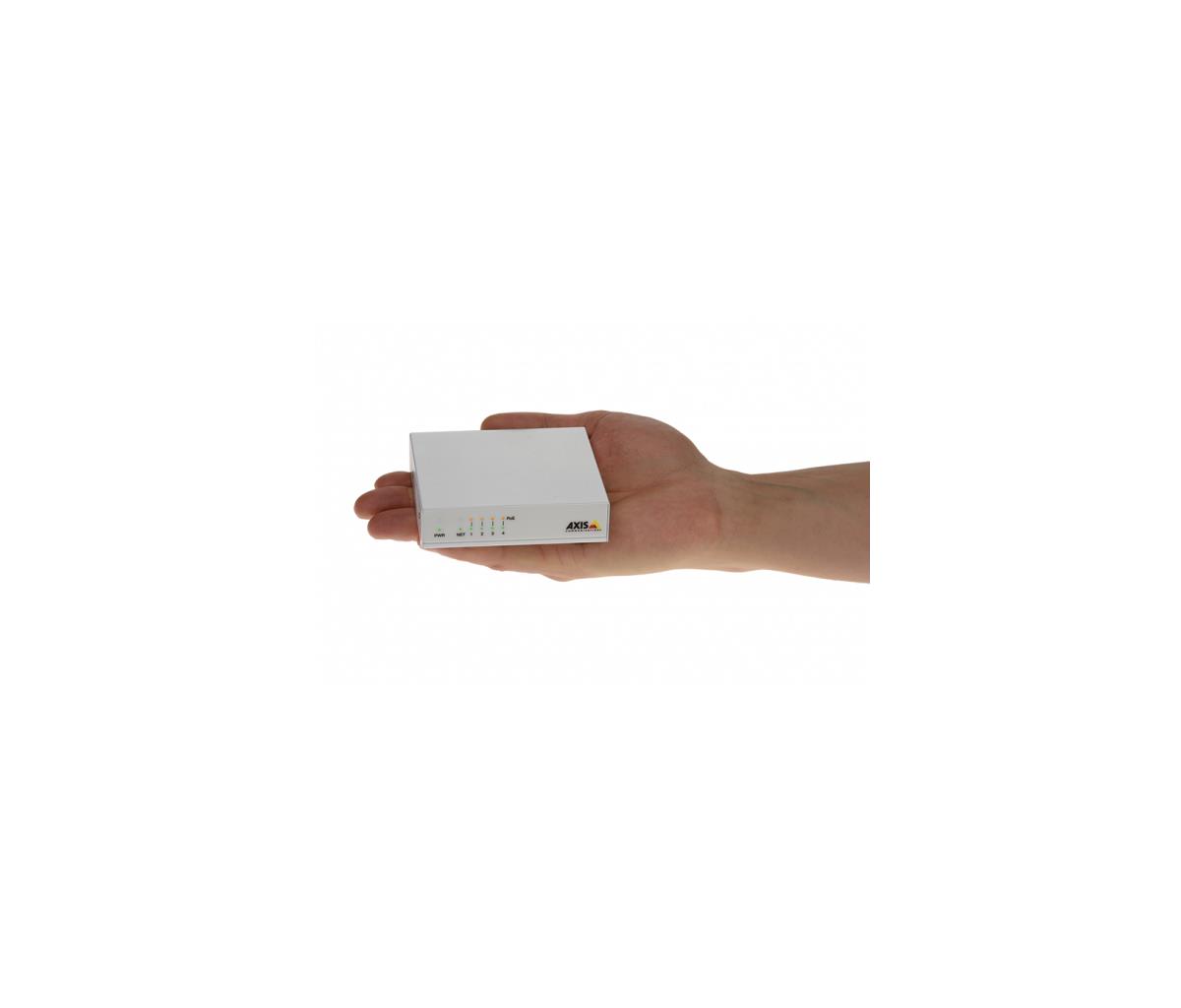

The palm-sized AXIS D8004 Unmanaged PoE Switch delivers network and power for up to 4 network devices with plug and play installation. Using AXIS D8004 Unmanaged PoE Switch as a central power source simplifies both installation and maintenance. The switch, together with AXIS surveillance cards, is perfect for small systems with few devices and basic video storage requirements. AXIS D8004 Unmanaged PoE Switch is also ideal when it’s not possible to pull multiple cables. If there’s local power available, simply pull one cable with data connection from the core switch or router, and AXIS D8004 Unmanaged PoE Switch can provide Power over Ethernet (PoE) for all 4 products.
| Beheerfuncties | |
| Switch type | Unmanaged |
| Poorten & interfaces | |

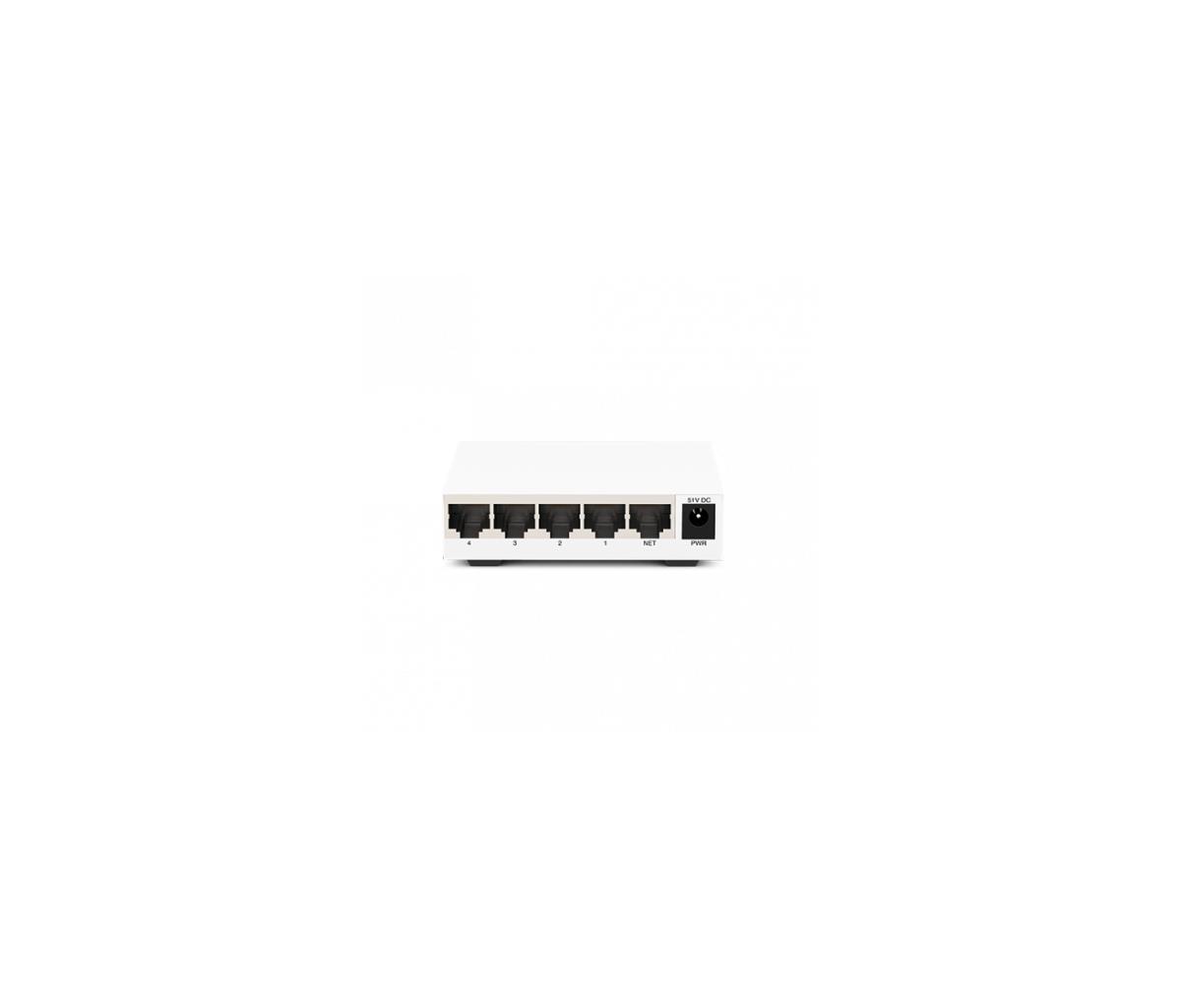

| Aantal basis-switching RJ-45 Ethernet-poorten | 4 |
| Type basis-switching RJ-45 Ethernet-poorten | Fast Ethernet (10/100) |
| Netstekker | DC-in ingang |
| Netwerk | |
| Netwerkstandaard | IEEE 802.3af, IEEE 802.3at |
| 10G support | Nee |
| Ethernet LAN, data-overdrachtsnelheden | 10,100 Mbit/s |
| Design | |
| Kleur van het product | Wit |
| Materiaal behuizing | Metaal |

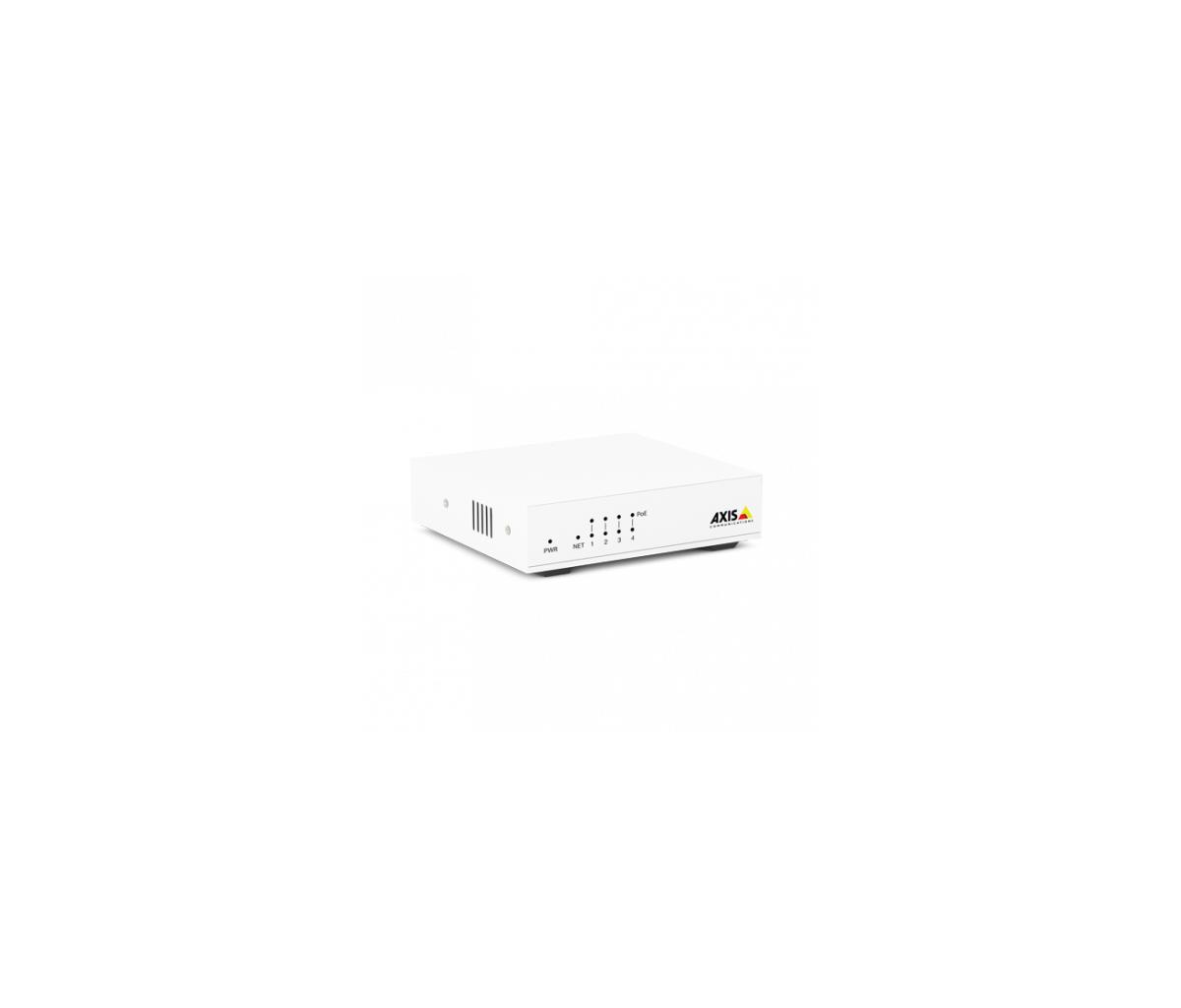

| LED-indicatoren | Activiteit, Netwerk, Power over Ethernet (PoE), Stroom |
| Energie | |
| Vermogenstoevoer inclusief | Ja |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Vermogensverbruik (max) | 62 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Ja |
| Aantal Power over Ethernet plus (PoE +)-poorten | 4 |
| Vermogen per poort Power over Ethernet (PoE) | 30 W |
| Totaal Power over Ethernet (PoE)-budget | 60 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 50 øC |
| Temperatuur bij opslag | -10 - 50 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Gewicht en omvang | |
| Breedte | 90 mm |
| Diepte | 80 mm |
| Hoogte | 21 mm |
| Gewicht | 172 g |
| Inhoud van de verpakking | |
| Meegeleverde kabels | AC |
| Gebruiksaanwijzing | Ja |
| Certificaten | |
| Certificering | EN 55022:2010/55032:2012 + AC : 2013 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 50581, FCC Part 15 Subpart B Class B, ICES-003 Class B, IEC/EN/UL 60950-1, CE, WEEE, C-Tick/RCM |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
