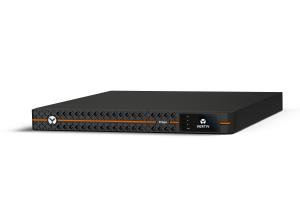

EDGE UPS 1kVA 230V 1U Rack
ITCurry #: N6415219 | Article #: EDGE-1000IRM1U-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The Vertiv Edge uninterruptible power supply (UPS) is designed to protect server and networking equipment in distributed and Edge IT applications. With compact 1U rack format, this 1000VA UPS offers reliable protection from downtime and damage caused by power spikes, swells and brownouts. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. With sine wave output, this line interactive UPS ensures availability of network closets and Edge data centers. It operates at up to 98% efficiency in normal operation mode, providing energy savings. Add optional Vertiv Intellislot SNMP/Webcards for remote power management and OS's shutdown with free Vertiv Power Assist software. The Edge family has a wide range of power ratings, from 500VA up to 3000VA and form factors, such as mini-tower, 1U rack and rack/tower. It is easy to install, configure and operate and comes with an intuitive, color LCD screen.
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 1 kVA |
| Output power | 900 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 166 V |
| Input operation voltage (max) | 278 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 624 J |
| Efficiency | 97% |
| Country of origin | China |
| Ports & interfaces | |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 3 AC outlet(s) |
| USB port | Yes |
| Emergency Power Off (EPO) connector | Yes |
| Battery | |
| Battery recharge time | 3 h |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 1U |
| Cable length | 3 m |
| Product colour | Black |
| Display type | LCD |
| Safety | IEC/EN62040-1 |
| Certification | CE, CB Report, EAC, RCM, UKCA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -25 - 55 øC |
| Operating relative humidity (H-H) | 20 - 90% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 438 mm |
| Depth | 480 mm |
| Height | 43 mm |
| Weight | 16 kg |
| Package width | 570 mm |
| Package depth | 700 mm |
| Package height | 200 mm |
| Package weight | 23 kg |
| Logistics data | |
| Shipping (inner) case width | 57 cm |
| Shipping (inner) case length | 70 cm |
| Shipping (inner) case height | 20 cm |
| Shipping (inner) case gross weight | 23.4 kg |
| Warranty | |
| Base Warranty | Non Non |
