EDGE UPS 2.2kVA 230V 2U Rack/Tower
ITCurry #: N6415223 | Article #: EDGE-2200IRT2UXL-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

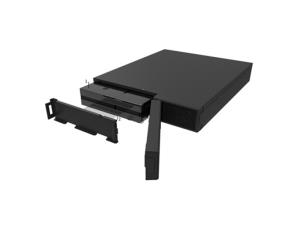

The Vertiv Edge uninterruptible power supply (UPS) is designed to protect server and networking equipment in distributed and Edge IT applications. With 2U convertible rack/tower format, this 2200VA UPS offers reliable protection from downtime and damage caused by power spikes, swells and brownouts. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. With sine wave output, this line interactive UPS ensures availability of network closets and Edge data centers. It operates at up to 98% efficiency in normal operation mode, providing energy savings. Add optional Vertiv Intellislot SNMP/Webcards for remote power management and OS's shutdown with free Vertiv Power Assist software. The Edge family has a wide range of power ratings, from 500VA up to 3000VA and form factors, such as mini-tower, 1U rack and rack/tower. It is easy to install, configure and operate and comes with an intuitive, color LCD screen.
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 2.2 kVA |
| Output power | 1980 W |
| Waveform | Pure sine |
| Input operation voltage (max) | 278 V |
| Input frequency | 55/65 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Country of origin | China |
| Ports & interfaces | |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 7 AC outlet(s) |
| Design | |
| Form factor | Rackmount/Tower |
| Rack capacity | 2U |
| Product colour | Black |
| Display type | LCD |
| Safety | EN60020-1:2008+A1:2013 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 438 mm |
| Depth | 630 mm |
| Height | 88 mm |
| Weight | 27 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Warranty | |
| Base Warranty | Non Non |
