Product Information

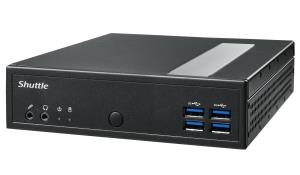

The Shuttle XPC slim Barebone DL30N series is the successor to Shuttle's DL20N series. These fanless Slim PC barebones with an energy-efficient Intel 12th-Gen "Alder Lake-N" processor are suitable for building particularly slim PC systems with drives and operating system as well as client/server setups for pure network-based applications. Two Intel 2.5G LAN ports provide excellent network connectivity and the optional Shuttle accessory WWN03 allows for an LTE module to be installed for mobile internet access. The integrated graphics is based on Intel's powerful Intel UHD Graphics that supports hardware acceleration for 4K videos. Combined with an SSD drive, these Slim-PCs works virtually noiseless.
Processor | |
Processor manufacturer | Intel |
Processor model | N100 |
Processor cores | 4 |
Processor threads | 4 |
Processor boost frequency | 3.4 GHz |
Built-in processor | Yes |
Processor cache | 6 MB |
Thermal Design Power (TDP) | 6 W |
ECC supported by processor | No |
Memory | |
Memory slots type | SO-DIMM |
Number of memory slots | 1 |
Maximum internal memory | 16 GB |
Supported memory clock speeds | 4800 MHz |
Supported memory types | DDR5-SDRAM |
Memory channels | Single-channel |
Memory voltage | 1.1 V |
ECC | No |
Non-ECC | Yes |
Storage | |
Supported storage drive types | HDD & SSD |
Storage drive sizes supported | 2.5,M.2 |
Storage drive interface | PCI Express, Serial ATA III |
NVMe | Yes |
Number of storage drives supported | 2 |
Card reader integrated | No |
Graphics | |
On-board graphics card | Yes |
Graphics card family | Intel |
On-board graphics card model | Intel© UHD Graphics |
Discrete graphics card model | Not available |
Maximum resolution | 4096 x 2160 pixels |
Number of displays supported | 3 |
Audio | |
Built-in speaker(s) | No |
Network | |
Ethernet LAN | Yes |
Wi-Fi | No |
LAN controller | Intel I226-LM |
Ports & interfaces | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
HDMI ports quantity | 1 |
HDMI version | 2.0b |
VGA (D-Sub) ports quantity | 1 |
DisplayPorts quantity | 1 |
DisplayPort version | 1.4a |
Microphone in | Yes |
Headphone outputs | 1 |
Ethernet LAN (RJ-45) ports | 2 |
Serial ports quantity | 2 |
DC-in jack | Yes |
Design | |
Chassis type | 1.35L sized PC |
Product colour | Black |
Cooling type | Passive |
On/off switch | Yes |
LED indicators | HDD, Power |
Housing material | Steel |
Cable lock slot | Yes |
Cable lock slot type | Kensington |
VESA mounting | Yes |
Panel mounting interface | 100 x 75 mm |
Product type | Mini PC barebone |
Performance | |
Number of processors supported | 1 |
BIOS type | UEFI AMI |
Trusted Platform Module (TPM) | Yes |
Trusted Platform Module (TPM) version | 2.0 |
Audio chip | Realtek ALC888S |
Technical details | |
Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI |
Logistics data | |
Harmonized System (HS) code | 84733080 |
Software | |
Windows operating systems supported | Windows 10, Windows 11 x64 |
Linux operating systems supported | Yes |
Operating system installed | No |
Sustainability | |
Sustainability compliance | Yes |
Sustainability certificates | ENERGY STAR, ErP |
Power | |
Power supply type | External AC adapter |
Power supply | 65 W |
Number of power supply units | 1 |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
AC adapter output voltage | 19 V |
AC adapter output current | 3.42 A |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 øC |
Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions | |
Width | 165 mm |
Depth | 190 mm |
Height | 43 mm |
Weight | 800 g |
Package weight | 2.1 kg |
Packaging content | |
Power cord included | Yes |
AC adapter included | Yes |
Quick start guide | Yes |
Drivers included | Yes |
Warranty | |
Base Warranty | Non Non |
