Product Information

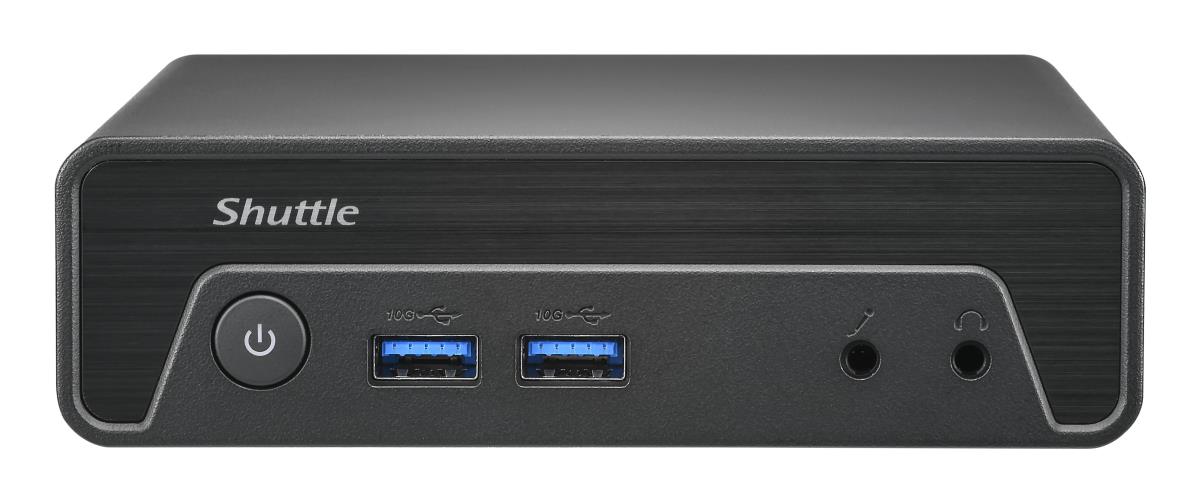

The fanless Shuttle XPC nano Barebone NE10N comes with powerful and efficient 12th generation Intel N100 processor, codenamed "Alder Lake-N". Despite the nano format with only 600 ml volume, it offers enormous connection variety and expansion options. Thus, up to two UHD displays (4K/60Hz) and up to six USB devices can be connected, and one M.2-2280 NVMe SSD card and one DDR4 module can be installed. The NE10N is ideal for Digital Signage, POS, control, office or even multimedia.
Processor | |
Processor manufacturer | Intel |
Processor model | N100 |
Processor cores | 4 |
Processor threads | 4 |
Processor boost frequency | 3.4 GHz |
Built-in processor | Yes |
Processor cache | 6 MB |
Memory | |
Memory slots type | SO-DIMM |
Number of memory slots | 1 |
Maximum internal memory | 16 GB |
Supported memory clock speeds | 3200 MHz |
Supported memory types | DDR4-SDRAM |
Memory channels | Single-channel |
Memory voltage | 1.2 V |
ECC | No |
Non-ECC | Yes |
Storage | |
Supported storage drive types | SSD |
Storage drive sizes supported | M.2 |
SSD form factor | M.2 |
Storage drive interface | PCI Express, Serial ATA |
Card reader integrated | No |
Graphics | |
On-board graphics card | Yes |
Graphics card family | Intel |
On-board graphics card model | Intel© UHD Graphics |
Audio | |
Built-in speaker(s) | No |
Network | |
Ethernet LAN | Yes |
Wi-Fi | No |
Ports & interfaces | |
USB 2.0 ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
HDMI ports quantity | 1 |
HDMI version | 2.0 |
DisplayPorts quantity | 1 |
DisplayPort version | 1.4 |
Microphone in | Yes |
Headphone outputs | 1 |
Ethernet LAN (RJ-45) ports | 1 |
DC-in jack | Yes |
Design | |
Chassis type | 0.6L sized PC |
Product colour | Black |
Cooling type | Passive |
LED indicators | Yes |
Housing material | Plastic |
Cable lock slot | Yes |
Cable lock slot type | Kensington |
VESA mounting | Yes |
Panel mounting interface | 75 x 75,100 x 100 mm |
Product type | Mini PC barebone |
Performance | |
Motherboard chipset | Intel SoC |
Number of processors supported | 1 |
BIOS type | EFI AMI |
Trusted Platform Module (TPM) | Yes |
Trusted Platform Module (TPM) version | 2.0 |
Audio chip | Senary SN6141 |
Technical details | |
Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI |
Logistics data | |
Harmonized System (HS) code | 84733080 |
Software | |
Windows operating systems supported | Windows 11 |
Linux operating systems supported | Yes |
Sustainability | |
Sustainability certificates | ENERGY STAR, ErP |
Power | |
Power supply type | External AC adapter |
Power supply | 65 W |
Number of power supply units | 1 |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
AC adapter output voltage | 19 V |
AC adapter output current | 3.42 A |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 øC |
Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions | |
Width | 135 mm |
Depth | 115 mm |
Height | 39 mm |
Weight | 600 g |
Package weight | 1.5 kg |
Packaging content | |
Power cord included | Yes |
AC adapter included | Yes |
Quick start guide | Yes |
Drivers included | Yes |
Warranty | |
Base Warranty | Non Non |
