XPC slim - DL3000EP - N100 - 8GB Ram - 128GB SSD - Win10 IoT LTSC
ITCurry #: 88702873 | Article #: DL3000XA-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

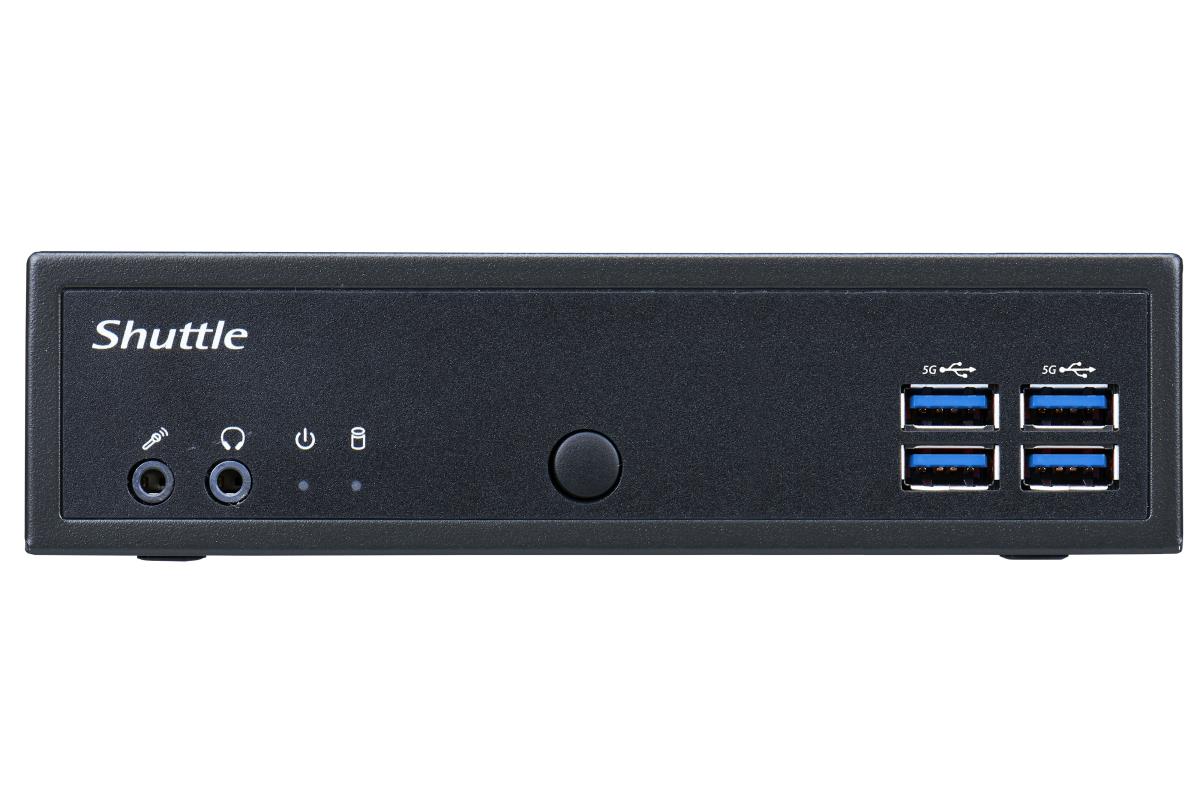

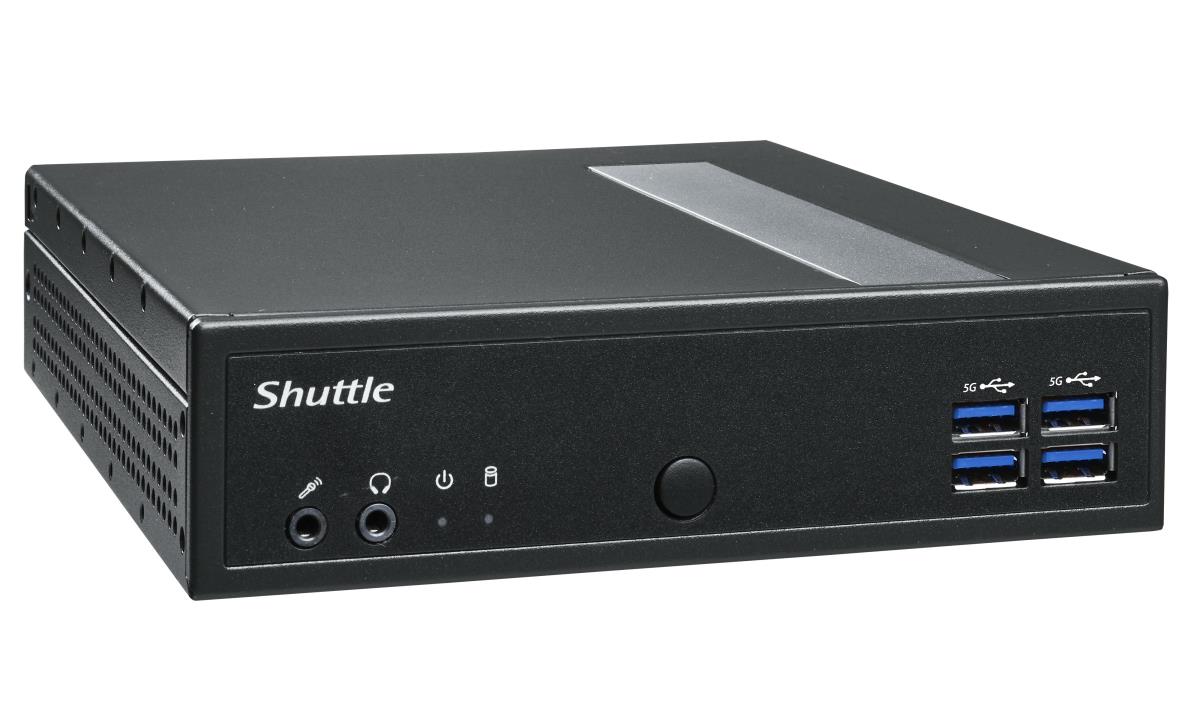

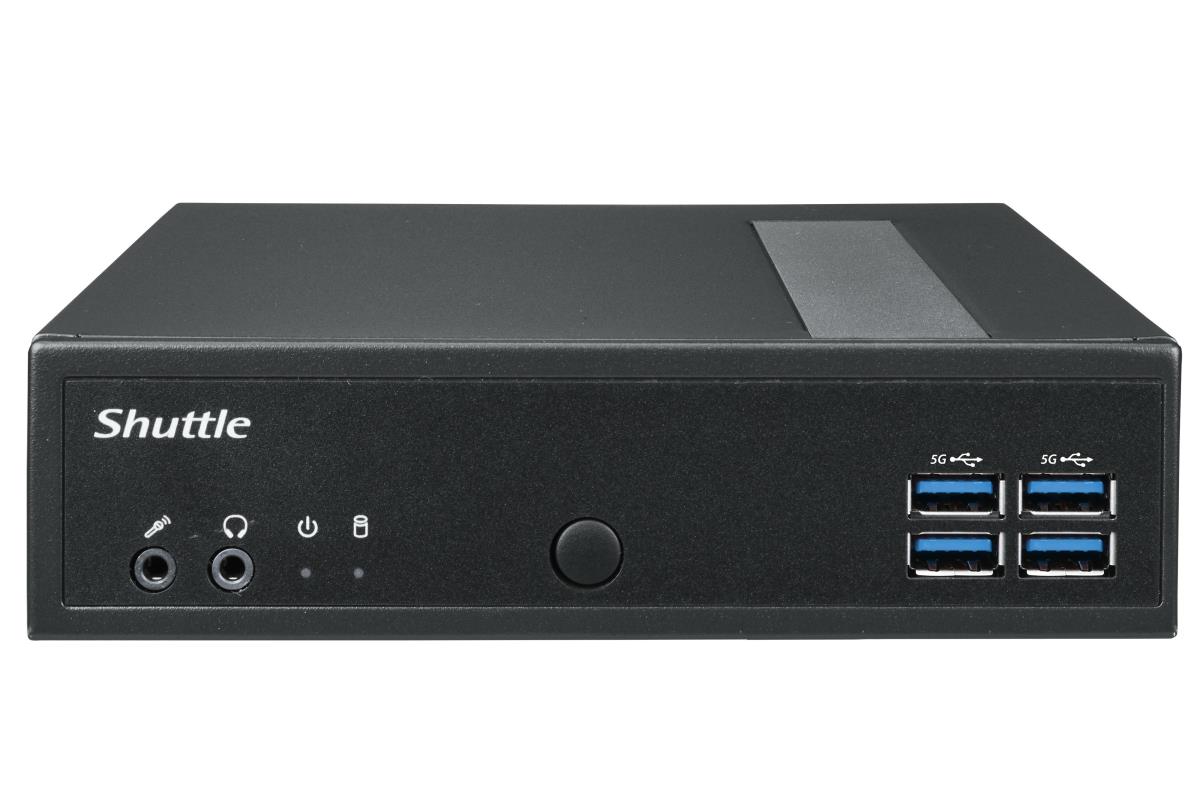

The Shuttle XPC slim Barebone DL30N series is the successor to Shuttle's DL20N series. These fanless Slim PC barebones with an energy-efficient Intel 12th-Gen "Alder Lake-N" processor are suitable for building particularly slim PC systems with drives and operating system as well as client/server setups for pure network-based applications. Two Intel 2.5G LAN ports provide excellent network connectivity and the optional Shuttle accessory WWN03 allows for an LTE module to be installed for mobile internet access. The integrated graphics is based on Intel's powerful Intel UHD Graphics that supports hardware acceleration for 4K videos. Combined with an SSD drive, these Slim-PCs works virtually noiseless.
Processor | |
Processor manufacturer | Intel |
Processor family | Intel© N |
Processor model | N100 |
Processor cores | 4 |
Processor threads | 4 |
Processor boost frequency | 3.4 GHz |
Processor cache | 6 MB |
Processor cache type | Smart Cache |
Memory | |
Internal memory | 8 GB |
Maximum internal memory | 16 GB |
Internal memory type | DDR5-SDRAM |
Memory layout (slots x size) | 1 x 8 GB |
Memory slots | 1x SO-DIMM |
Memory clock speed | 4800 MHz |
Memory channels | Single-channel |
Storage | |
Total storage capacity | 128 GB |
Storage media | SSD |
Optical drive type | No |
Number of storage drives installed | 1 |
Total SSDs capacity | 128 GB |
Number of SSDs installed | 1 |
SSD capacity | 128 GB |
SSD form factor | M.2 |
Graphics | |
On-board graphics card | Yes |
Discrete graphics card model | Not available |
On-board GPU manufacturer | Intel |
On-board graphics card family | Intel© UHD Graphics |
On-board graphics card model | Intel© UHD Graphics |
Network | |
Ethernet LAN | Yes |
Ethernet LAN data rates | 100,1000,2500 Mbit/s |
LAN controller | Intel I226-LM |
Wi-Fi | No |

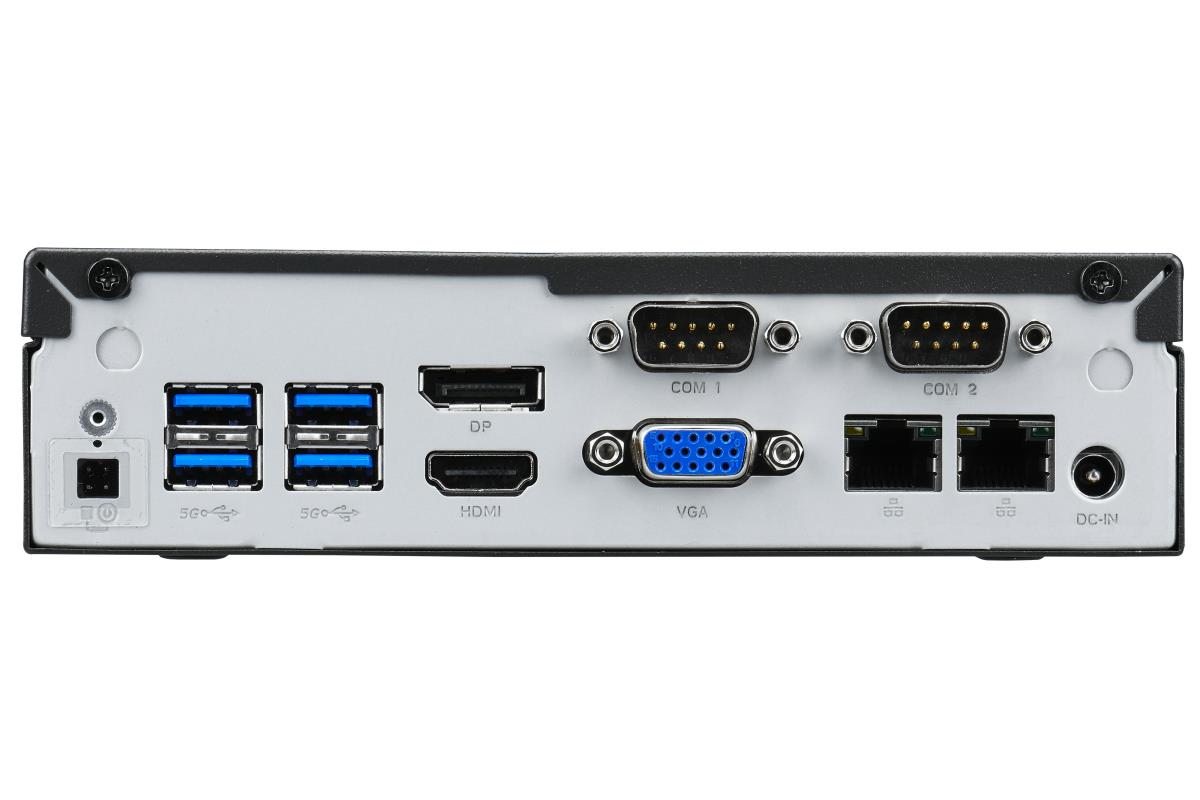

Ports & interfaces | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
VGA (D-Sub) ports quantity | 1 |
HDMI ports quantity | 1 |
HDMI version | 2.0b |
DisplayPorts quantity | 1 |
DisplayPort version | 1.4a |
Ethernet LAN (RJ-45) ports | 2 |
Microphone in | Yes |
Headphone outputs | 1 |
DC-in jack | Yes |
Serial ports quantity | 2 |
Design | |
Chassis type | Slim PC |
Volume | 1.35 L |
Cable lock slot | Yes |
Cable lock slot type | Kensington |
Product colour | Black |
Housing material | Steel |
Viewing window | No |
Performance | |
Market positioning | Business |
Audio chip | RealTek ALC888S |
Password protection | Yes |
BIOS type | UEFI AMI |
Trusted Platform Module (TPM) | Yes |
Trusted Platform Module (TPM) version | 2.0 |
Product type | Mini PC |
Software | |
Operating system installed | No |
Drivers included | Yes |
Power | |
Power supply | 65 W |
Power supply input voltage | 100 - 240 V |
Power supply input frequency | 50/60 Hz |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 øC |
Operating relative humidity (H-H) | 10 - 90% |
Certificates | |
Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), RCM, RoHS, UKCA, VCCI |
Sustainability | |
Sustainability compliance | Yes |
Sustainability certificates | ENERGY STAR, ErP |
Weight & dimensions | |
Width | 165 mm |
Depth | 190 mm |
Height | 43 mm |
Weight | 800 g |
Package weight | 2.1 kg |
Packaging content | |
Display included | No |
Cables included | AC |
VESA mount included | Yes |
Screws included | Yes |
Logistics data | |
Harmonized System (HS) code | 84714900 |
Other features | |
Fanless | Yes |
Warranty | |
Base Warranty | Non Non |
