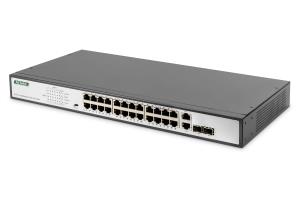

Ds-3e1326p-ei(b) 24 Port Fast Ethernet Smart Poe Switch
ITCurry #: T4498323 | Article #: 301803157Flash Sale
Less than 5 units remaining
Less than 10 units remaining
Less than 20 units remaining
More than 20 units are available
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} days remaining
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} day remaining
Price:
239.19
Inc VAT
Ex VAT
Shipping:
Delivery in 3 days
Quantity:
Key Specifications
-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Inc VAT
Ex VAT
Delivery in 3 days
Inc VAT
Ex VAT
Delivery in 3 days
Inc VAT
Ex VAT
Delivery in 3 days
Inc VAT
Ex VAT
Delivery in 3 days
Related products
Product Information
| Management features | |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Combo SFP ports quantity | 2 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Full duplex | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Data transmission | |
| Switching capacity | 14.8 Gbit/s |
| Forwarding rate | 11.01 Mpps |
| MAC address table | 16000 entries |
| Store-and-forward | Yes |
| Packet buffer memory | 4 MB |
| Security | |
| DHCP features | DHCP client |
| Loop protection | Yes |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Blue |
| Housing material | Metal |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| Input current | 6.5 A |
| Power consumption (max) | 400 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 221 mm |
| Height | 44 mm |
| Weight | 2.83 kg |
| Warranty | |
| Base Warranty | Non Non |
